⚙️ Basic Information
Model NO.:LU-LDD-100
Type:Compression Testing Machine
Accuracy Grade:Control Grade 0.1
Display:Pointer Pressure Gauge
Control:Drive Air Regulator
Weight:45kg
Origin:Jinan
HS Code:8413501090
Capacity:1000 pieces/Year
📘 Product Description

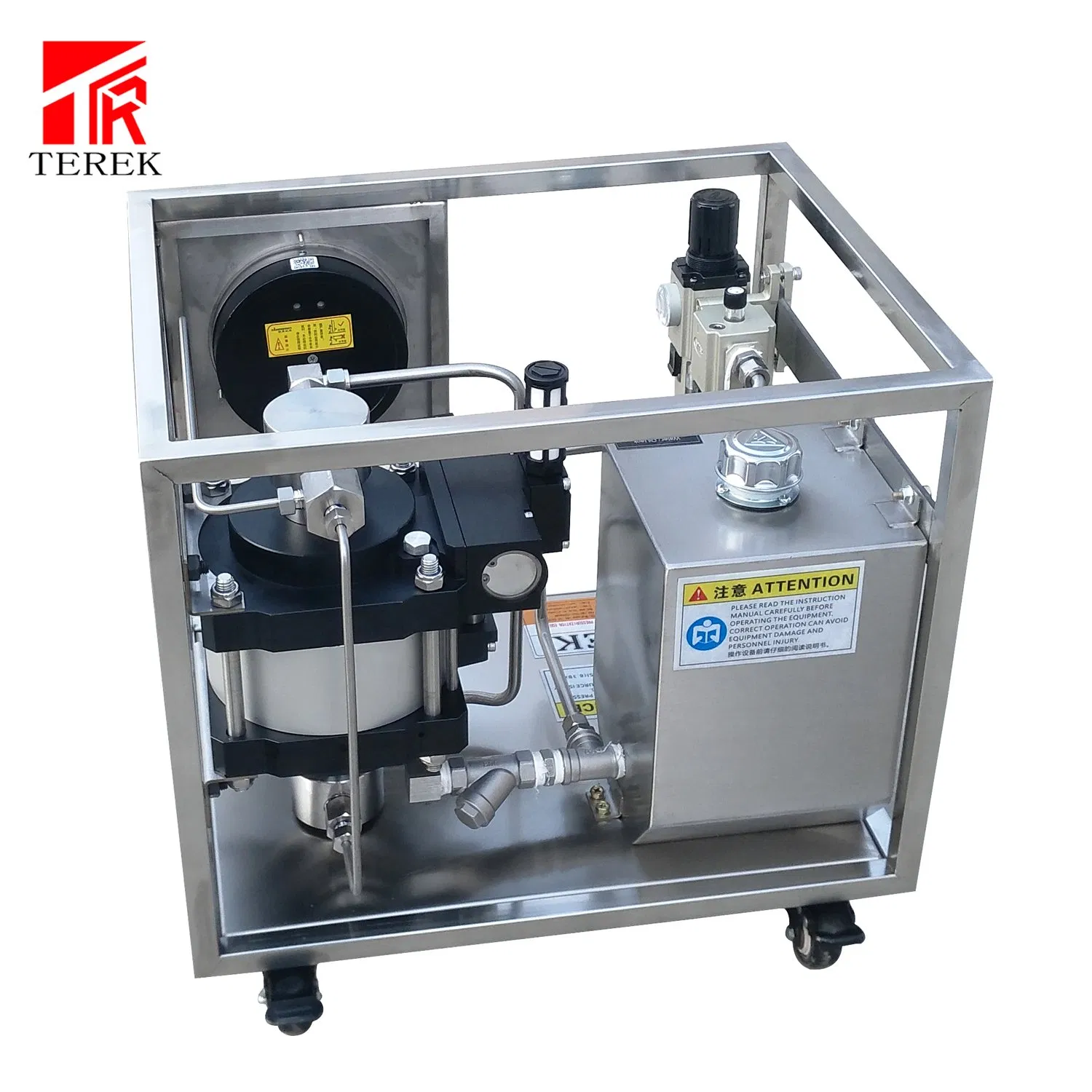

The pneumatic hydraulic test bench uses pure compressed air as the driving power source, liquid booster pump as the pressure source, and water, hydraulic oil and other liquid as the pressurized medium. The output pressure is proportional to the driving gas pressure. By adjusting the pressure of the driving gas source, the corresponding pressure of the pressurized liquid can be obtained. When the pressure of the driving source is balanced with that of the pressurized liquid, the pneumatic booster pump will automatically stop and the output liquid pressure is stabilized at the preset pressure.

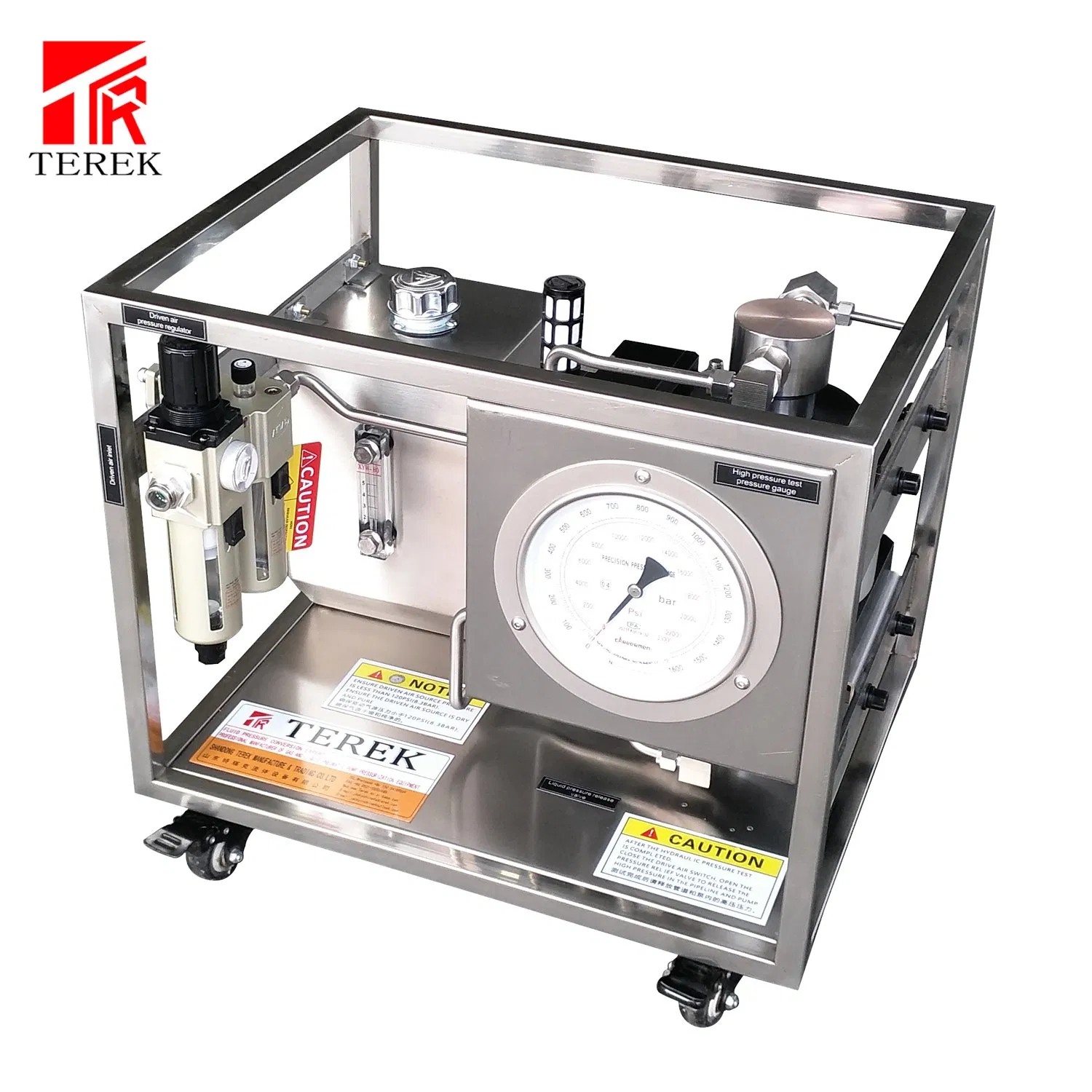

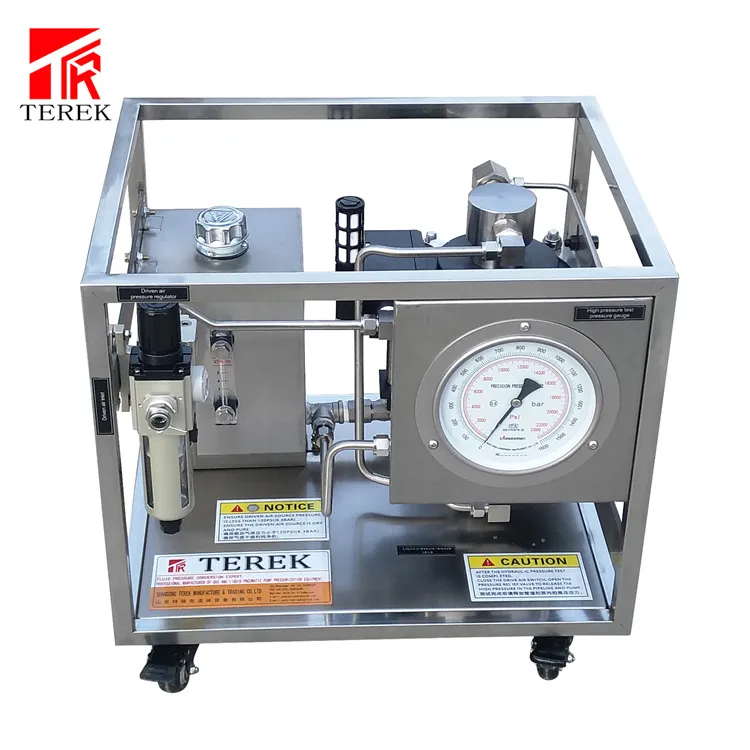

It features an explosion-proof design, energy saving, environmental protection, and adjustable output pressure. The equipment is assembled in a closed stainless steel cabinet or frame. The pressure gauge, valve, and pressure regulator are mounted on the panel with clear markings for easy operation.
📊 Product Parameters
Pumps feature a large air piston joint to a smaller diameter piston. The pressure ratio determines the maximum outlet pressure. The outlet pressure is easily set through a simple regulator. Principle of operation is similar to a reciprocating amplifier.
| Product Name | Pneumatic liquid booster pump hydrostatic pressure testing bench |
| Model | LU-LDD-100 |
| Pressure Ratio | 100:1 |
| Medium | Hydraulic oil or water |
| Drive Air Source Pressure | 3-8 bar |
| Maximum Liquid Outlet Pressure | 800 bar / 11600 psi |
| Pressure Control Accuracy | Less than 1% F.S |
| Pressure Measurement Accuracy | ±0.4% FS pressure gauge |
| Material Frame | 304 Stainless steel frame |
| Equipment Dimension | 500*370*520 mm |
| Connection Size | NPT 1/4 Internal Thread |

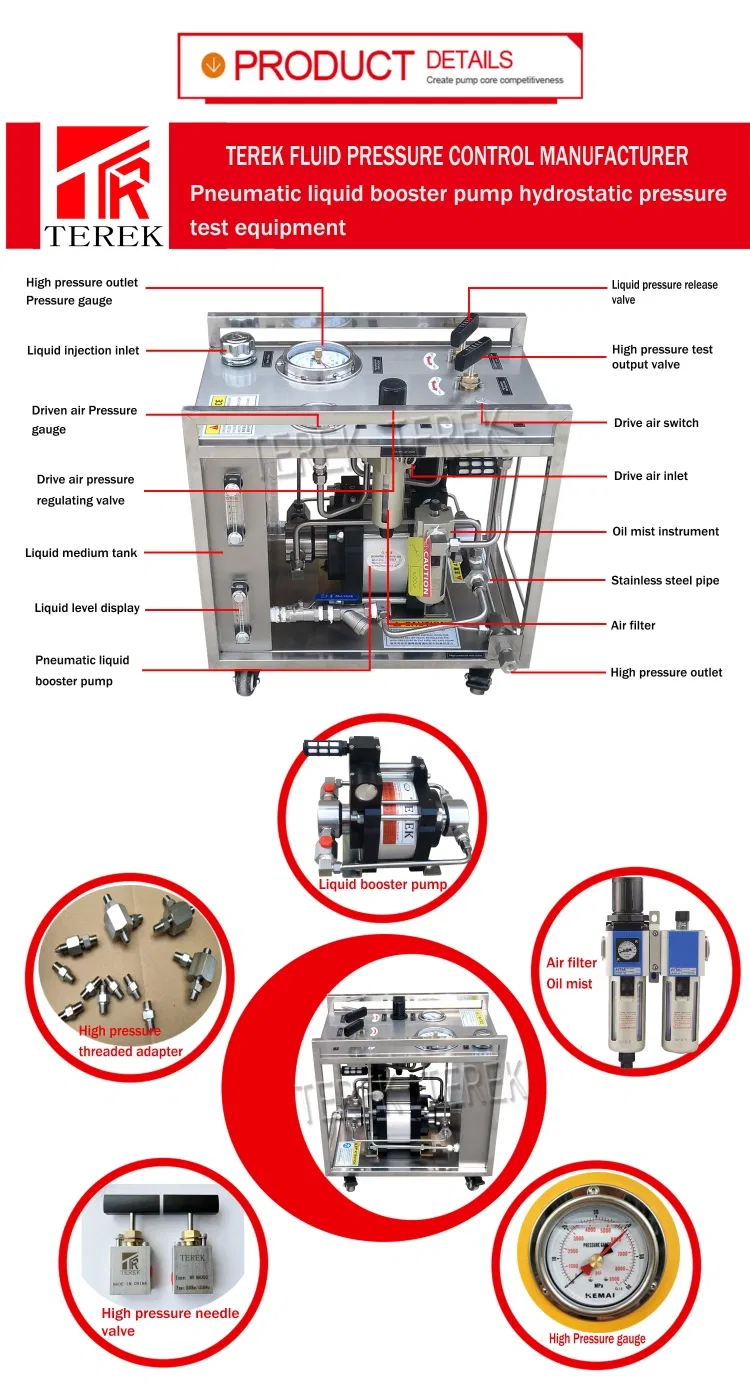

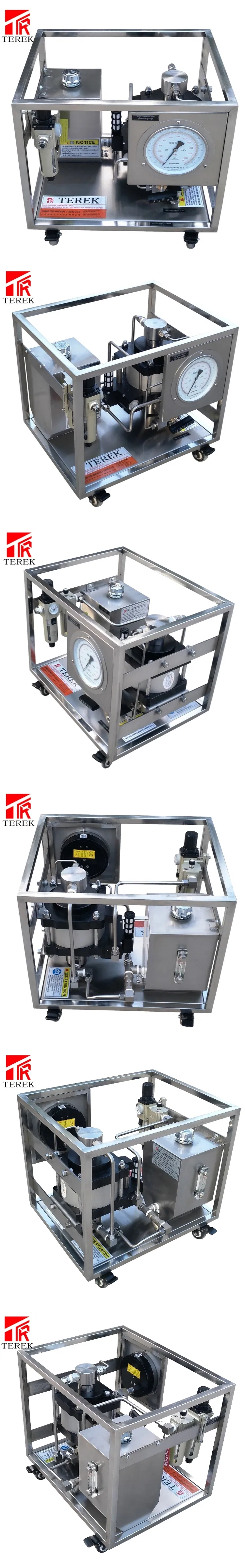

📸 Detailed Product Views

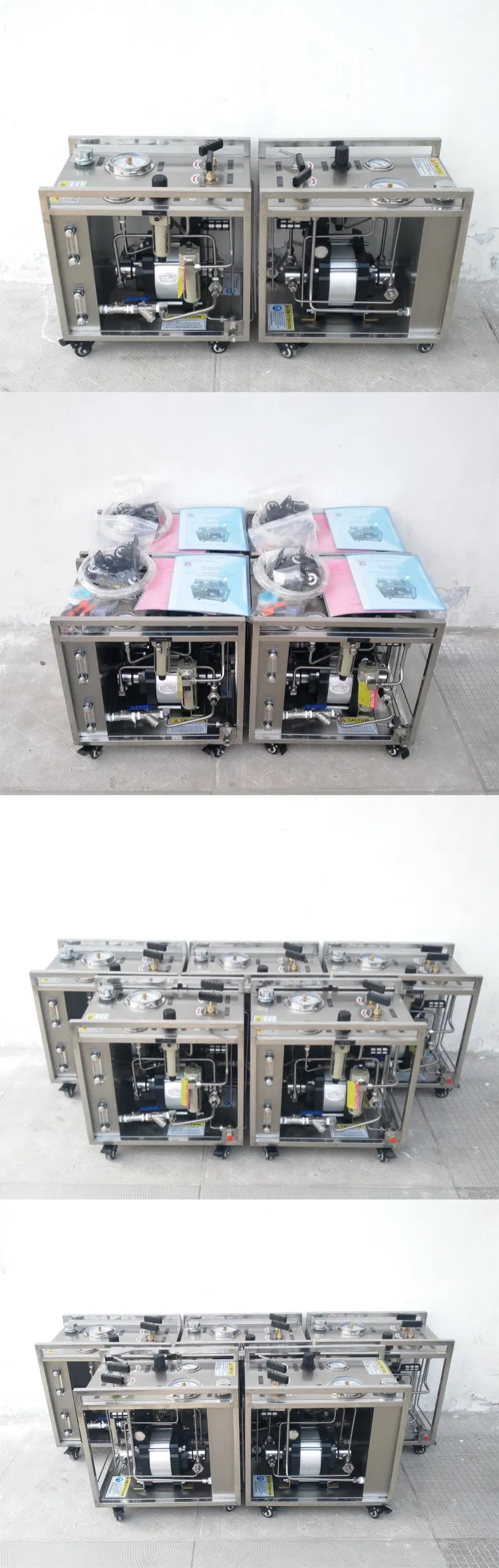

📦 Packaging Presentation

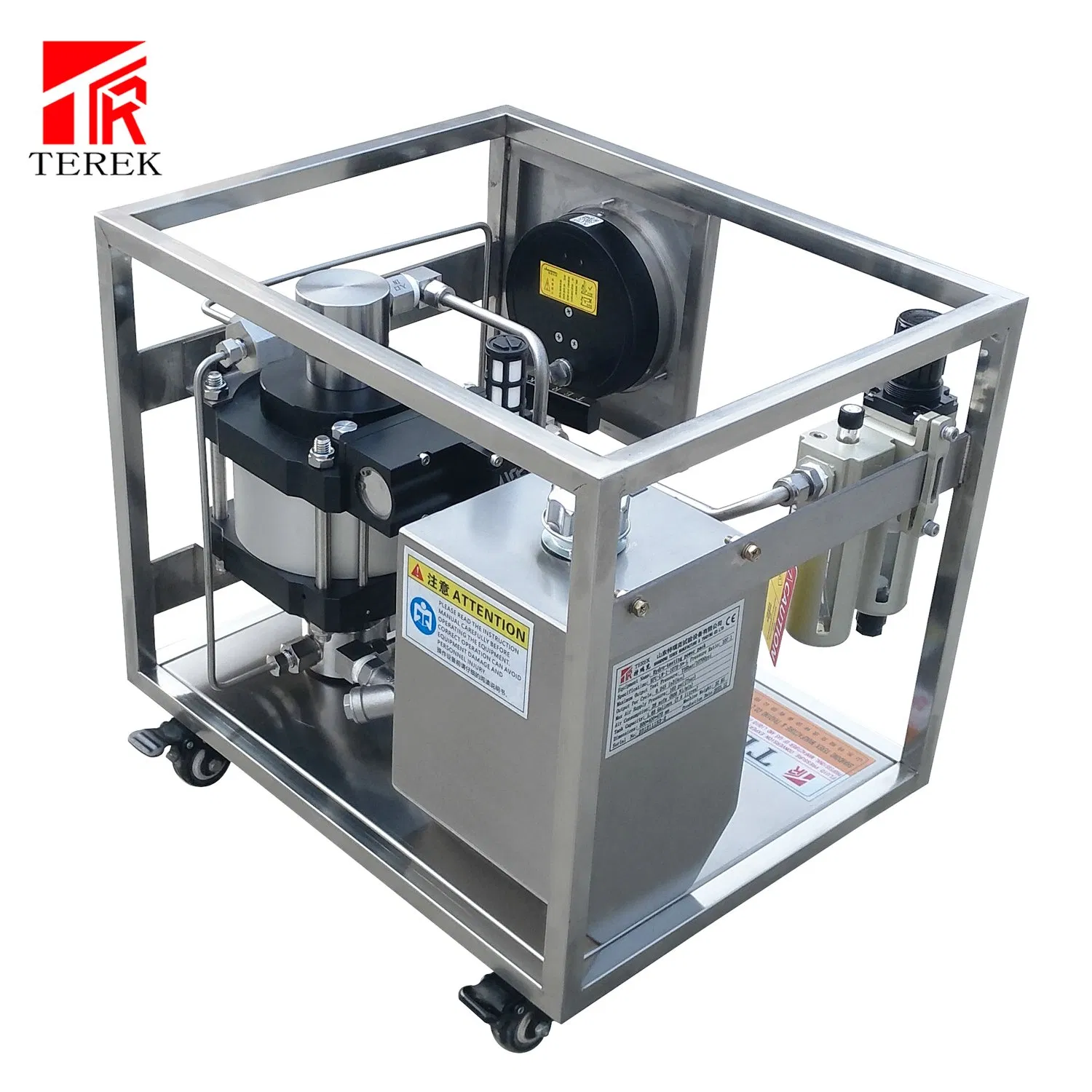

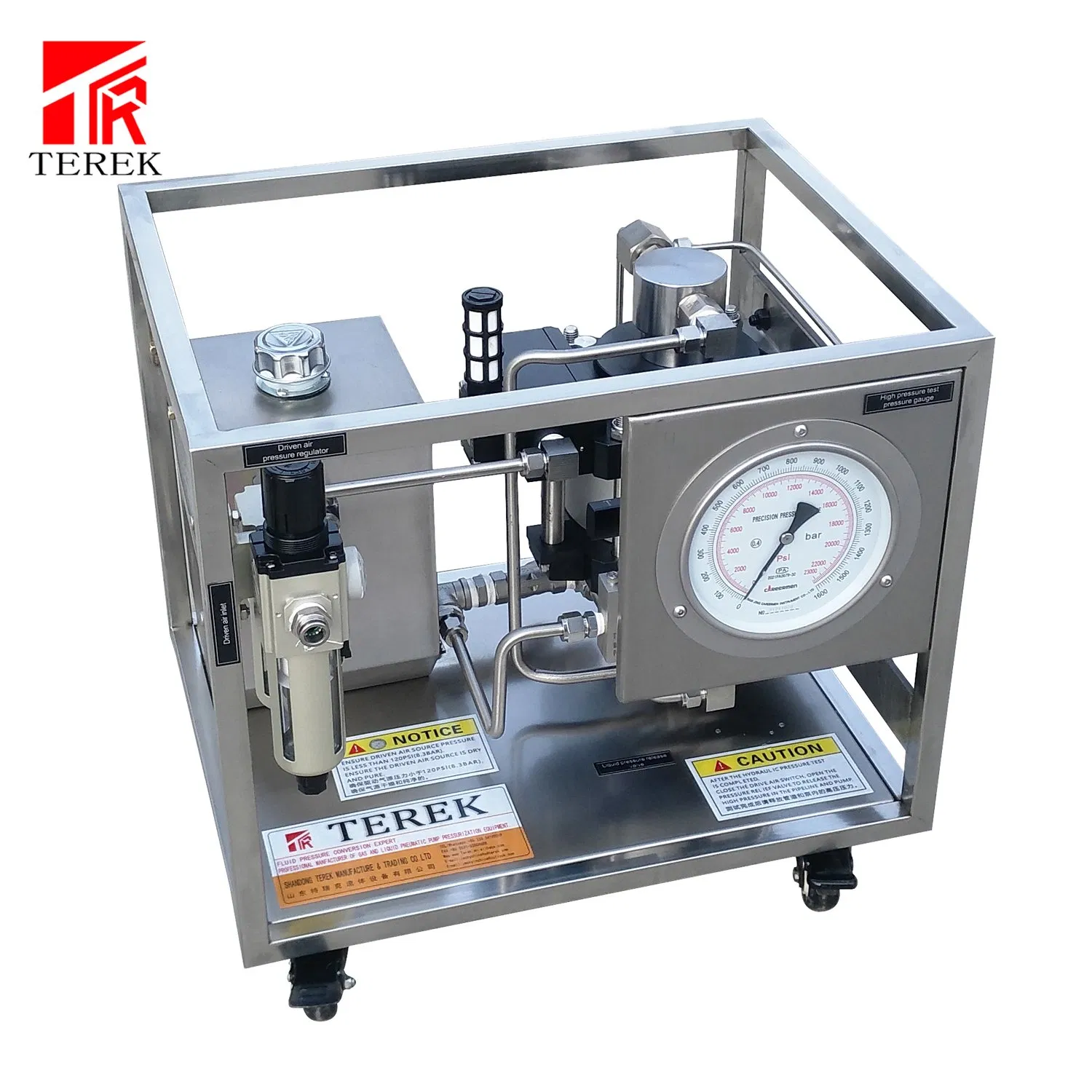

🛠️ System Configuration

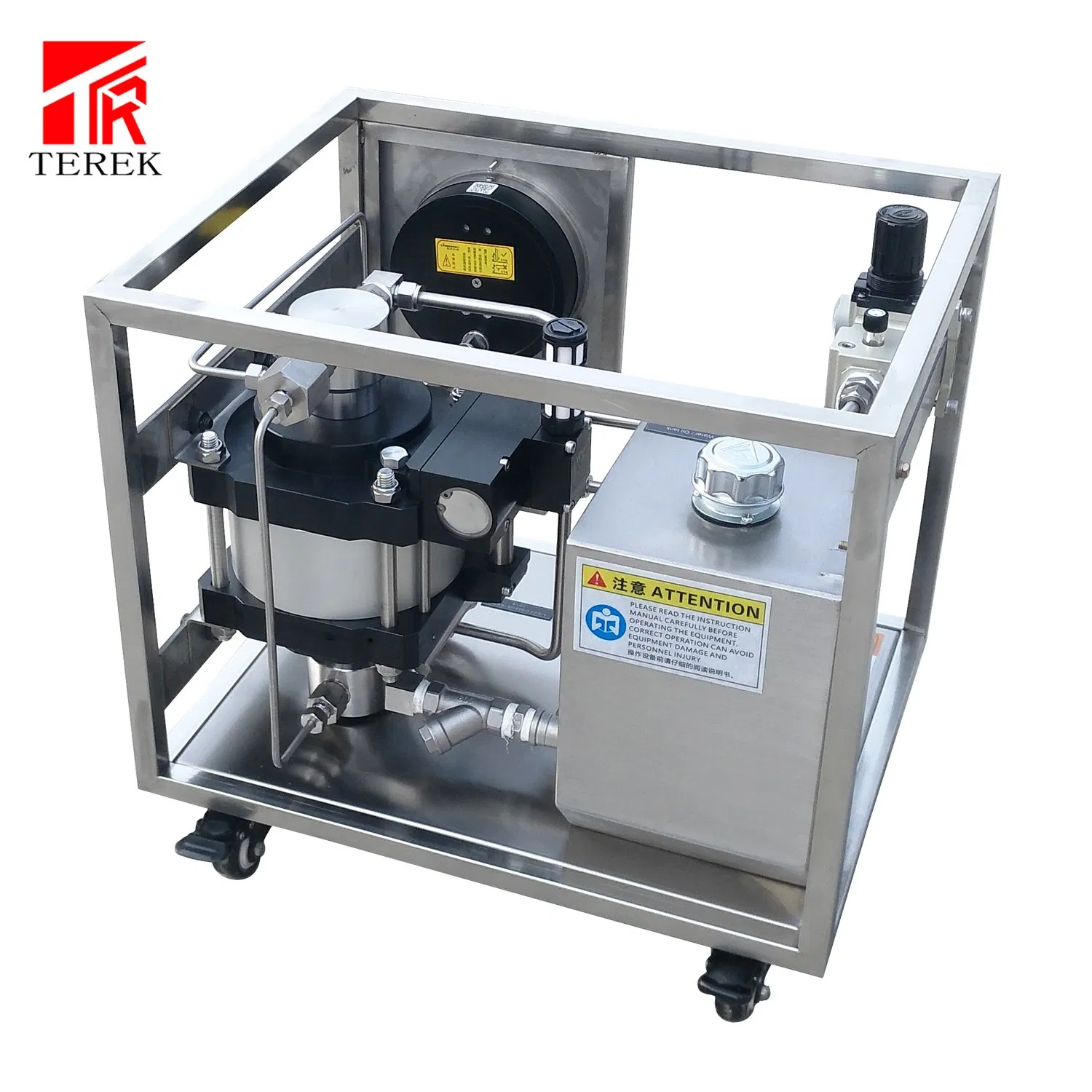

The liquid booster pump mainly consists of an air drive chamber, pressurizing chamber, auto reversing valve, inlet/outlet check valves, high-quality sealing parts, and a silencer. The hydraulic test bench system includes:
- Air driven liquid booster pump
- 15L water tank and liquid filter
- Precision pressure gauges
- Air regulating and control valves
- Closed stainless steel cabinet / 304 frame
✅ Product Advantages
Equipped with high-quality pneumatic liquid booster injection pump for adjustable flow and pressure.
Contact liquid section made of stainless steel for strong corrosion resistance.
Suitable for various wellhead pressure levels with integrated control functions.
No electricity required; air-driven for safe, explosion-proof operation.
Compact, lightweight, and reasonable structural design.
🚢 Packaging & Shipping

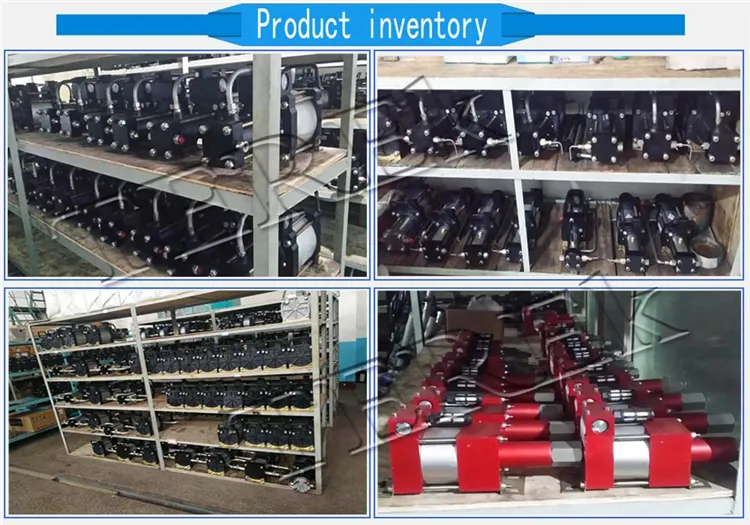

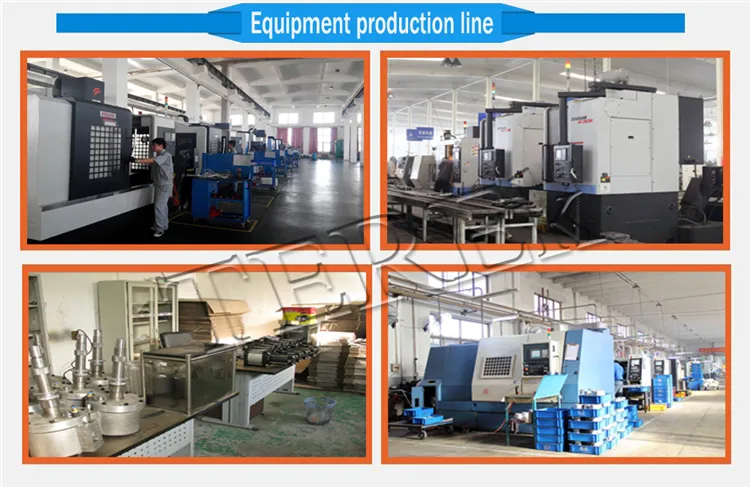

🏭 Workshop & Inventory
💡 Frequently Asked Questions
What power source does this test bench require?
The system uses pure compressed air as the driving power source (3-8 bar), meaning no electricity is required, making it safe and explosion-proof.
What is the maximum output pressure of the LU-LDD-100?
The maximum liquid outlet pressure can reach 800 bar (11,600 psi) depending on the drive air pressure settings.
Is the equipment resistant to corrosion?
Yes, the contact liquid section is made of high-grade stainless steel, providing strong resistance against corrosion from water and various chemical reagents.
Can the output pressure be adjusted?
Absolutely. The output liquid pressure is proportional to the driving air pressure. You can easily adjust it using the air pressure regulator valve on the control panel.
What types of liquids can be pressurized with this system?
The bench can pressurize most common liquids, including water, hydraulic oil, and various chemical fluids.
What kind of warranty is provided?
The equipment and all its accessories come with a one-year warranty, along with permanent technical advice and operation guidance.
