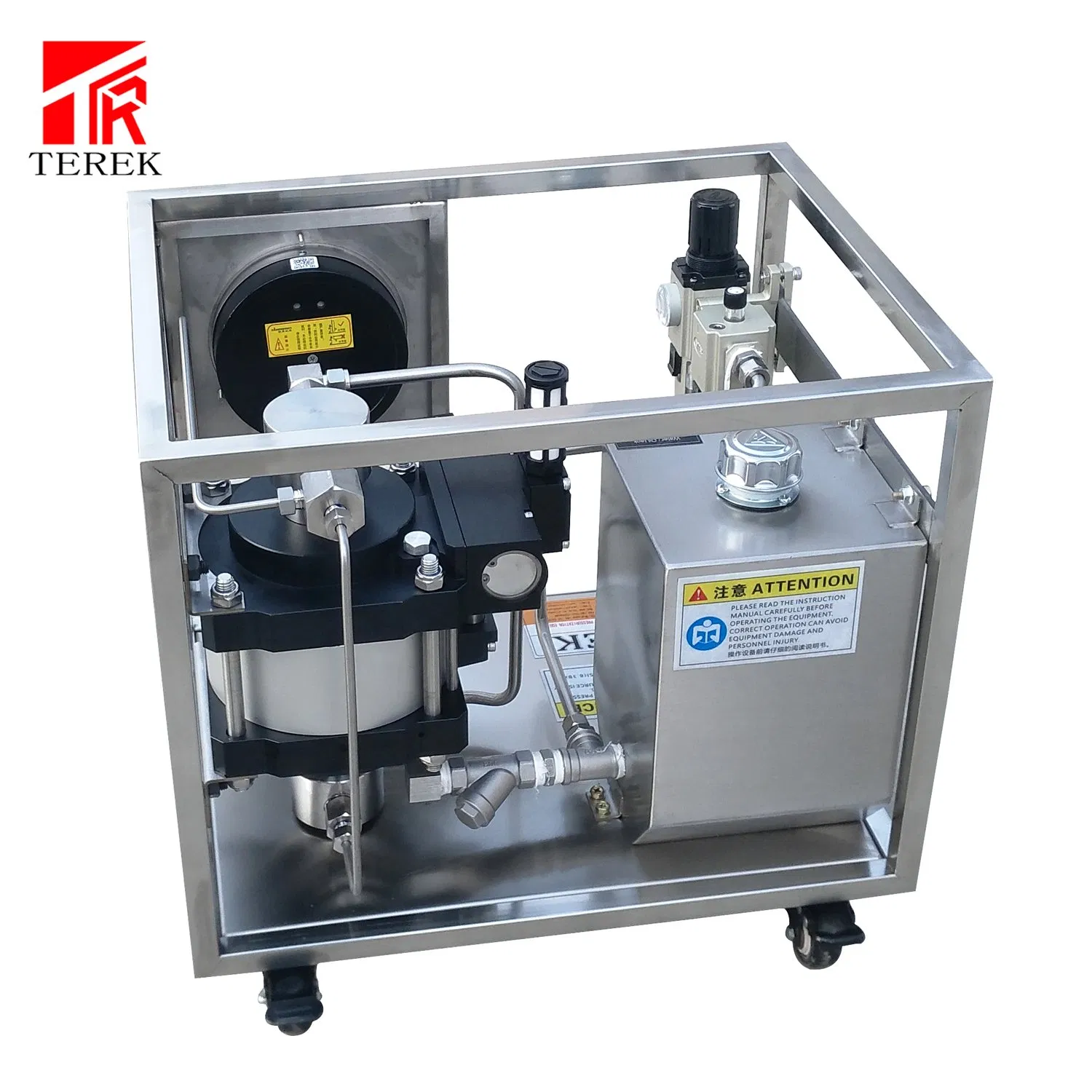

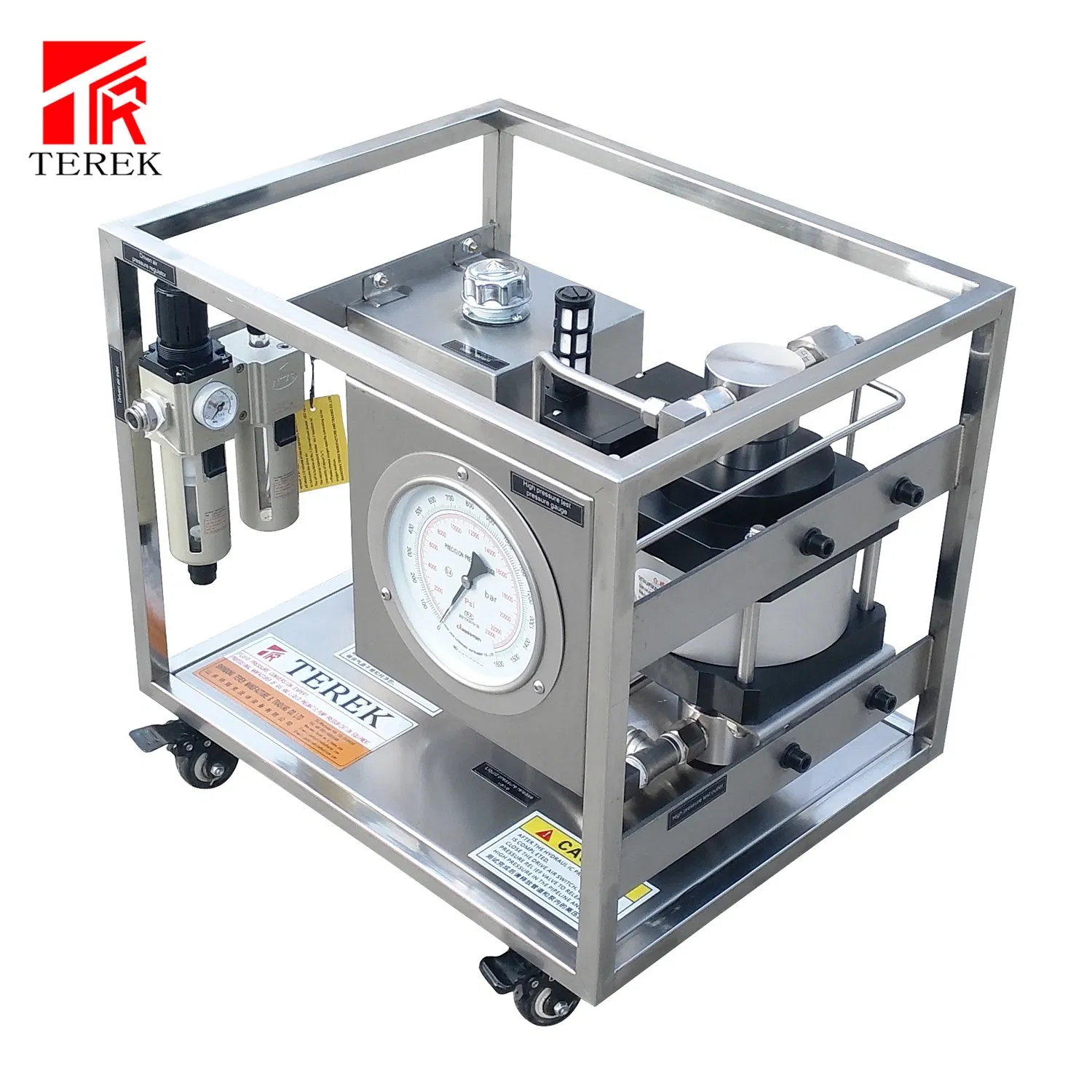

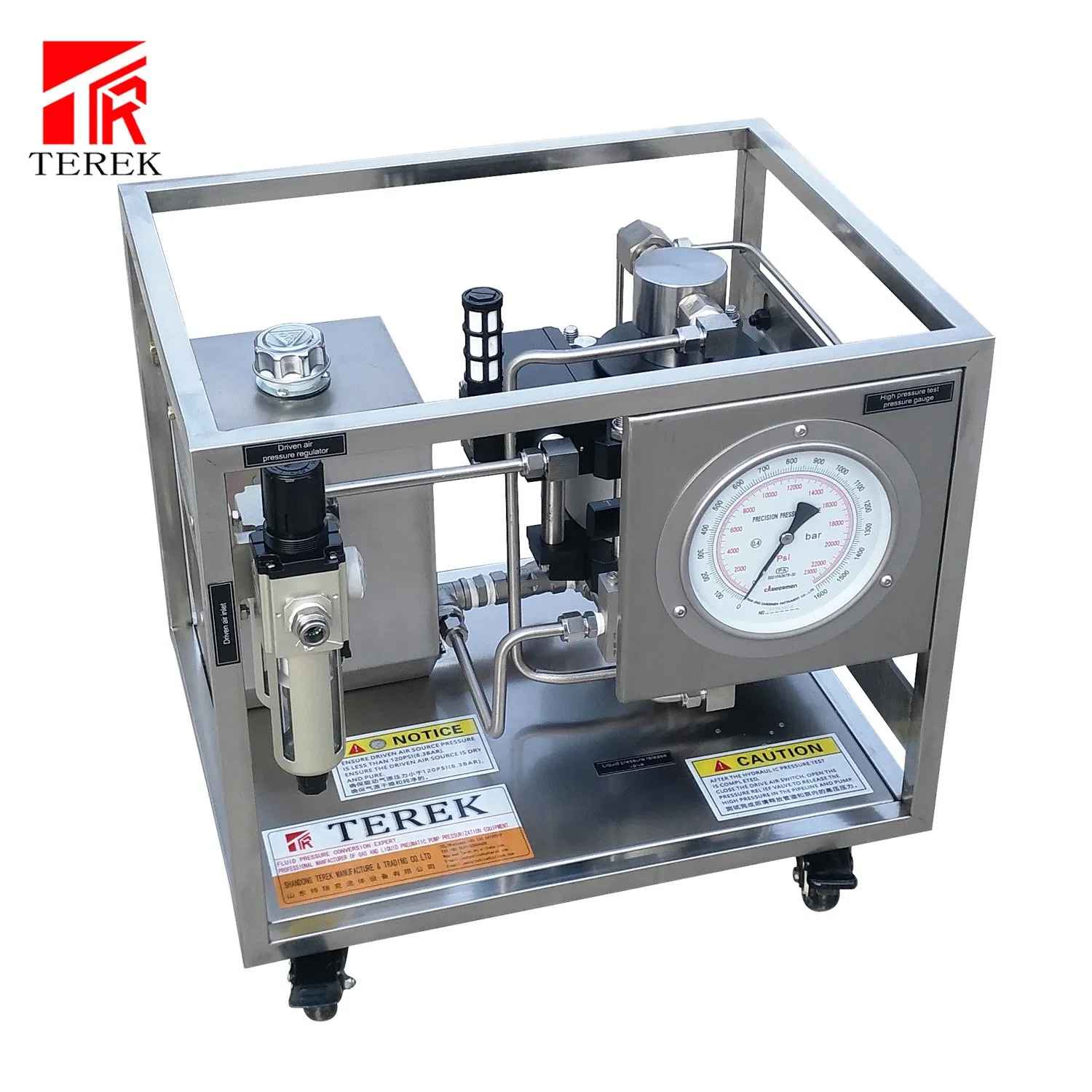

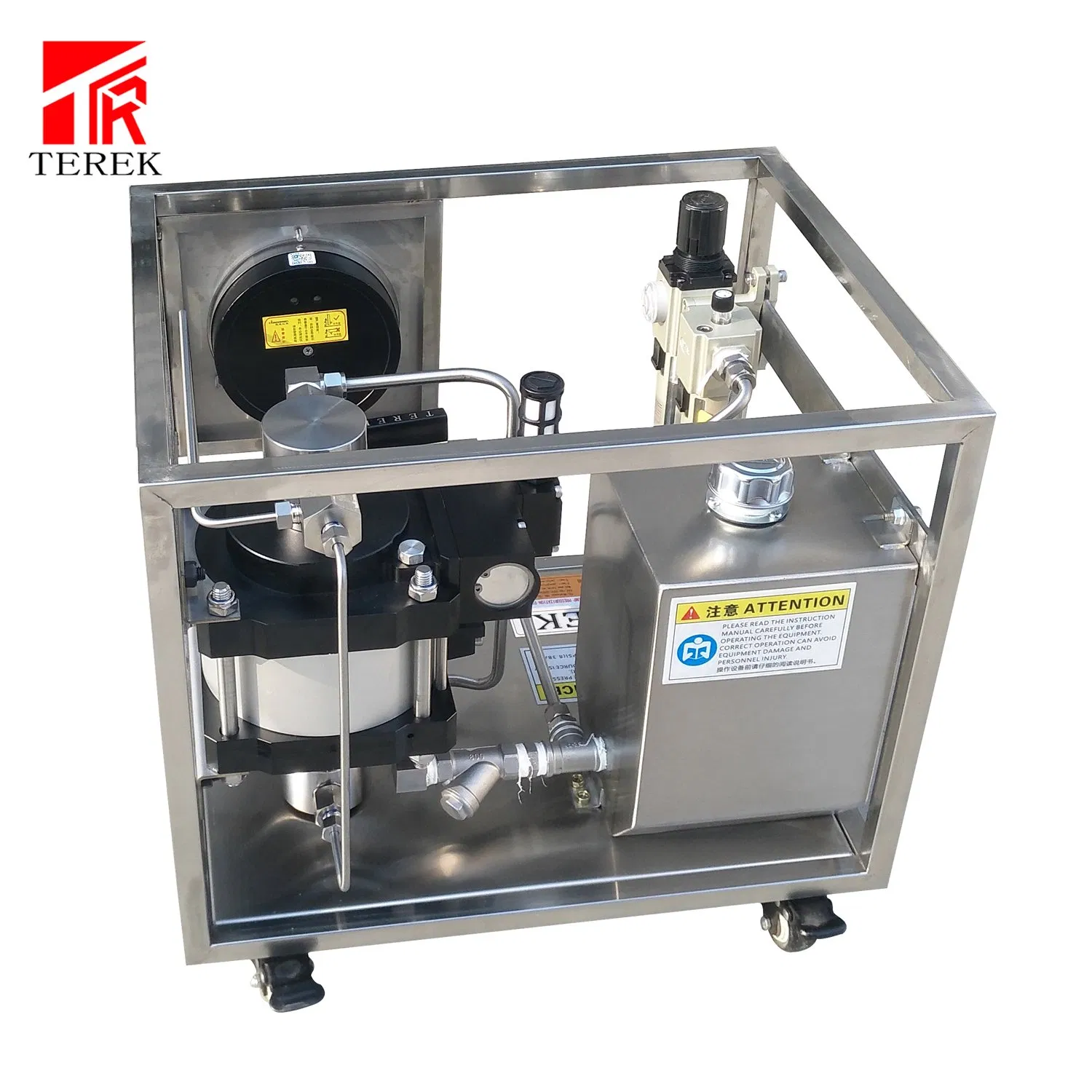

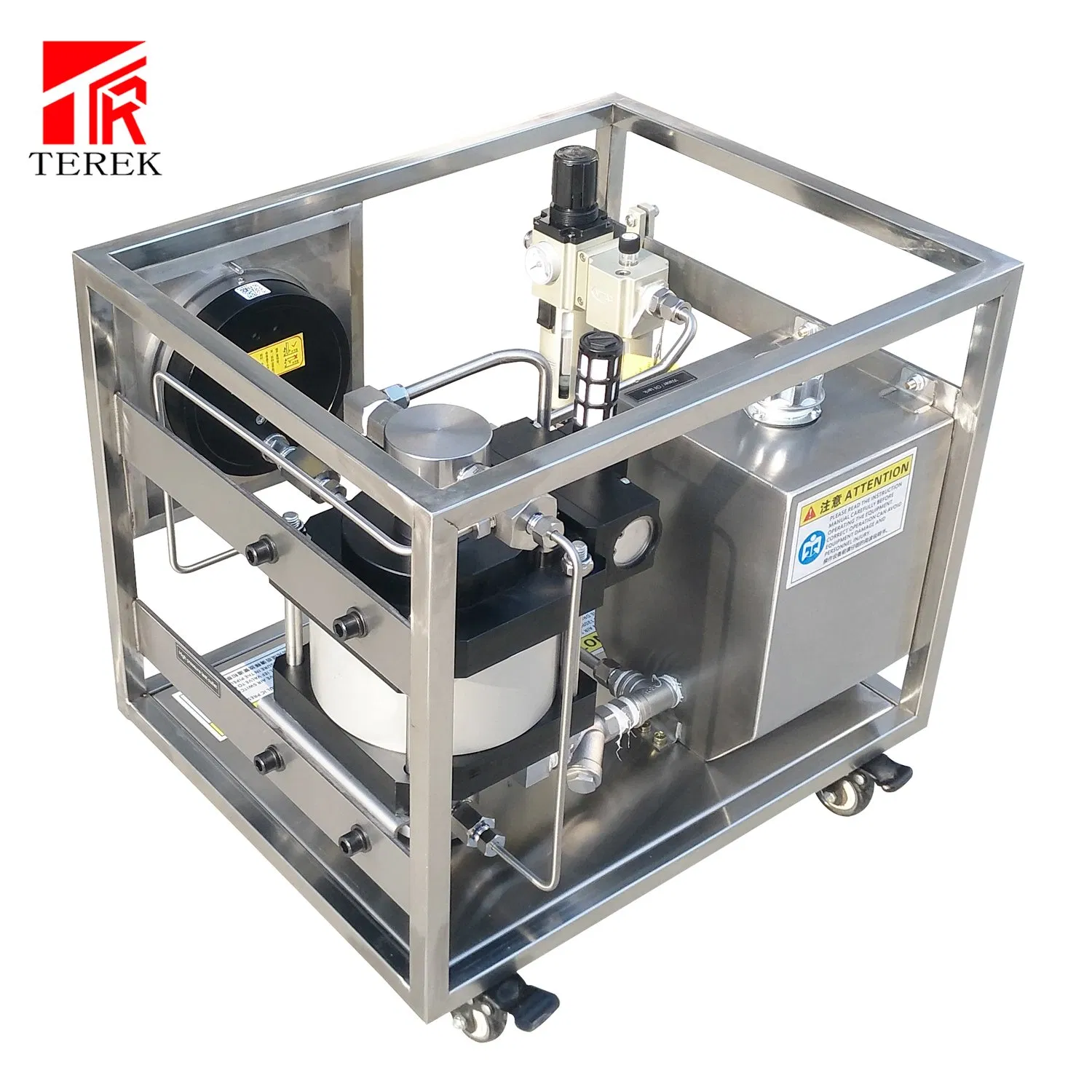

The Pneumatic hydraulic test bench uses pure compressed air as the driving power source, liquid booster pump as the pressure source, and water, hydraulic oil and other liquid as the pressurized medium. The output pressure is proportional to the driving gas pressure. By adjusting the pressure of the driving gas source, the corresponding pressure of the pressurized liquid can be obtained.
When the pressure of the driving source is balanced with that of the pressurized liquid, the pneumatic booster pump will automatically stop and the output liquid pressure is stabilized at the preset pressure. It features explosion-proof, energy saving, environmental protection, adjustable output pressure, small volume, and reliable performance.

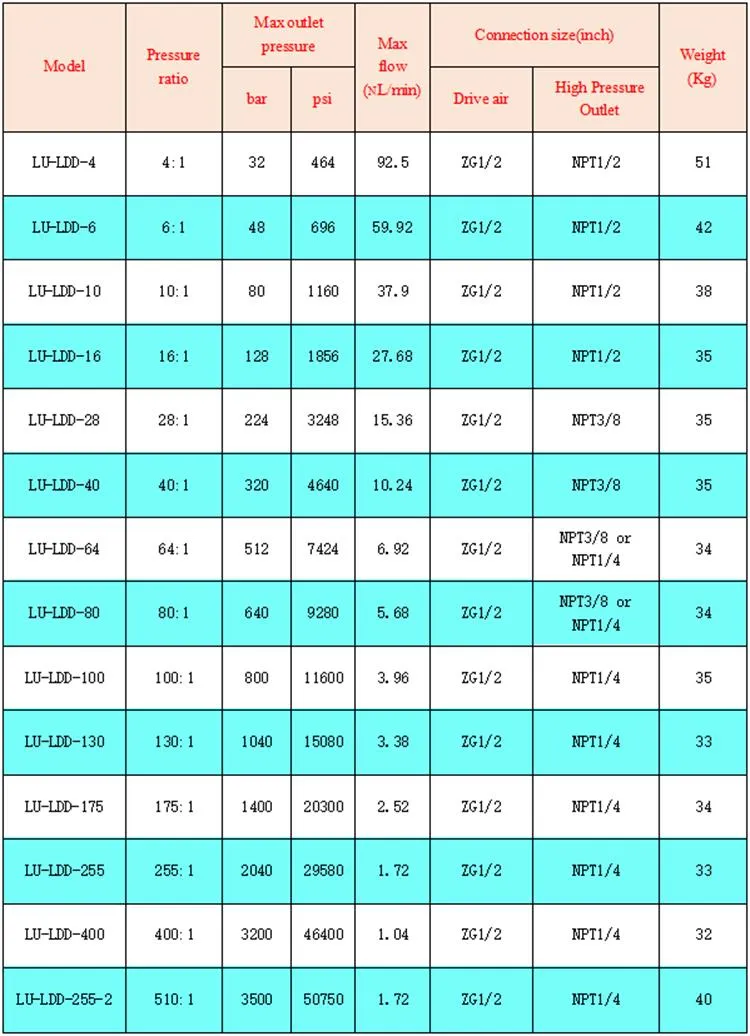

| Product Name | Pneumatic liquid booster pump hydrostatic pressure testing bench |
| Model | LU-LDD-100 |
| Pressure Ratio | 100:1 |
| Medium | Hydraulic oil or water |
| Drive Air Source Pressure | 3-8 bar |
| Max Liquid Outlet Pressure | 800 bar / 11600 psi |
| Pressure Control Accuracy | Less than 1% F.S |
| Measurement Accuracy | ±0.4% FS pressure gauge |
| Material | 304 Stainless steel frame |
| Equipment Dimension | 500*370*520 mm |
| Outlet Connection | NPT 1/4 Internal Thread |
We provide professional advice regarding machines, materials, and packing. Specialized machines can be customized according to specific requests. All equipment and accessories are guaranteed for one year with permanent technical advice and operation guidance provided.
