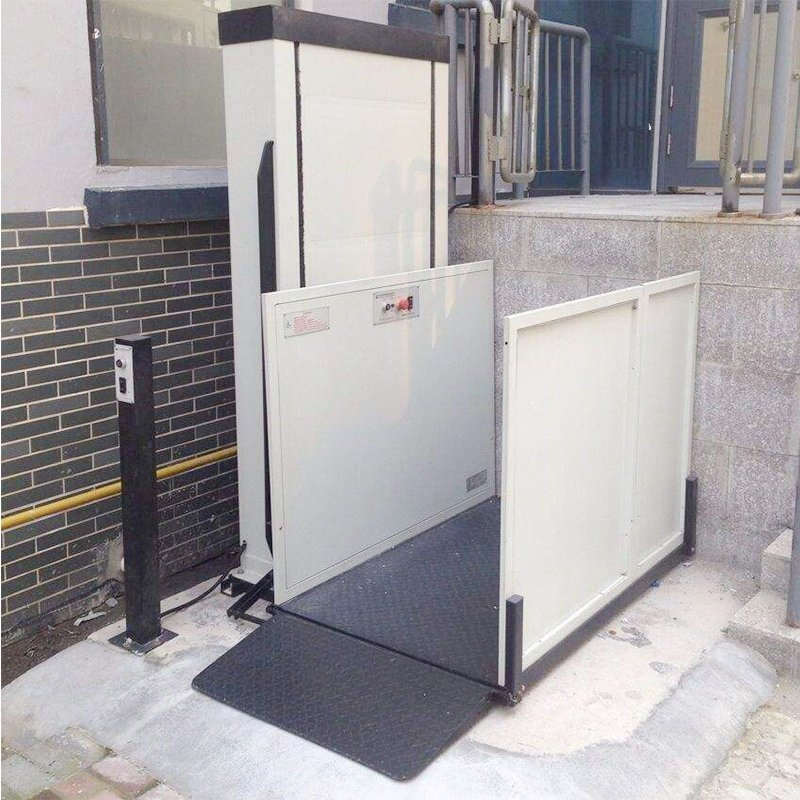

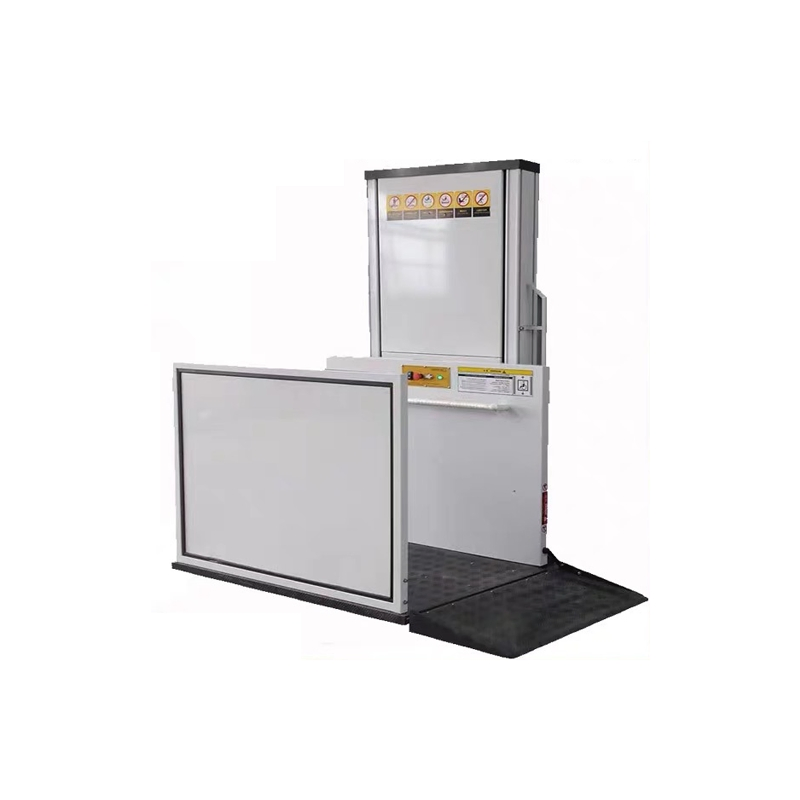

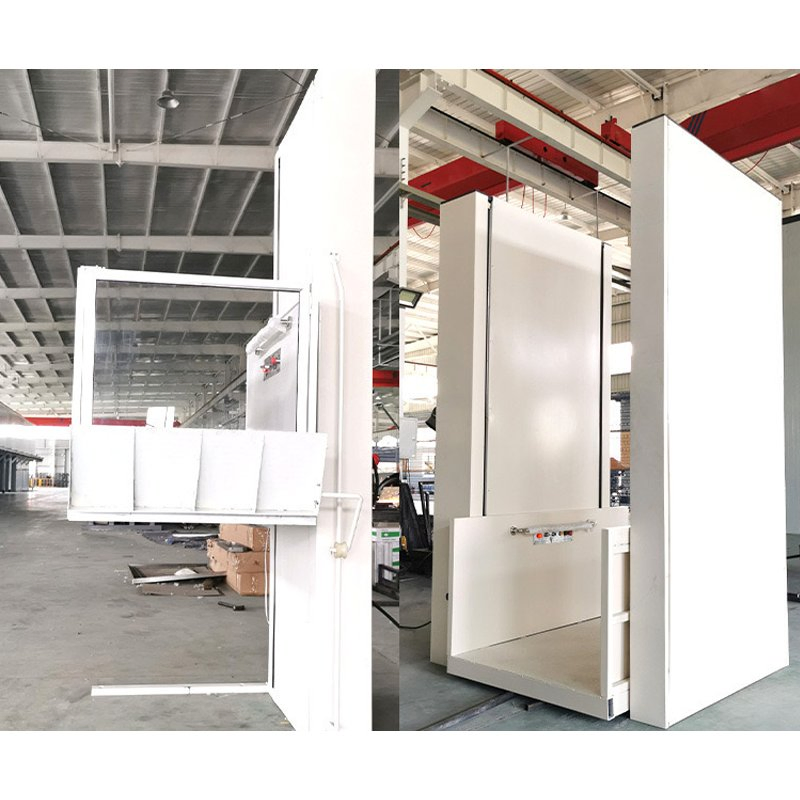

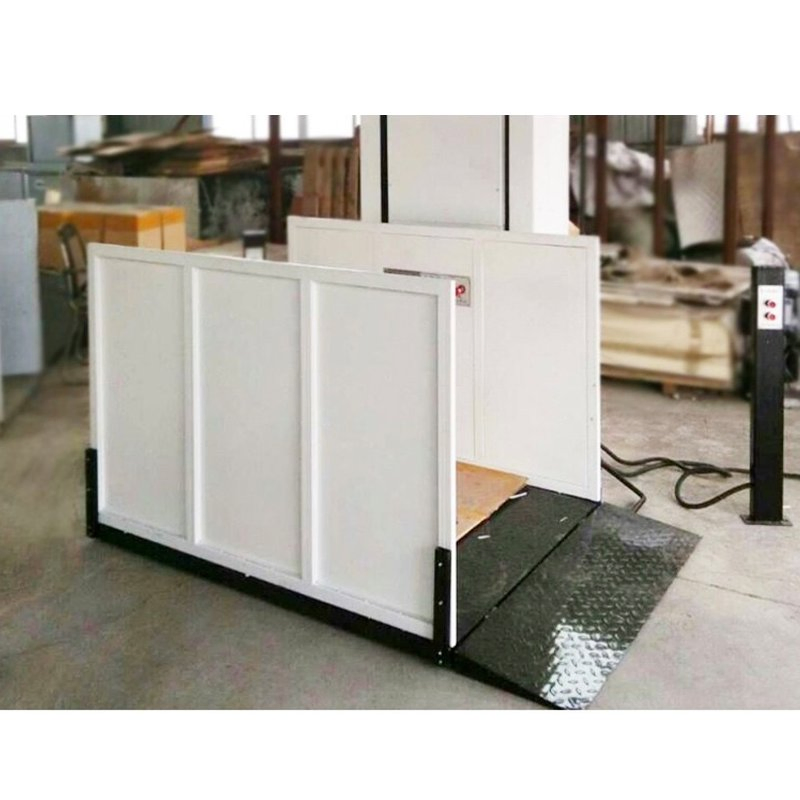

Stair Lift/Wheelchair Lift Passenger Lift Wheelchair Elevator Home Lift for Disabled

After-sales Service: Free Parts Lifetime
Warranty: 1 Years
Application: Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

Product Description

Overview - Basic Info
Model NO.
HWL0D
Lift Mechanism
Articulated Lift
Carrying Capacity
250kg
Moves
Stationary
Driven Type
AC
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Platform Size
Customized
Color
Customized
Working Height
Customized
Load
Customized
Transport Package
Wooden Pallet
Specification
2200*1600*1600
Origin
China
HS Code
8428909090
Production Capacity
10000PCS/Year
Packaging & Delivery
Package Size
220.00cm * 160.00cm * 160.00cm
Package Gross Weight
350.000kg
Product Description

Wheelchair Lift, mainly consisting of rails and lifting platform plates, resemble a simple small elevator. The track is embedded in the wall at the entrance and exit of the passageway, and extends downward with the slope of the staircase to the interior of the tunnel. The platform can be folded against the wall when not in use so that it does not take up space at the entrance and exit of the passage. For wheelchair users, the four wheels of the wheelchair can be fixed on the platform, and the lifting platform can be controlled to enter the underground passage by pressing the switch, which is safe and convenient.

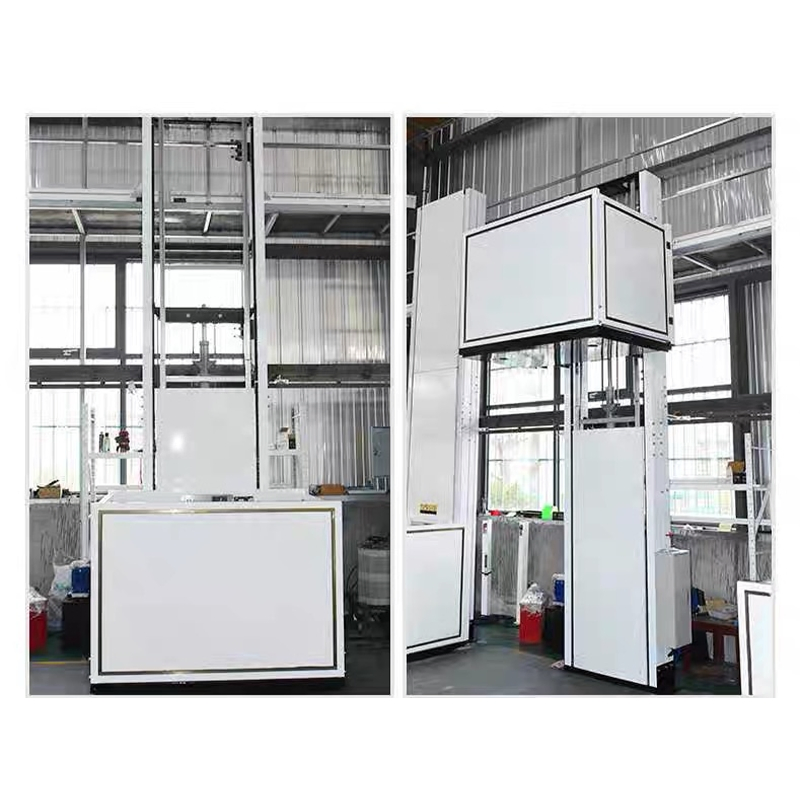

Wheelchair Lift Overview
Stair Lift Details

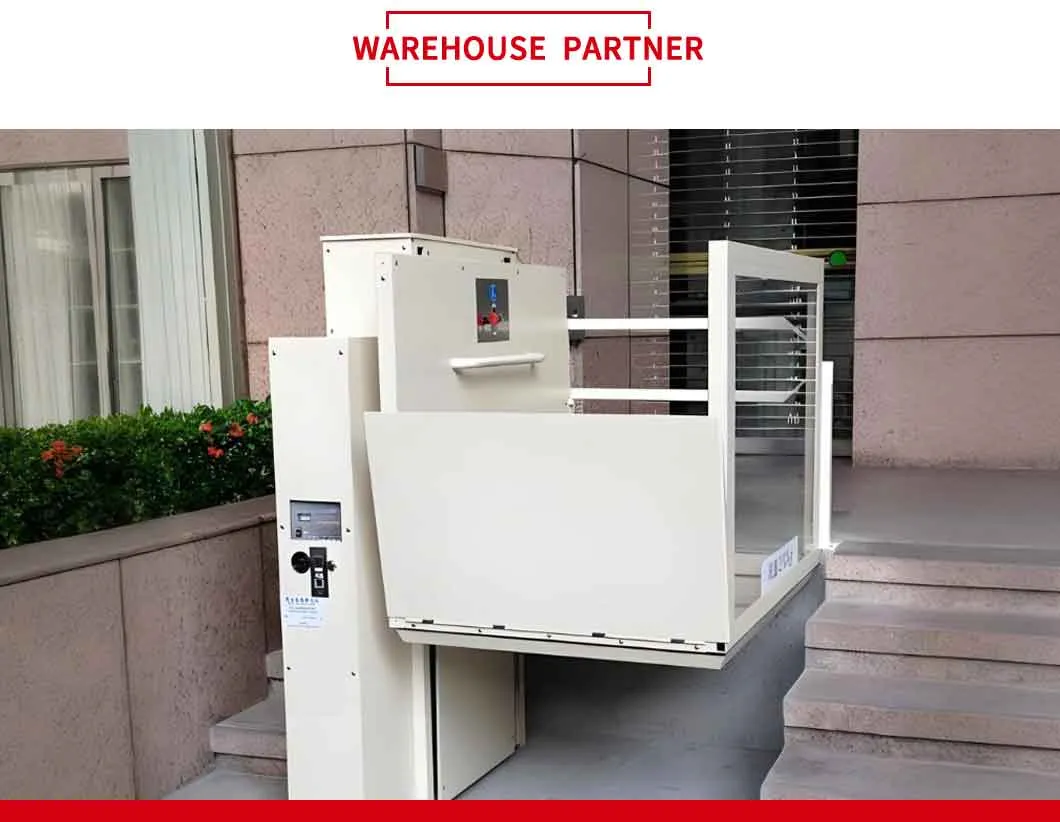

Platform Lift Installation
Safety Features Lift
Home Lift for Disabled
Product Name Wheelchair Lift
Model Type HWL2510 HWL2515 HWL2520 HWL2525 HWL2530 HWL2535
Max. Platform Height 1000mm 1500mm 2000mm 2500mm 3000mm 3500mm
Load Capacity 250kg 250kg 250kg 250kg 250kg 250kg
N.W/G.W(kg) 350/450 450/550 550/700 700/850 780/900 850/1000
Machine Size(mm) 2000*1430*1300 2500*1430*1300 3000*1430*1000 3500*1430*1000 4000*1430*1000 4600*1430*1000
Packing Size(mm) 2200*1600*1600 2700*1600*1600 3200*1600*1600 3700*1600*1600 4200*1600*1600 4800*1600*1600
Platform Size 1430*1000mm
Speed 0.06~0.1m/s
Control voltage 24V/DC
Featured Applications
Wheelchair Lift Style 1
Wheelchair Lift Style 2
Wheelchair Lift Style 3

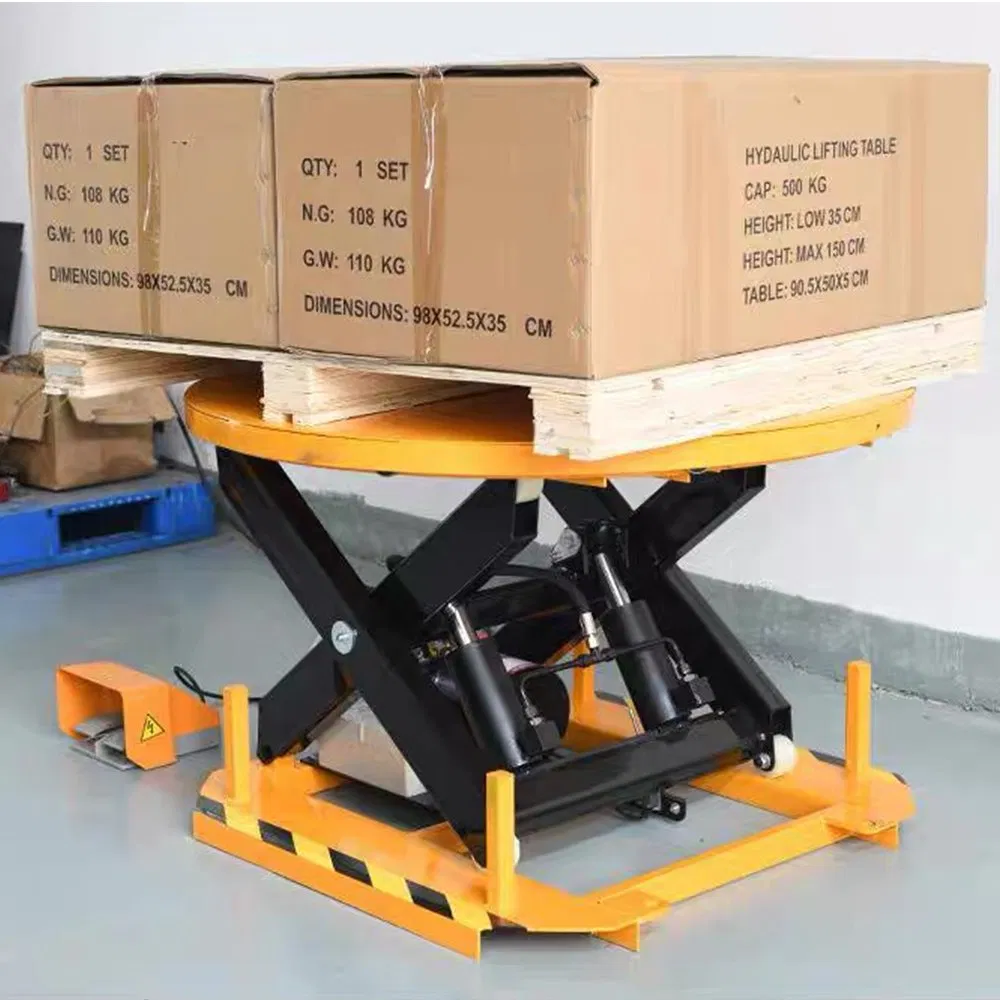

Wheelchair Lift Style 4

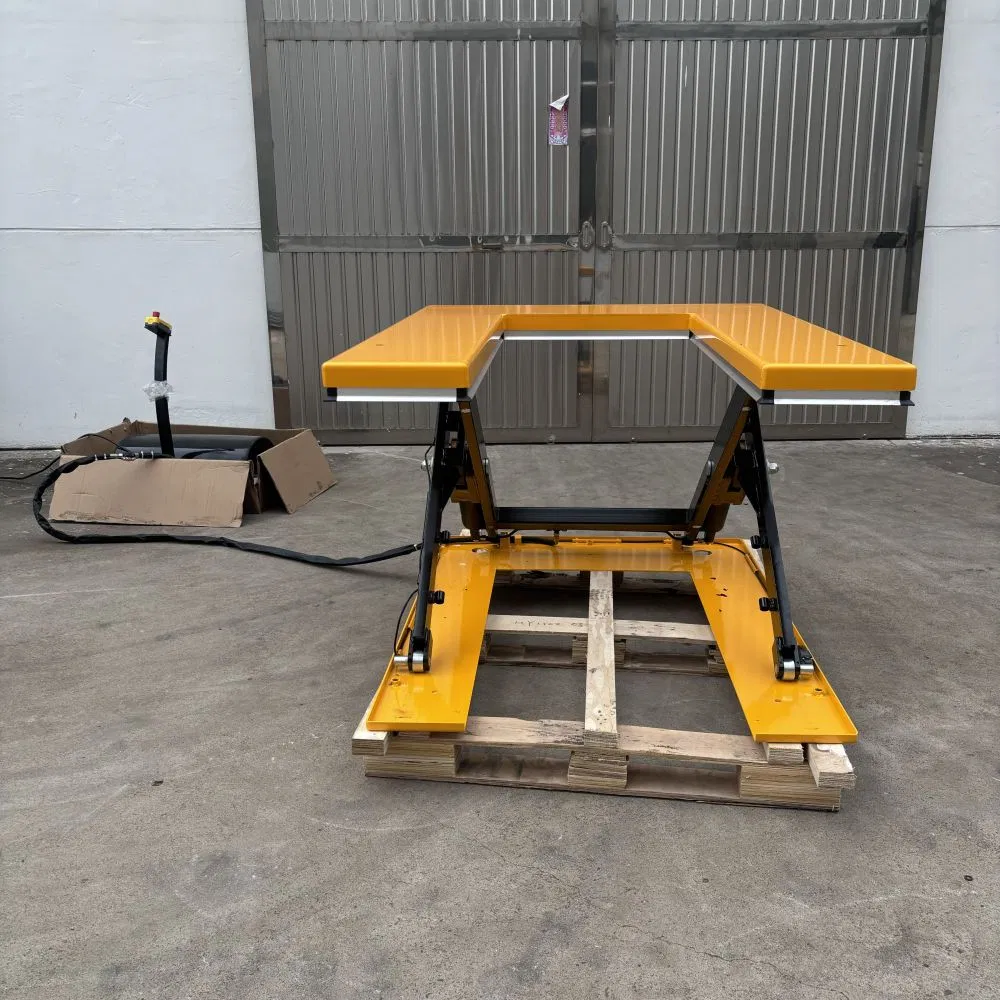

Wheelchair Lift Style 5
Wheelchair Lift Style 6

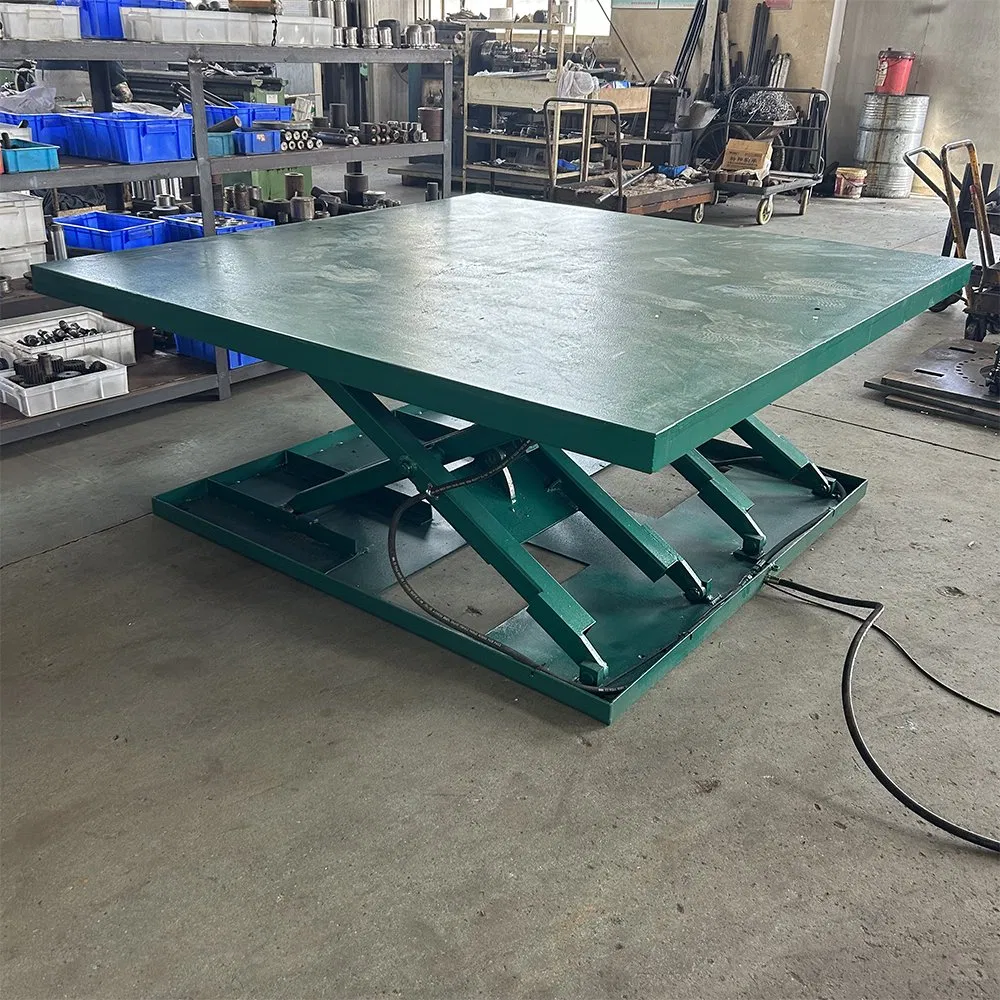

Wheelchair Lift Style 7

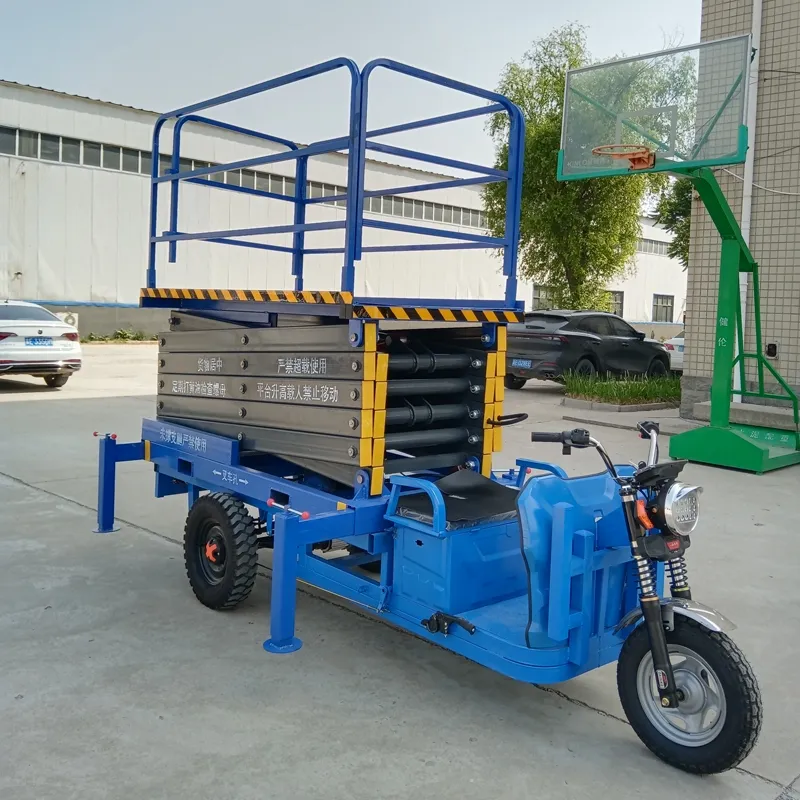

Wheelchair Lift Style 8

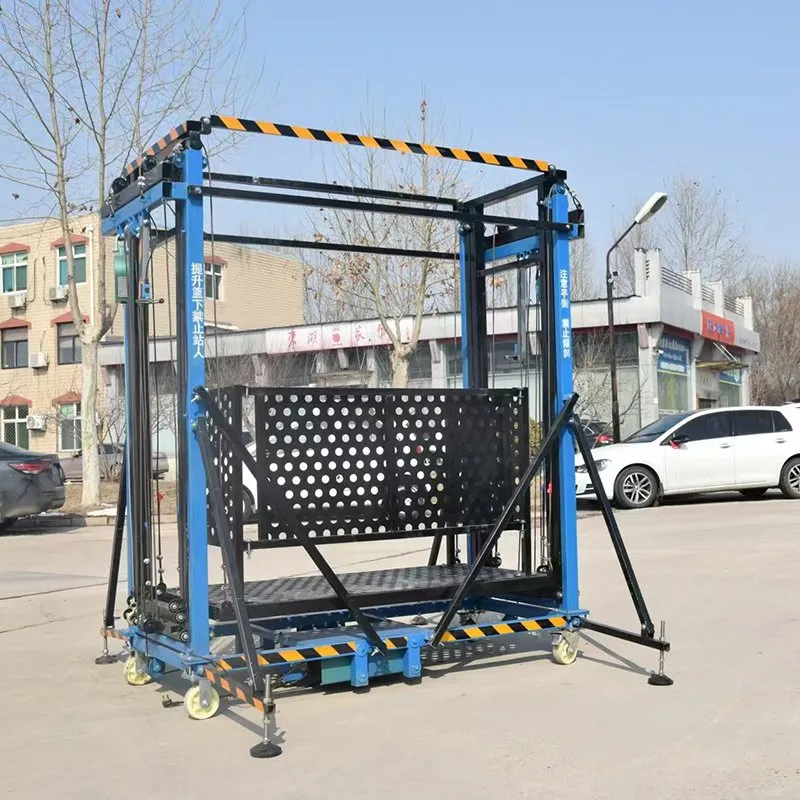

Wheelchair Lift Style 9
Professional Manufacturing

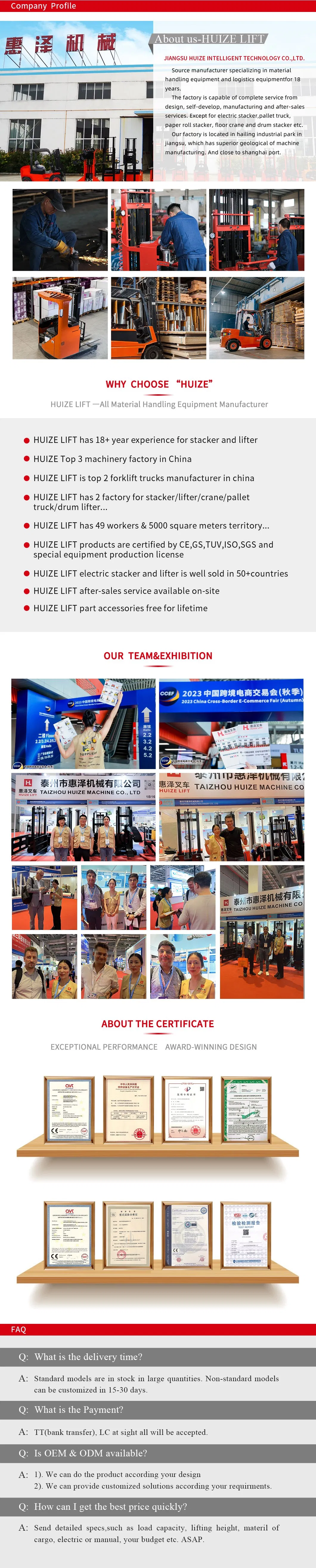

Manufacturing Process
Frequently Asked Questions
What is the standard load capacity of the wheelchair lift?
The standard load capacity for our wheelchair lift models is 250kg, providing a safe and stable platform for wheelchair users.
Are the platform size and lifting height customizable?
Yes, both the platform size and the working height can be customized to fit your specific architectural requirements and space constraints.
What safety features are included with the lift?
The lifts are designed with explosion-proof and insulating features. They also include secure rails and a platform that can be folded when not in use to maintain clear passage.
What is the operating speed of the lifting platform?
The lift operates at a controlled and steady speed between 0.06 to 0.1 meters per second, ensuring user comfort and safety.
How is the wheelchair lift powered?
The system is AC driven and utilizes a 24V DC control voltage for safe operation of the switching and control mechanisms.
Is this lift suitable for outdoor installation?
Yes, the lift is designed for versatility and can be installed at entrances, exits, or interior passages to provide seamless accessibility.
