ApplicationWorkshop, Shipboard, Warehouse, Building
Lift MechanismLift Chain
Capacity250kg - 500kg
Driven TypeAC
Lifting Height1m - 12m
Voltage110V/220V/380V/440V
CertificationGS, CE, RoHS, ISO 9001
Control Voltage24V
Product Description

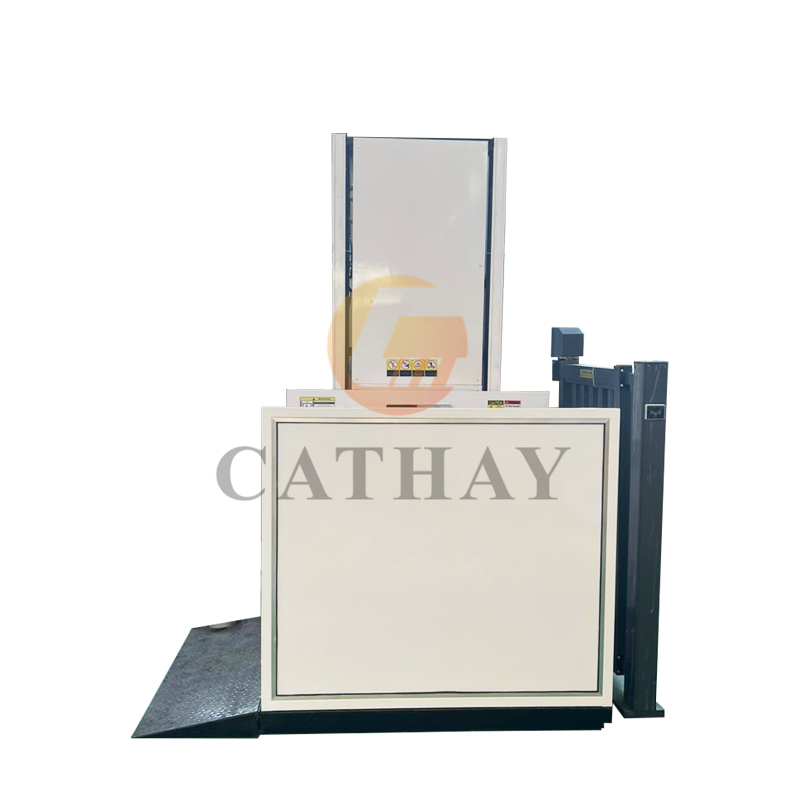

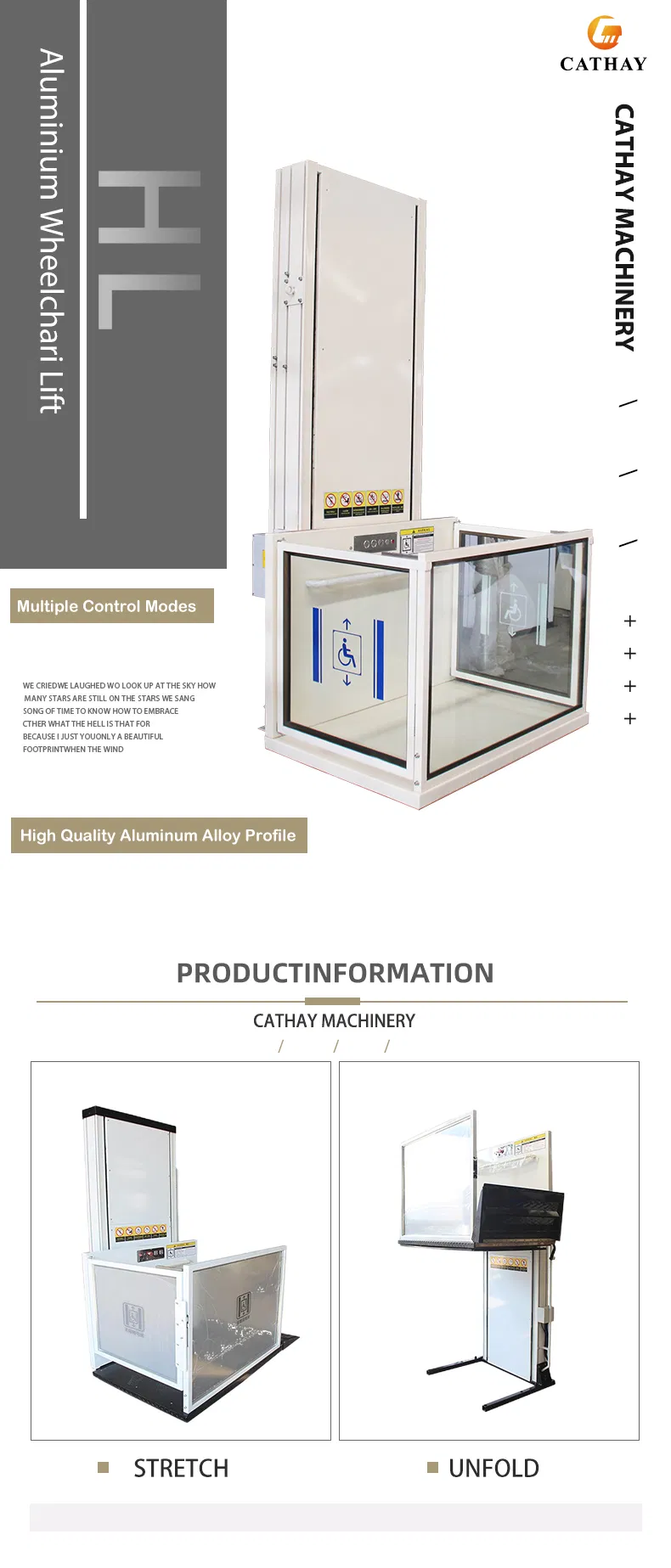

Electric Hydraulic Wheelchair Platform Lift
Designed with a lifting height range of 1 to 12 meters and a robust lifting capacity of 250kg to 500kg, these custom lifts are engineered for stability and security. Their strong adaptability allows for installation in diverse environments, including general explosion-proof locations. Flexible configuration options allow customization of the platform size and entry/exit orientations to match specific installation environments and user requirements.
Technical Parameters
Model
HL10
HL20
HL30
HL40
HL50
HL60
HL100
Max. Platform Height
1000mm
2000mm
3000mm
4000mm
5000mm
6000mm
10000mm
Load Capacity
250kg
250kg
250kg
250kg
250kg
250kg
250kg
Platform Size
1430*1000mm skid proof checkered steel
Speed
0.06 ~ 0.2m/s
Power Output
1.1 ~ 2.2KW
Drive System
Hydraulic silent pump station and electric motor

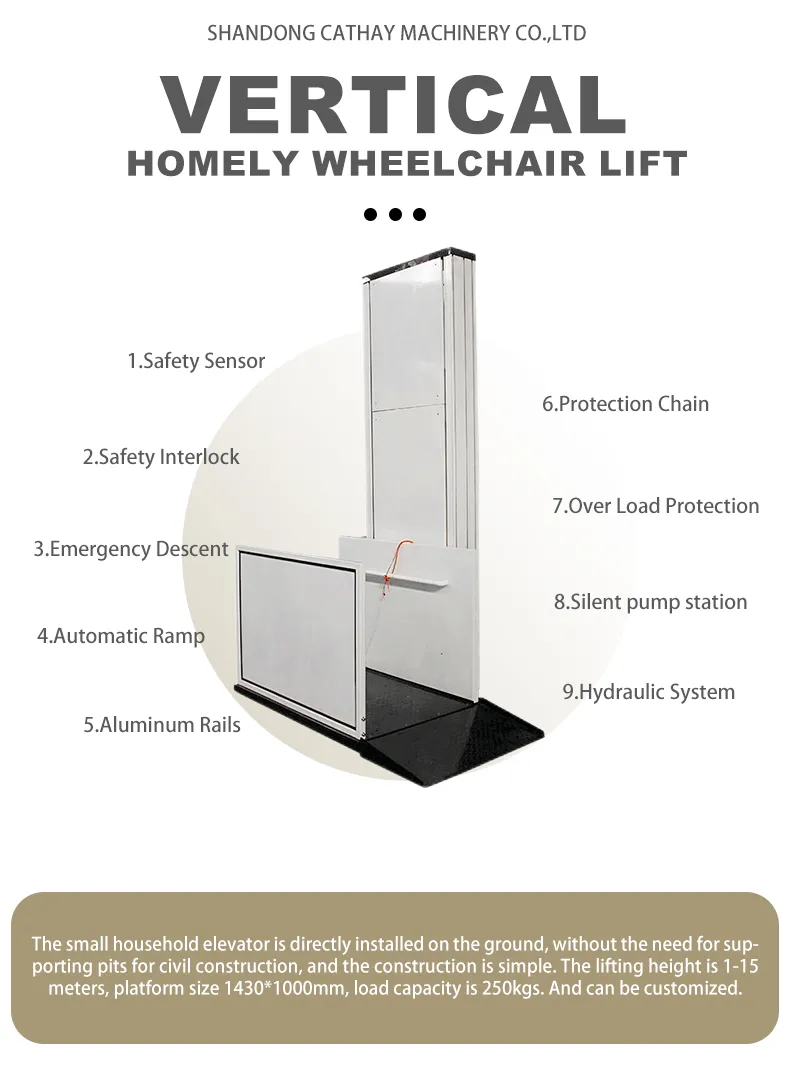

Key Advantages
Safety Sensor Protection
Equipped with a safety sensor beneath the car, which immediately stops the platform if it detects an obstacle while descending.
Safety Interlock System
In case of malfunction or loss of control, the platform automatically locks to prevent accidental movement.
Emergency Descent
Features a manual descent mechanism, allowing users to lower the platform safely during power failures.
Automatic Ramp
The ramp folds up automatically when the lift begins operation, minimizing tripping hazards.
Silent Operation
Operates within ANSI/ASME and EN1570 noise standards using a hydraulic silent pump station.
Durable Construction
High-strength extruded aluminum rails ensure long-term durability and stability even under frequent use.

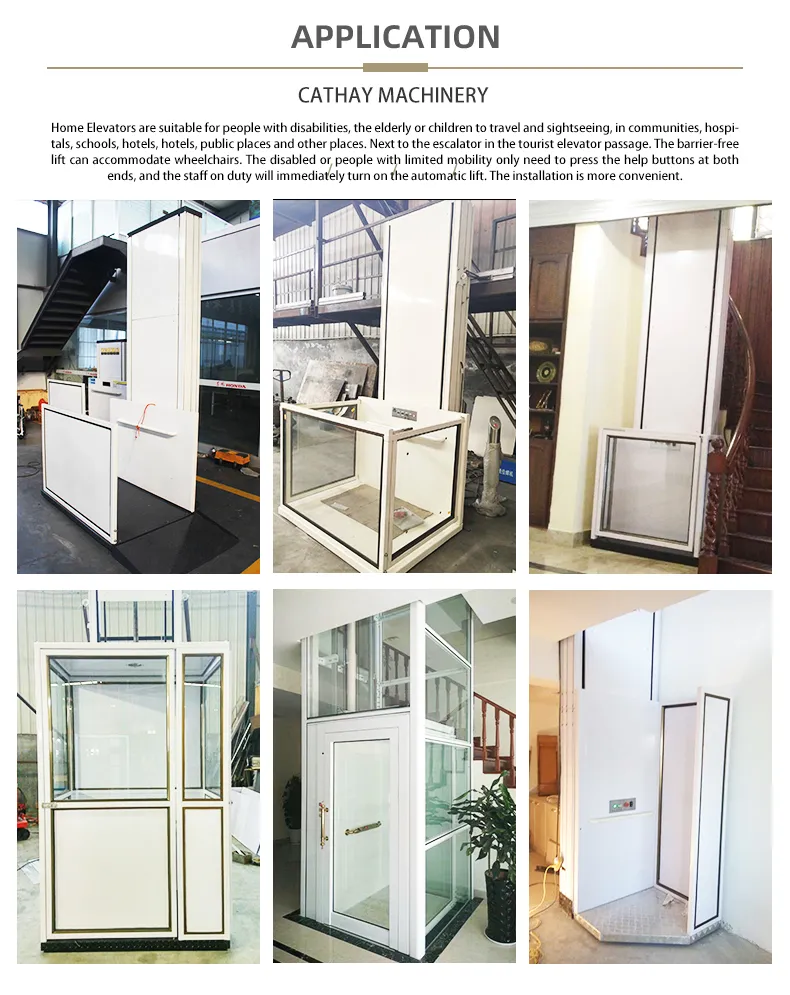

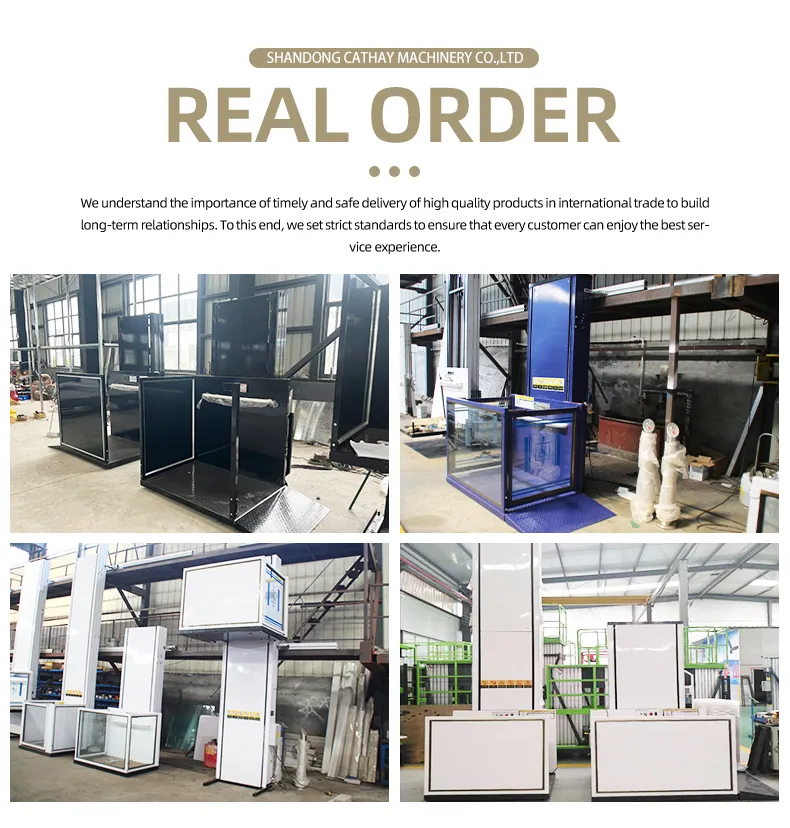

Application & Real Orders
Hydraulic wheelchair home lifts provide an efficient way to move between floors in residential spaces, making everyday life easier for seniors and people with mobility challenges. Suitable for both new homes and retrofits, these lifts can be installed indoors or outdoors. Beyond improving accessibility, they also enhance property value.
Certifications & Global Presence

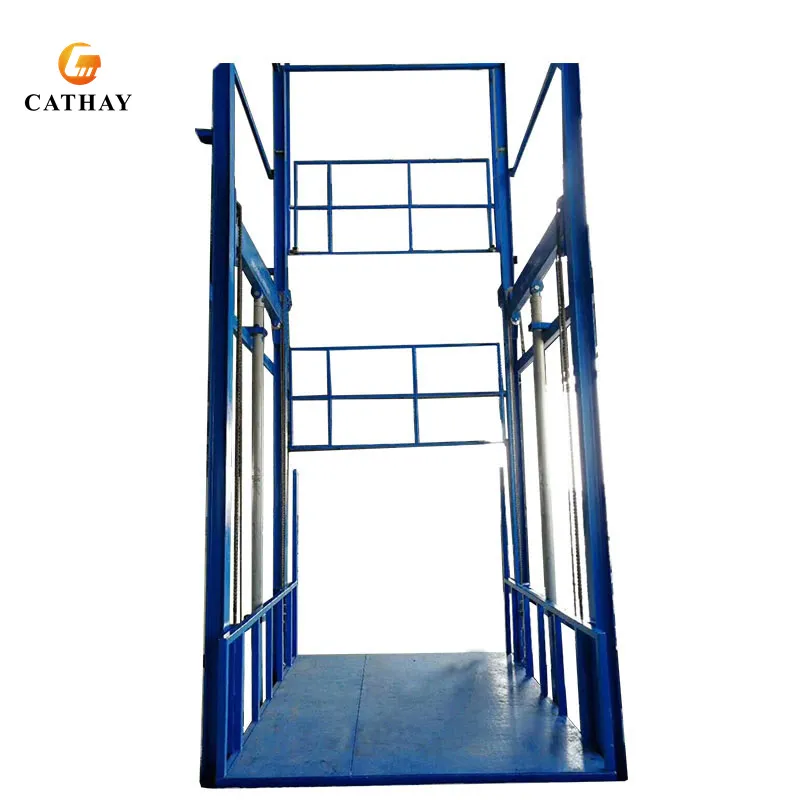

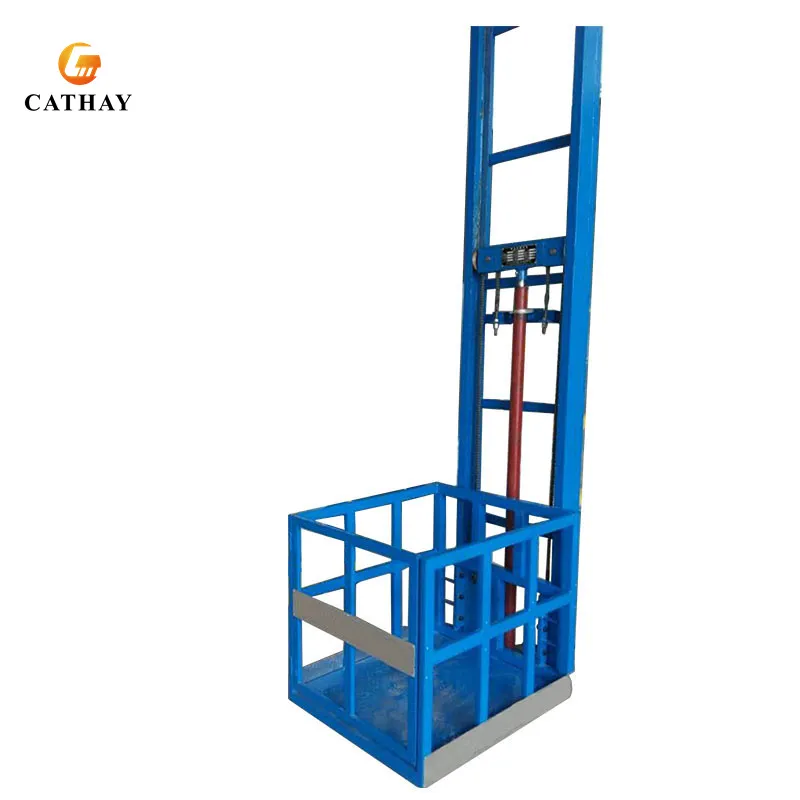

Related Products
Frequently Asked Questions
What is the maximum lifting height of the wheelchair platform?
The platform can reach a maximum height of 1 to 12 meters, depending on the specific model selected.
What is the standard load capacity for this lift?
The standard load capacity ranges from 250kg to 500kg, which is suitable for a wheelchair user and an attendant.
Can the lift be installed in outdoor environments?
Yes, the lift is designed for both indoor and outdoor use, capable of operating in temperatures ranging from -20°C to 70°C.
Does the installation require a floor pit?
For heights under 3 meters, no pit is required; the lift can be installed directly on the floor. For heights over 3 meters, it is typically secured to both the floor and a supporting wall.
What safety features are included to prevent accidents?
The lift includes a safety sensor beneath the platform to detect obstacles, an emergency manual descent valve, an automatic folding ramp, and an overload protection system.
What are the power requirements for operation?
The lift is compatible with various voltages (110V, 220V, 380V, 440V) and can be configured for either single-phase or three-phase power according to local standards.
