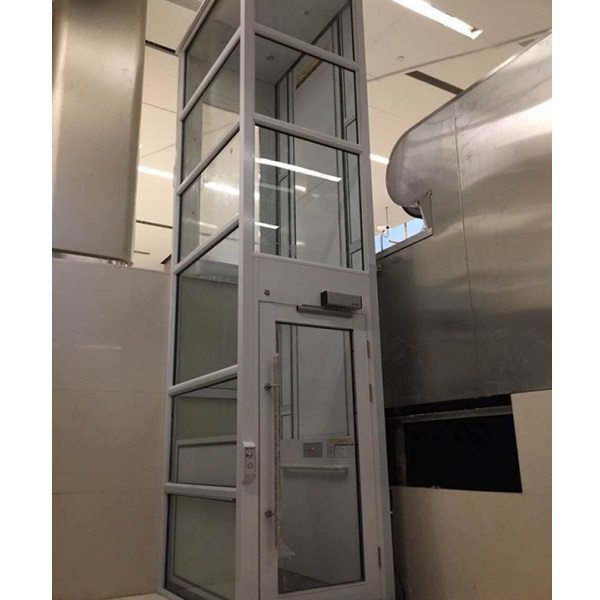

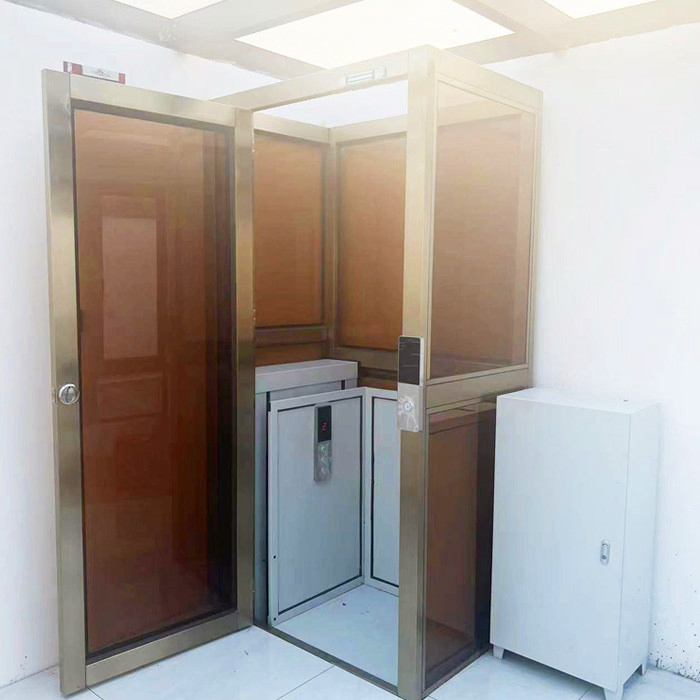

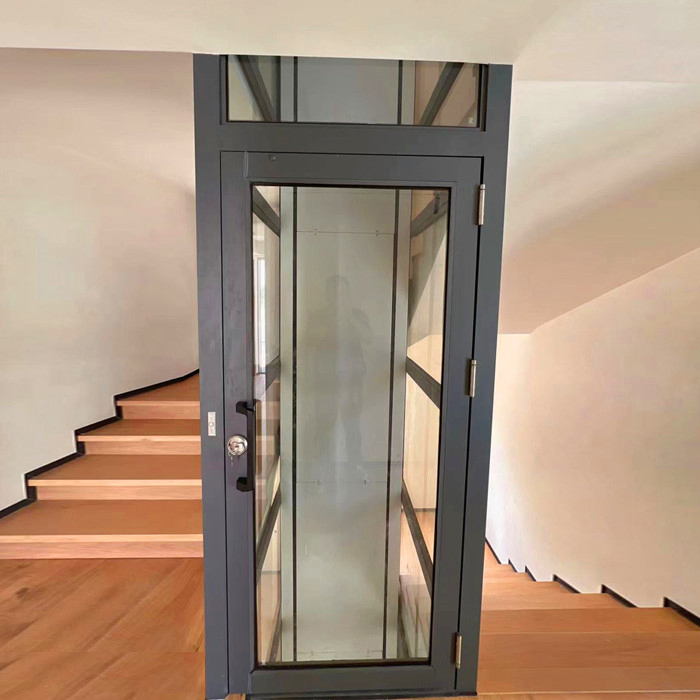

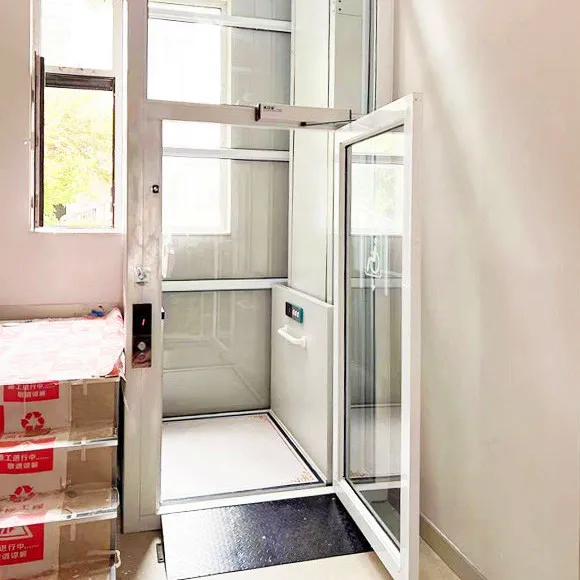

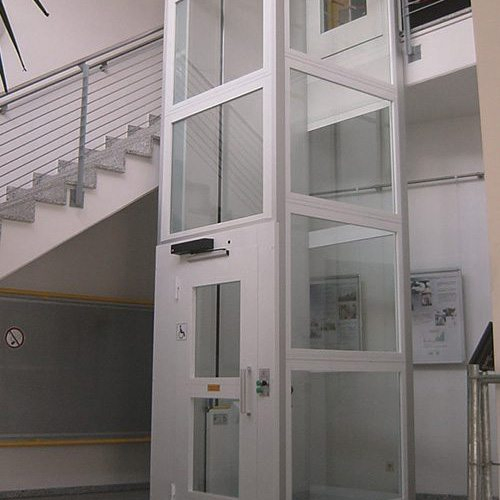

Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger
1 / 5
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger

Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger

Customization: Available
After-sales Service: 24 Hours Technical Support
Warranty: 12 Months
Send Inquiry

Product Description

Basic Specifications

Model NO.
Y-160
Driving Type
Hydraulic Type or Screw Type
Capacity
250kg
Persons
2-3 Persons
Speed
70mm/S
Control Mode
Electric
Position
Outdoor or Indoor
Elevator Door
Customized
Lifting Height
1m-10m
Usage
Indoors and Outdoors
Origin
China
HS Code
8428909090

Product Overview

The hoistway lift platform features stable running speed, high safety, and easy installation. With a small footprint and no need for machine pits, it is an ideal, cost-effective alternative to traditional home elevators. The spacious platform accommodates wheelchairs and escorts, effectively assisting users in overcoming stair mobility challenges.

Application Range: Suitable for residential quarters, villas, hotels, administrative office buildings, subways, banks, gymnasiums, hospitals, and pension centers.

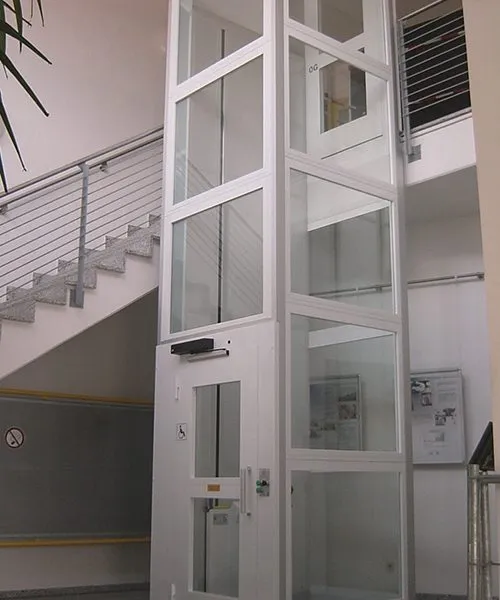

Vertical Home Platform Stair Lift

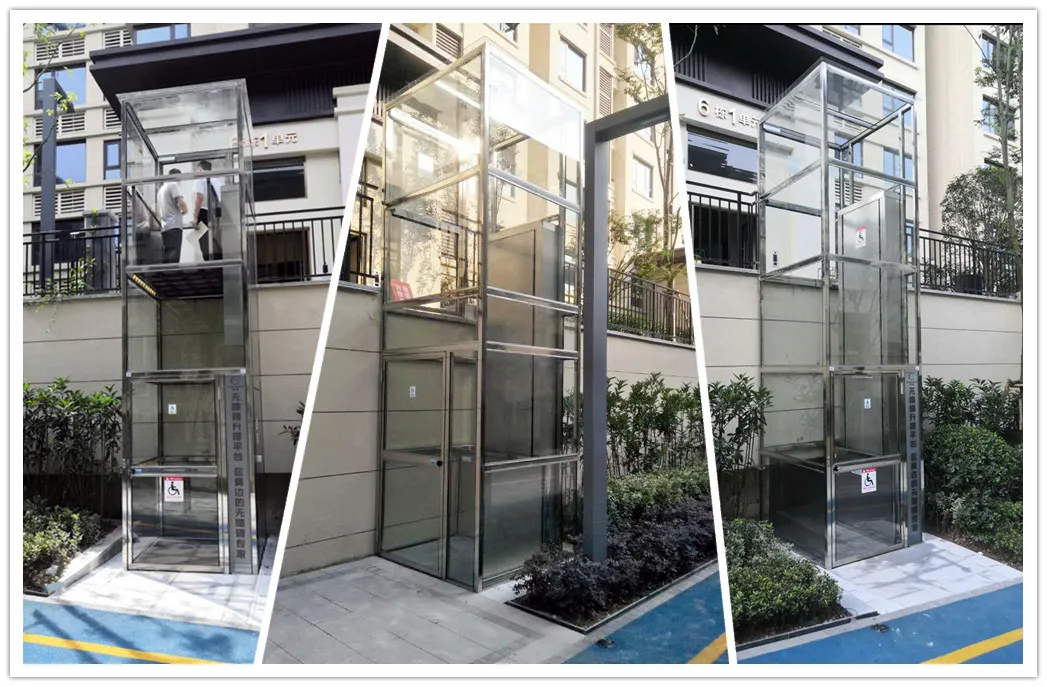

Electric Lifting Platform Application

Technical Parameters

Parameter Name Details
Voltage220V/50HZ or Customized
Installation Dimensions1590 mm(L) × 1380 mm(W)
Lifting Base Plate Size1370mm × 920mm
Lifting Speed90mm/s (Inverter control, soft start/brake)
Max. Loading240kg
Drive WayHydraulic double-valve silent motor-driven
Motor Power2.2kw 220V/AC
Operating Temp-20°C to 60°C
Safety Equipment Overload Protection Alarm signal and operation halt during overload
Emergency Stop Instant halt via emergency button
Emergency Descent Electric emergency descent system
Safety Door Sensor light curtains at entrances and exits

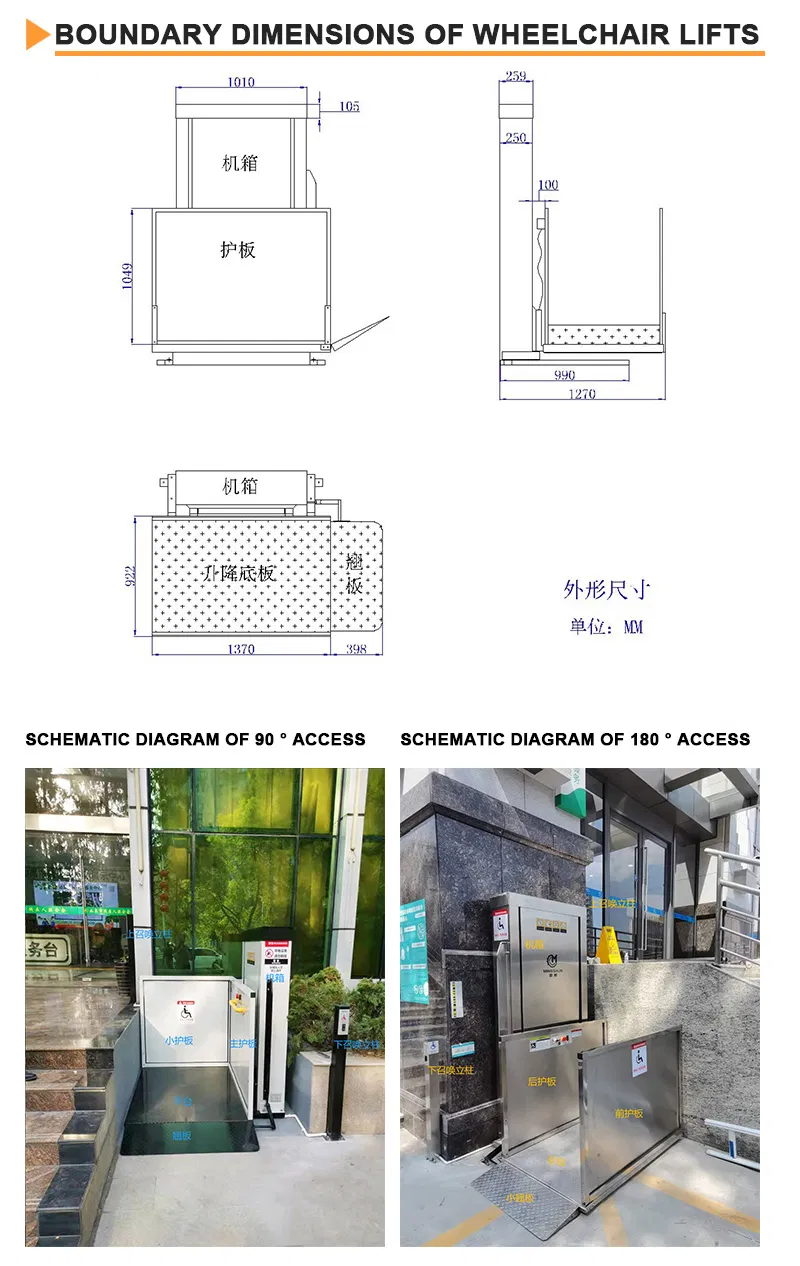

Hoistway Lift Structure
Safety Features Detail

Frequently Asked Questions

Q1: Does the Y-160 lift require a machine pit for installation?
No, it does not require a foundation pit. It can be directly fixed onto a horizontal concrete floor and wall, using a ramp for height transition.
Q2: What is the maximum load capacity and person limit?
The standard capacity is 240kg-250kg, which comfortably accommodates 2-3 persons or a wheelchair with an escort.
Q3: Can this lift be used in outdoor environments?
Yes, the Y-160 is designed for both indoor and outdoor applications, with a working temperature range of -20°C to 60°C.
Q4: What safety features are included?
It includes overload protection with an alarm, emergency stop buttons, electric emergency descent, and safety doors with sensor light curtains.
Q5: Is the lifting speed adjustable?
The lift operates at a stable speed of 70mm/s to 90mm/s. It utilizes inverter control for a soft start and soft brake to ensure passenger comfort.
Q6: What are the power requirements?
The standard voltage is 220V/50HZ, but it can be customized according to local electrical standards.

Related Products

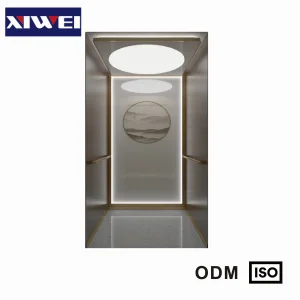

Without Computer Room 6 - 10 Xiwei Stair Lift Elevator

Without Computer Room 6 - 10 Xiwei Stair Lift Elevator

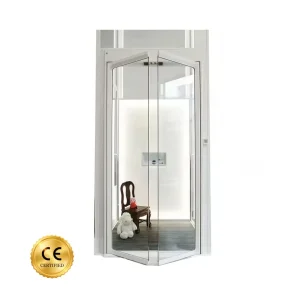

Fujivista Domestic Lifts Mrl Home Elevator Small Stair Lift for Residential House, Smart Passenger Elevator with Sensitive Door Sensors

Fujivista Domestic Lifts Mrl Home Elevator Small Stair Lift for Residential House, Smart Passenger Elevator with Sensitive Door Sensors

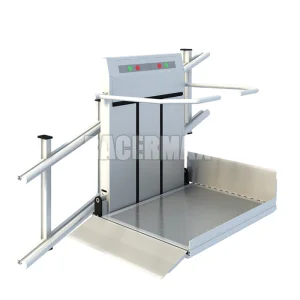

Electric Inclined Wheelchair Lift Platform Wheel Chair Platform Home Stair Lift

Electric Inclined Wheelchair Lift Platform Wheel Chair Platform Home Stair Lift

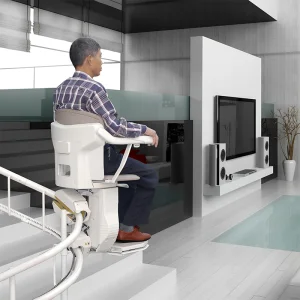

Customized Home Use DC Powered Passanger Stair Chair Lift

Customized Home Use DC Powered Passanger Stair Chair Lift

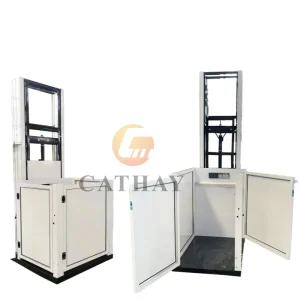

CE 1~15m Residential Indoor Outdoor Vertical Platform Stair Home Small Personal Elevator Wheelchair Lift for Home

CE 1~15m Residential Indoor Outdoor Vertical Platform Stair Home Small Personal Elevator Wheelchair Lift for Home

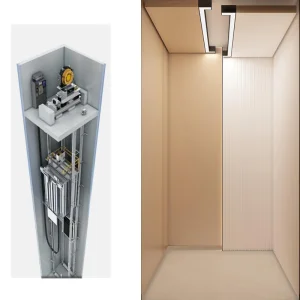

Best Quality Safe Small Home Elevator Mr Stairs Residential Villa Lift

Best Quality Safe Small Home Elevator Mr Stairs Residential Villa Lift

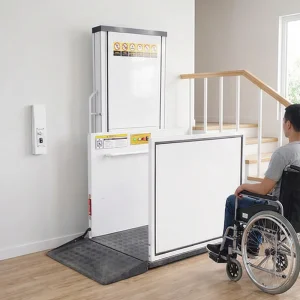

Vertical Wheelchair Lift Platforms Handicap Stair Chair Lift Home Elevator for Disabled

Vertical Wheelchair Lift Platforms Handicap Stair Chair Lift Home Elevator for Disabled

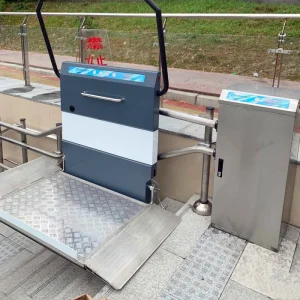

Inclined Electric Wheelchair Platform Home Stair Lifts for Disabled People and The Elder

Inclined Electric Wheelchair Platform Home Stair Lifts for Disabled People and The Elder
Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger

Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger

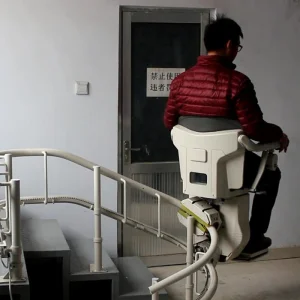

Intelligent Automatic Retractable Customized Handicap Chair Stair Lift
