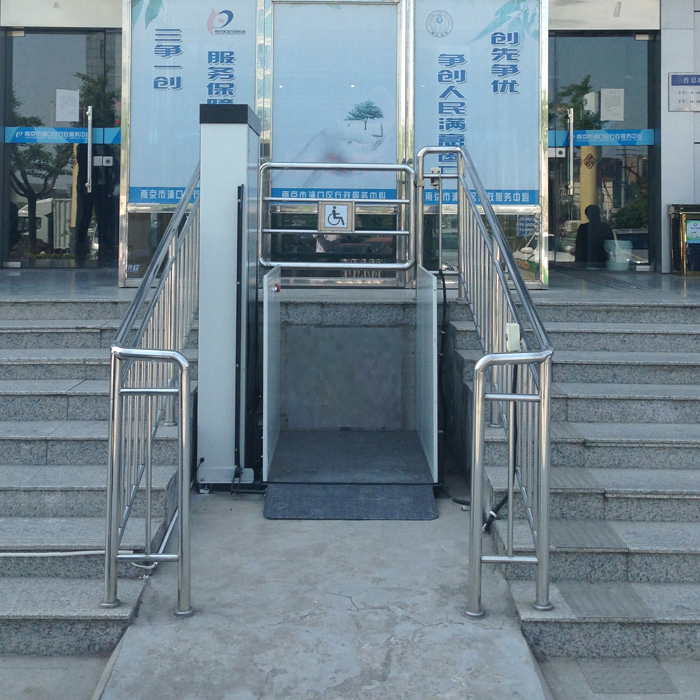

Wheelchair platform lift for home is customized products for lifting cargo or wheelchair for disabled people. It is suitable for solving disabled passengers with large height differences between floors. Platform space can accommodate both wheelchairs and escorts.
| Parameter Item | Specification Details | |
| Voltage | 220V/50HZ or Customized | |

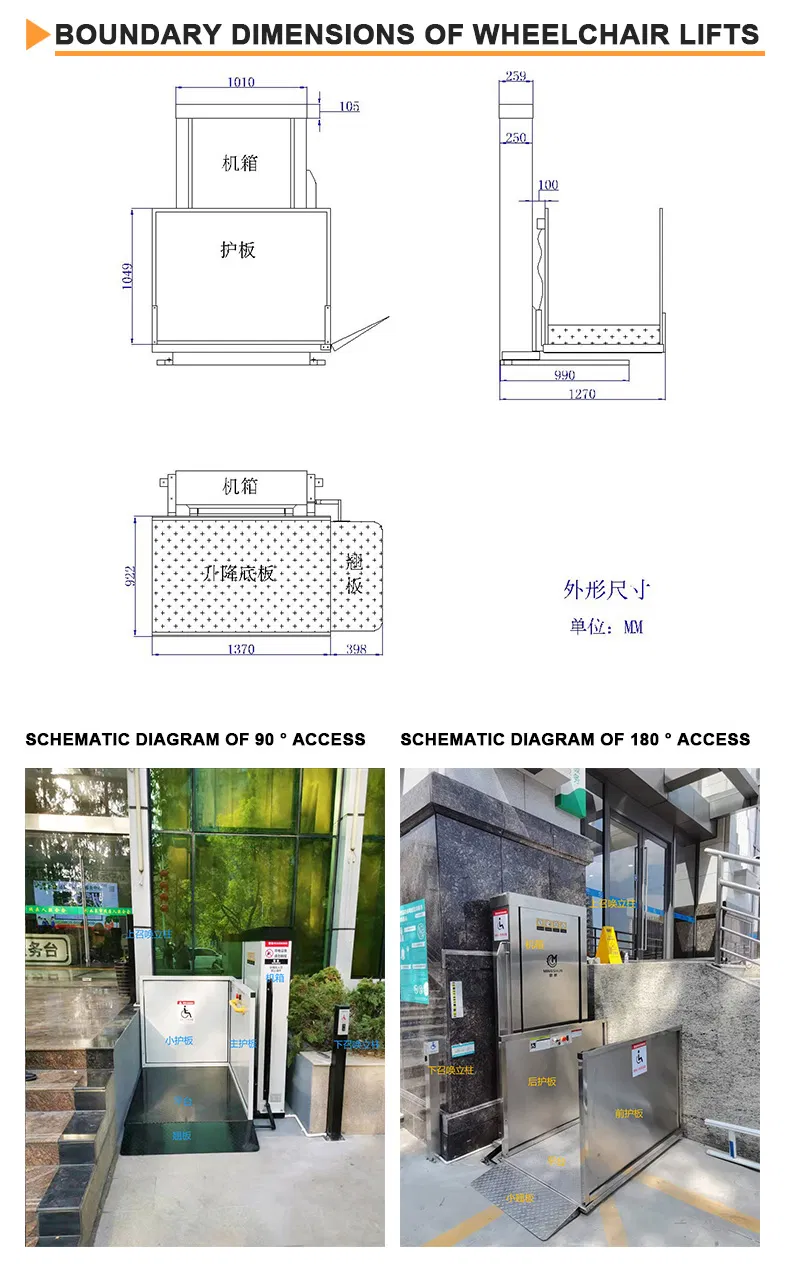

| Overall Dimensions | 1670mm(L)×1270mm(W)×(lifting height+550)mm (H) | |
| Lifting Height | 2000mm (lifting height can be customized) | |
| Min Base Plate Height | 60mm from the ground | |
| Installation | No Foundation/Pit Required | |
| Lifting Speed | 60mm/s inverter control, soft start soft brake | |
| Max Loading | 240kg | |
| Drive System | Screw Drive / Hydraulic | |
| Environment | Indoor & Outdoor (-20°C to 60°C) | |
| Safety Equipment | Safety Rocker | Automatically tilts up to prevent wheelchair sliding |
| Overload Protection | System stops operation when overloaded | |
| Emergency | Emergency stop button & Electric emergency descent | |

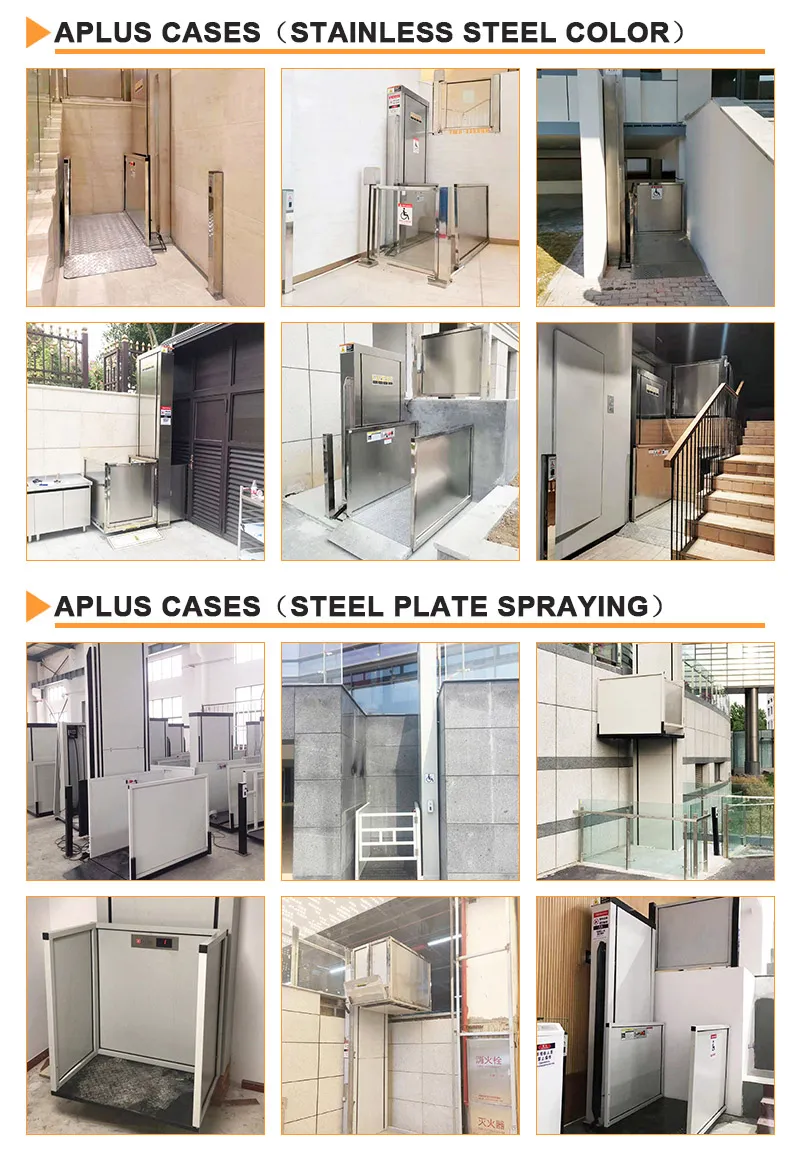

Safe performance and pit-free installation design bring you the convenience of barrier-free access construction and elevator-like enjoyment. Widely used in residential quarters, hotels, restaurants, administrative office buildings, subways, banks, gymnasiums, hospitals and other public places. It is in line with ASME A18-1 and CSA-B613 standards.
