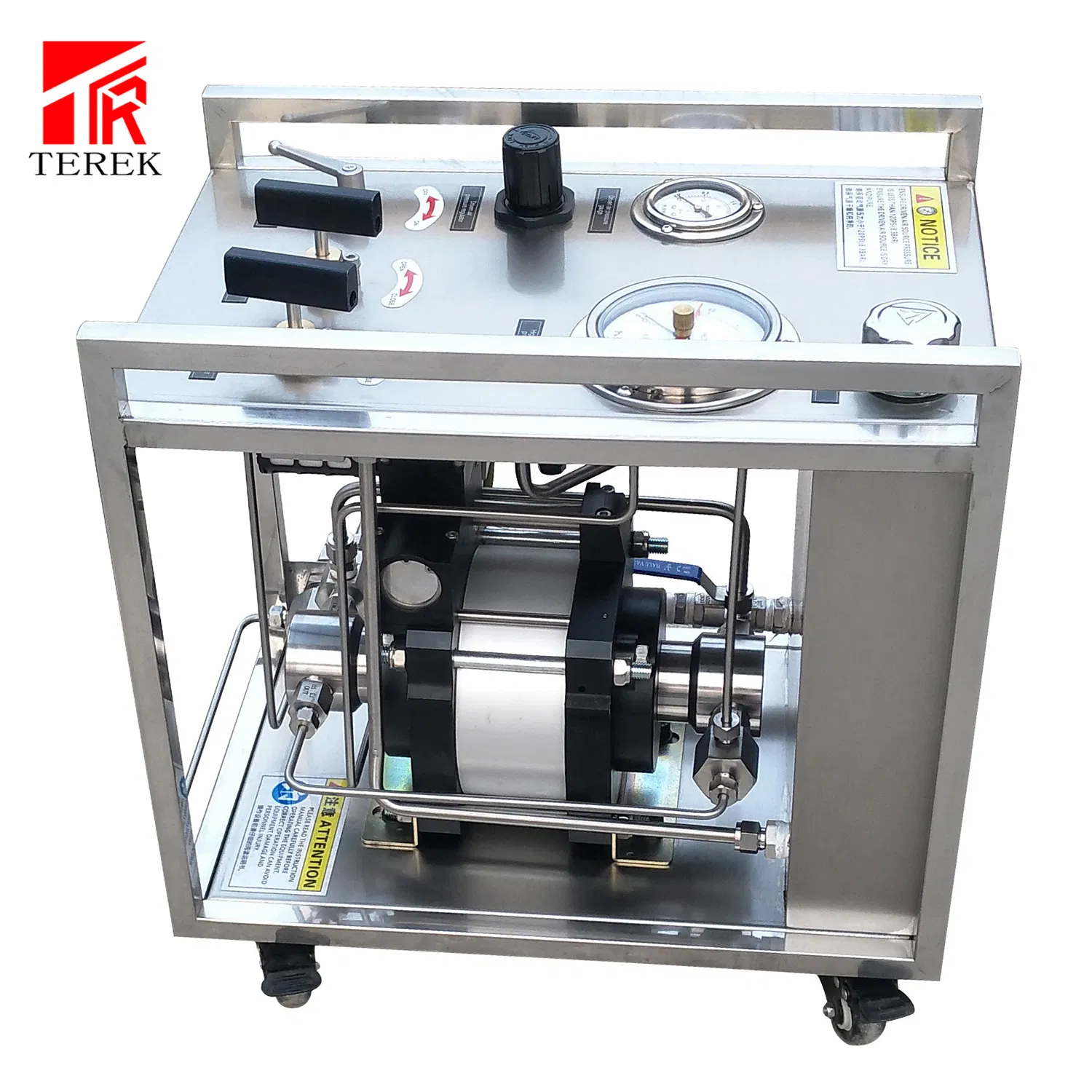

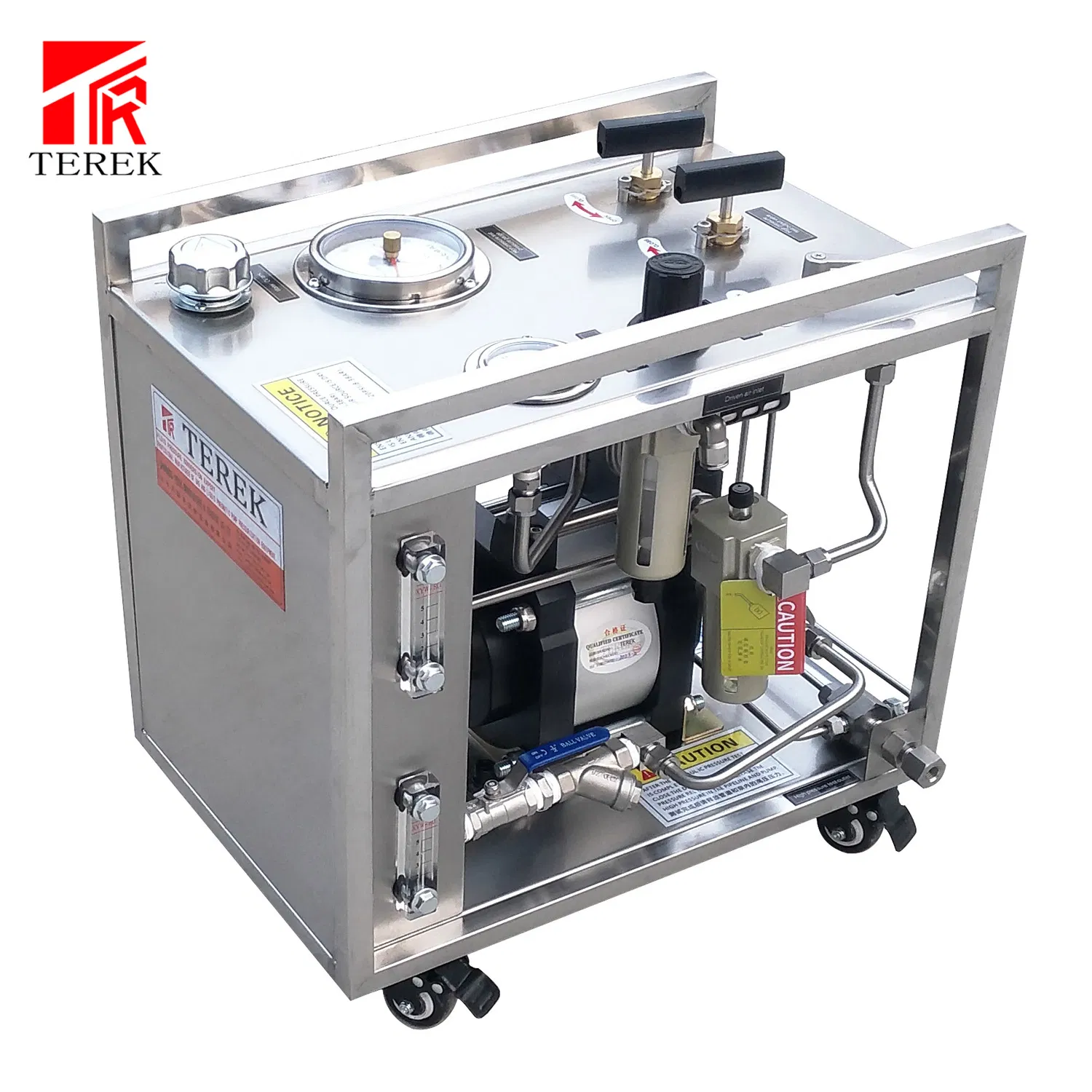

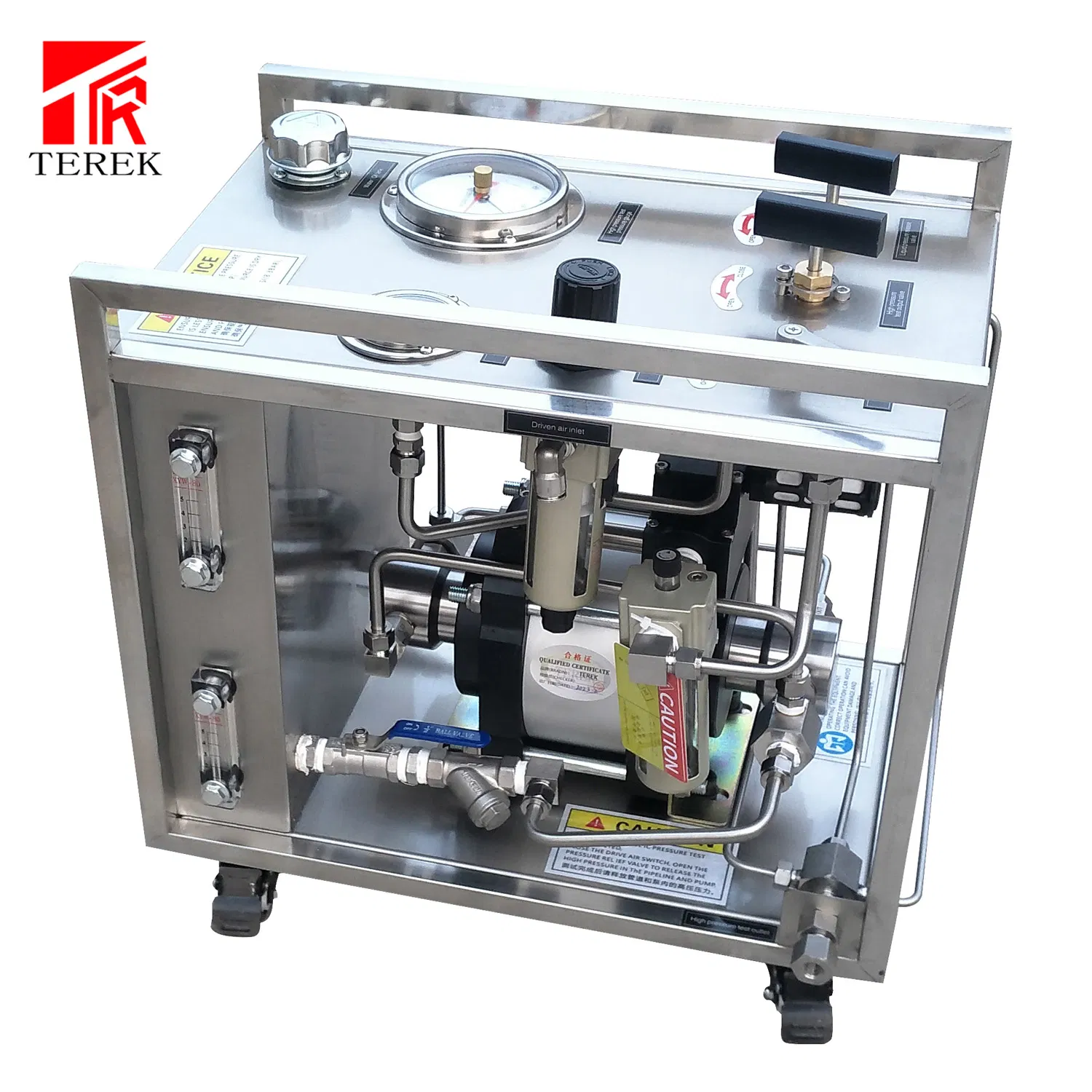

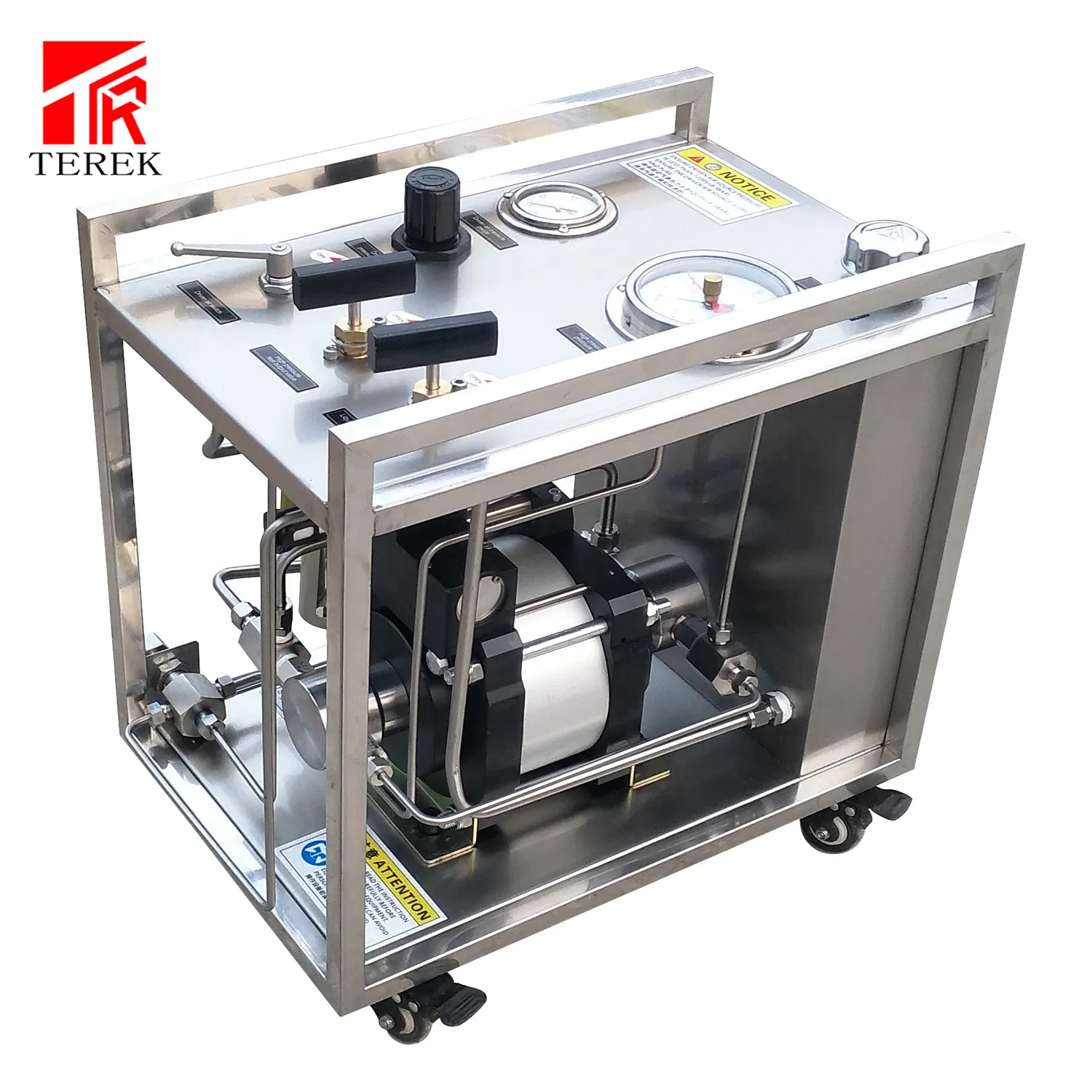

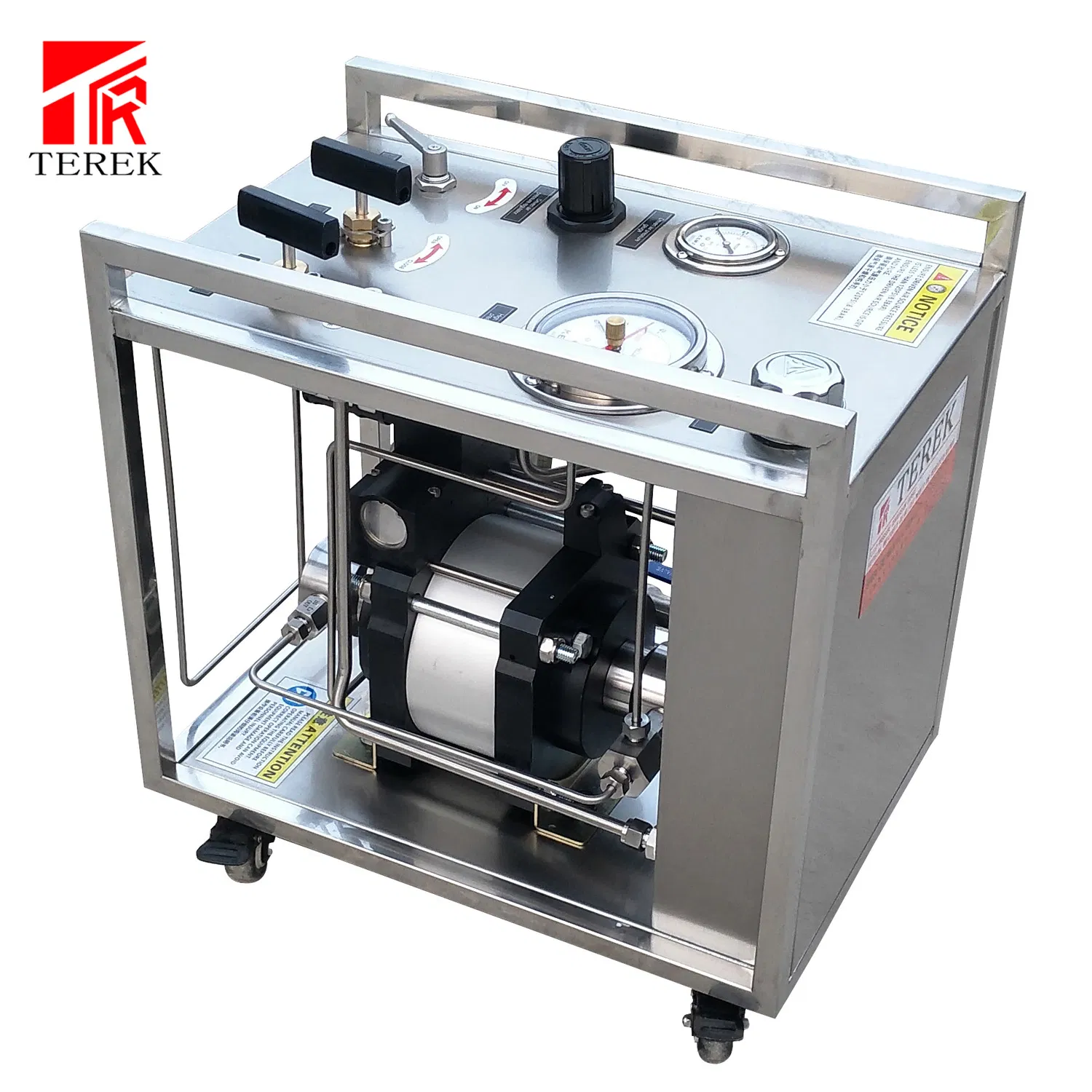

Pneumatic Driven Liquid Transfer Pressure Pump Testing Bench for Leak Test
Pneumatic Driven Liquid Transfer Pressure Pump Testing Bench for Leak Test
Pneumatic Driven Liquid Transfer Pressure Pump Testing Bench for Leak Test
Pneumatic Driven Liquid Transfer Pressure Pump Testing Bench for Leak Test
Pneumatic Driven Liquid Transfer Pressure Pump Testing Bench for Leak Test
1 / 5
Pneumatic Driven Liquid Transfer Pressure Pump Testing Bench for Leak Test
Pneumatic Driven Liquid Transfer Pressure Pump Testing Bench for Leak Test
Pneumatic Driven Liquid Transfer Pressure Pump Testing Bench for Leak Test
Pneumatic Driven Liquid Transfer Pressure Pump Testing Bench for Leak Test
Pneumatic Driven Liquid Transfer Pressure Pump Testing Bench for Leak Test

Pneumatic Driven Liquid Transfer Pressure Pump Testing Bench for Leak Test

Customization: Available
After-sales Service: Technical Support and Services
Warranty: 12 Months
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
LU-LDD-100
Workpiece Max Diameter
>3200mm
Workpiece Mass Scope
>20000kg
Type
Compression Testing Machine
Max Capacity
<1000KN
Accuracy Grade
0.5
Load Way
Pneumatic Hydraulic
Control
Manual Control
Power Source
Air Driven
Working Medium
Water or Hydraulic Oil
Material
Stainless Steel and Aluminum
Production Capacity
100,000 pieces/Year

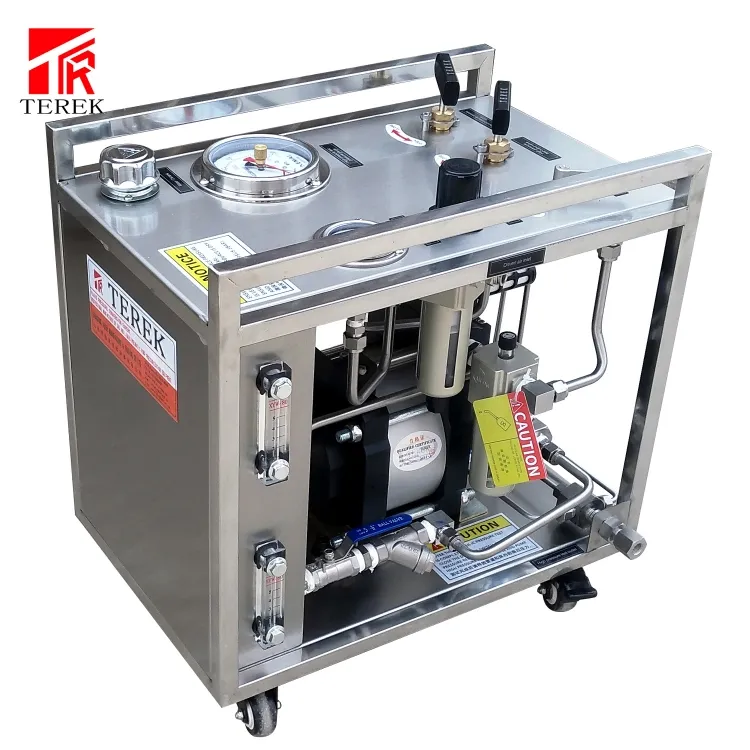

Pneumatic Driven Liquid Transfer Pressure Pump Testing Bench
★

Product Description

The fluid pressurized control cabinet is equipped with a fluid booster pump, drive air water filter, pressure regulator valve, pressure gauges, and a manual pressure relief valve. All core components are securely assembled in a closed stainless steel cabinet or frame for durability and safety.

High working pressures are easily achieved by adjusting the driving air pressure. Once the driving air pressure and output pressure reach a balance, the pump automatically stops, maintaining the output pressure at your preset value. This hydraulic device is ideal for pressure testing components in industrial fields and research institutions.

⚙

Technical Specifications

ParameterDetail
Product NamePneumatic liquid booster pump Hydrostatic pressure testing bench
ModelLU-LDD-100
Pressure Ratio100:1
Drive Air Source3-8 bar (29 to 116 psi)
Max Liquid Outlet Pressure800 bar / 11600 psi
Pressure Control AccuracyLess than 1% F.S
Valves and PipingHigh pressure needle valve and stainless steel piping
Equipment Dimension500*370*520 mm
Connection SizeNPT 1/4 Internal Thread

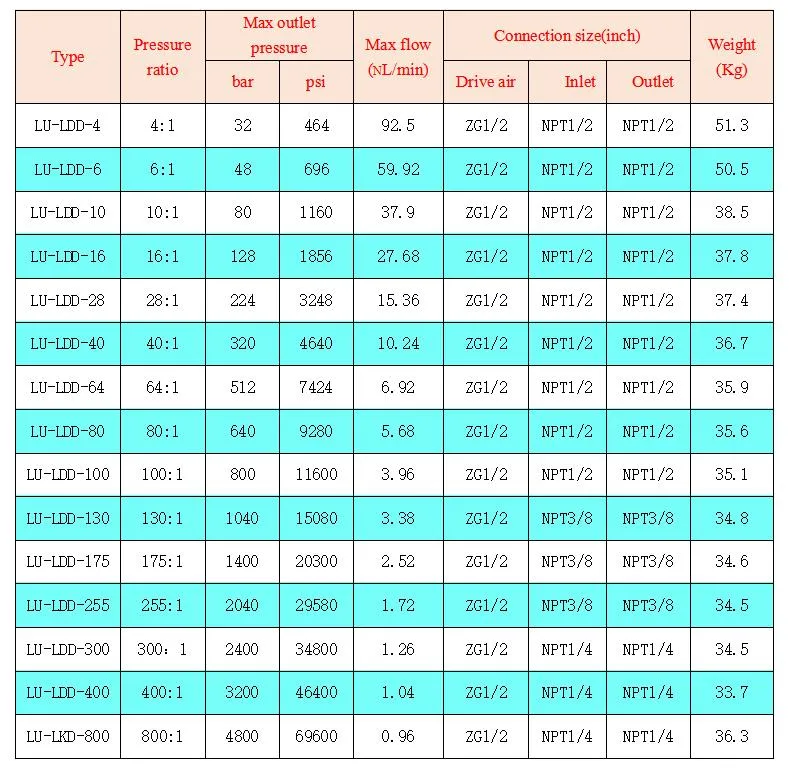

Technical Data Diagram
📷

Detailed Equipment Images

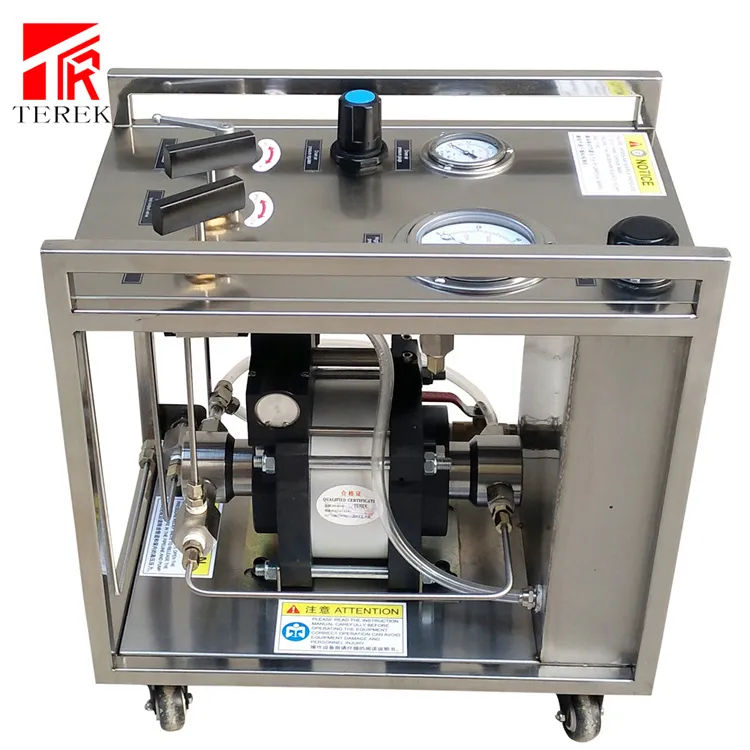

Detail View 1

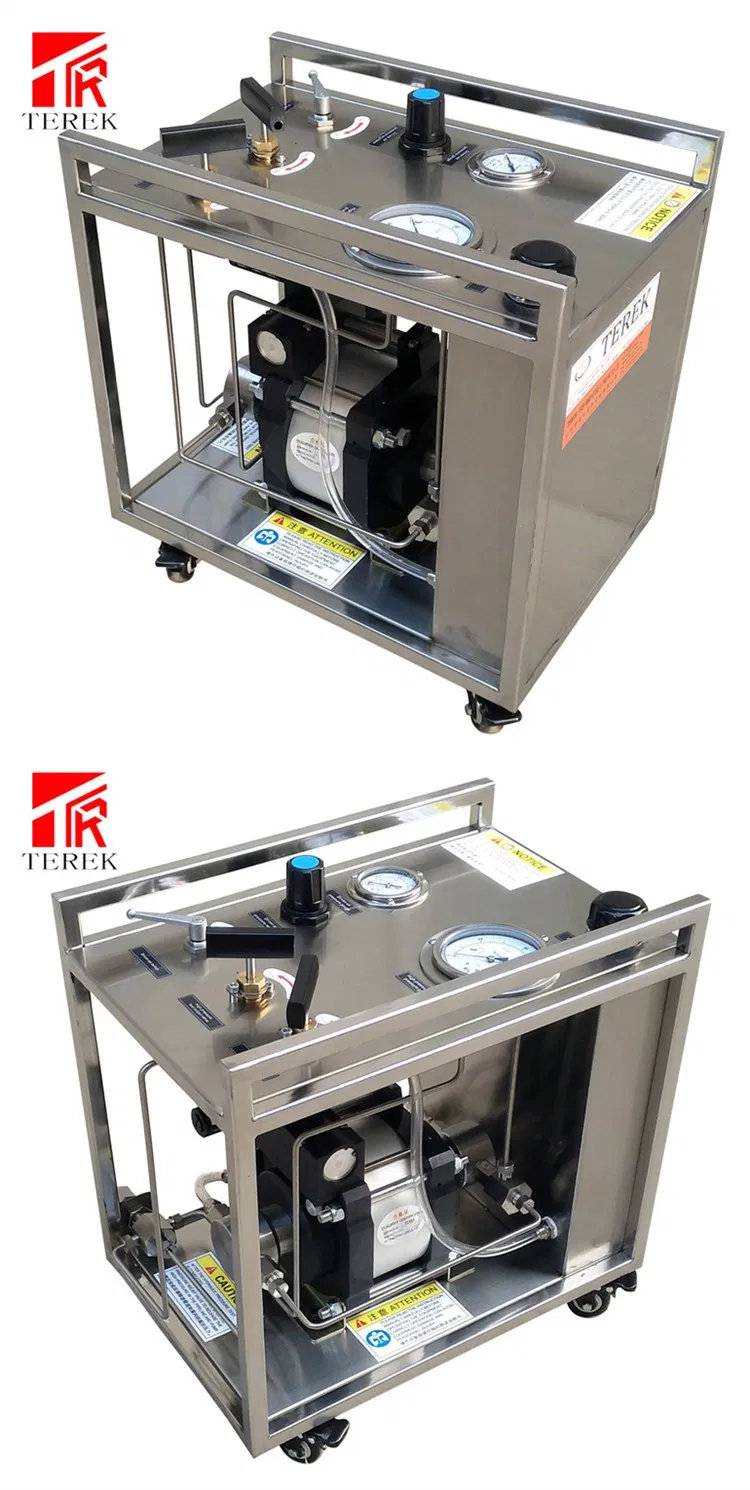

Detail View 2

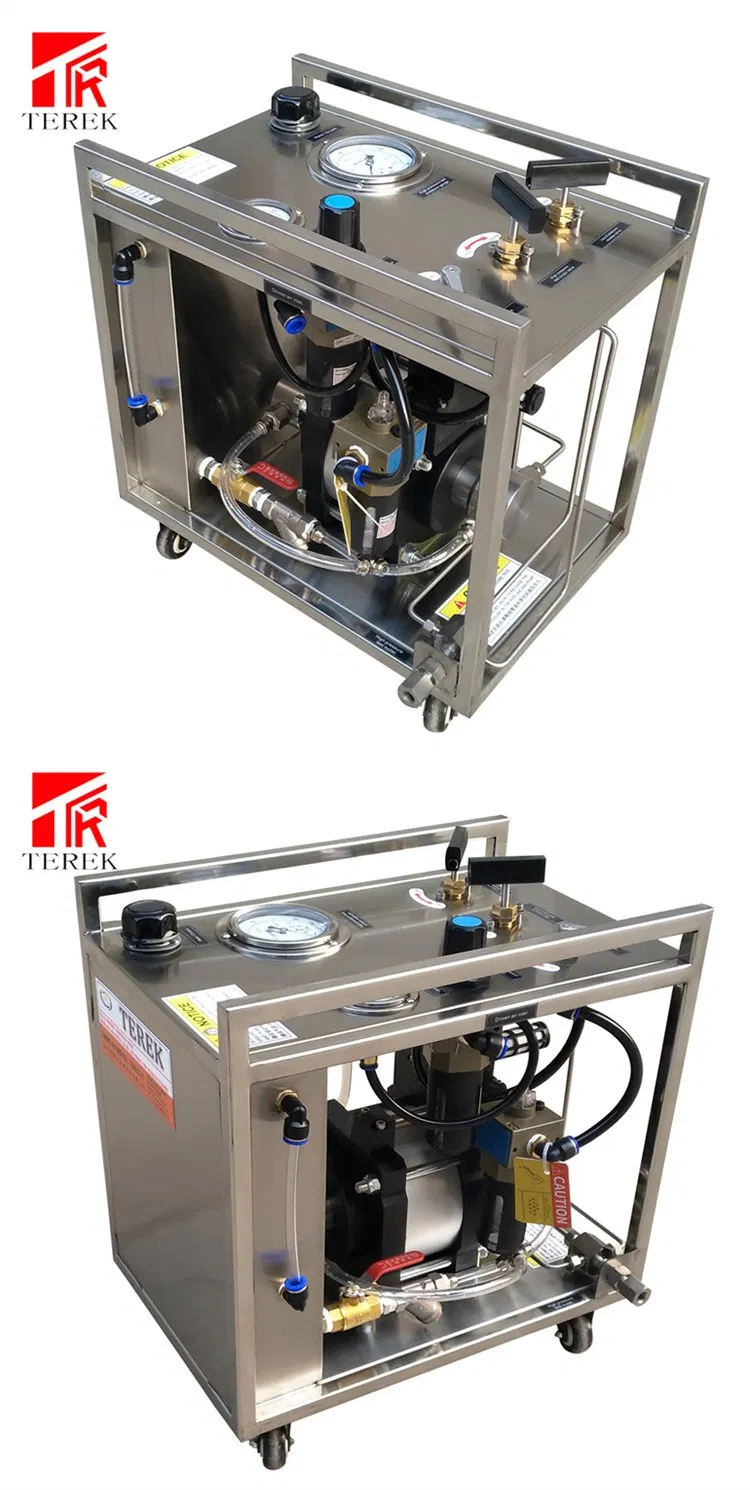

Detail View 3

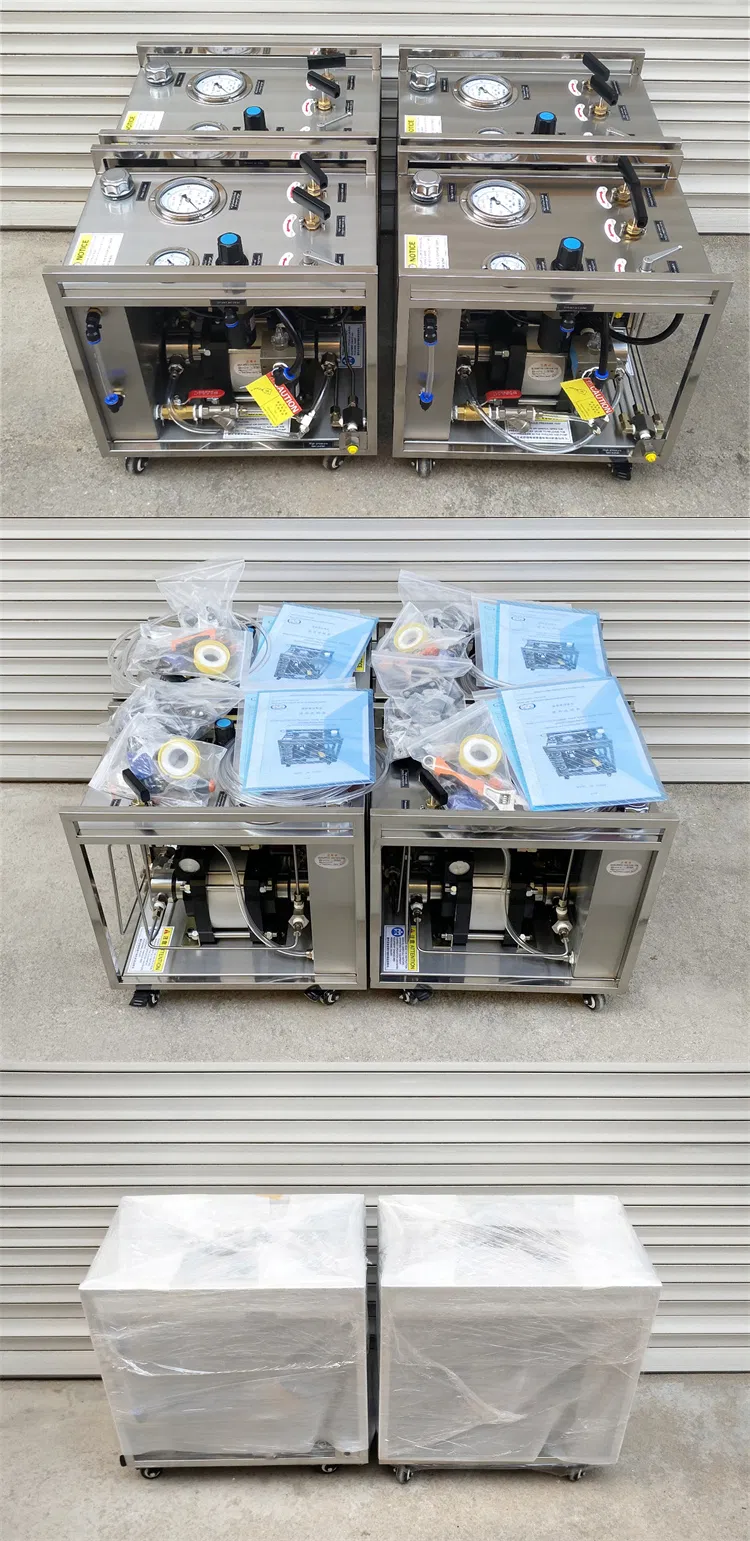

System Configuration
✔

Key Features & Advantages

  • ◈
    Adjustable Output: Easily achieve controllable output pressure and flow with high-quality pneumatic pumps.
  • ◈
    Corrosion Resistance: Contact sections are made of high-grade stainless steel, suitable for various chemical reagents.
  • ◈
    Safe Operation: Driven by air/gas; no electricity required, eliminating spark risks and ensuring explosion-proof safety.
  • ◈
    Compact Design: Small size and light weight with a professional, aesthetic stainless steel frame.
Product Features
?

Frequently Asked Questions

Are you a professional manufacturer?
Yes, we are a manufacturer focusing on continuous R&D, production, and quality control of fluid pressure equipment.
Can I obtain a detailed price list for specific models?
Certainly. Please specify the models and technical requirements you are interested in, and we will provide an official offer.
What are the standard payment terms?
For standard orders, we typically require 100% payment for samples or a 30% deposit for large orders with the balance due upon shipment documents.
How long does the production and delivery take?
The standard production time is 5-12 working days after the deposit is confirmed, depending on the order volume.
Do you offer product warranties?
We provide a comprehensive warranty and technical support to ensure the long-term reliability of our equipment.
Can the equipment be customized for specific fluids?
Yes, our systems can be customized with specific materials to handle various chemical reagents, oils, or water.
Packaging
Shipping

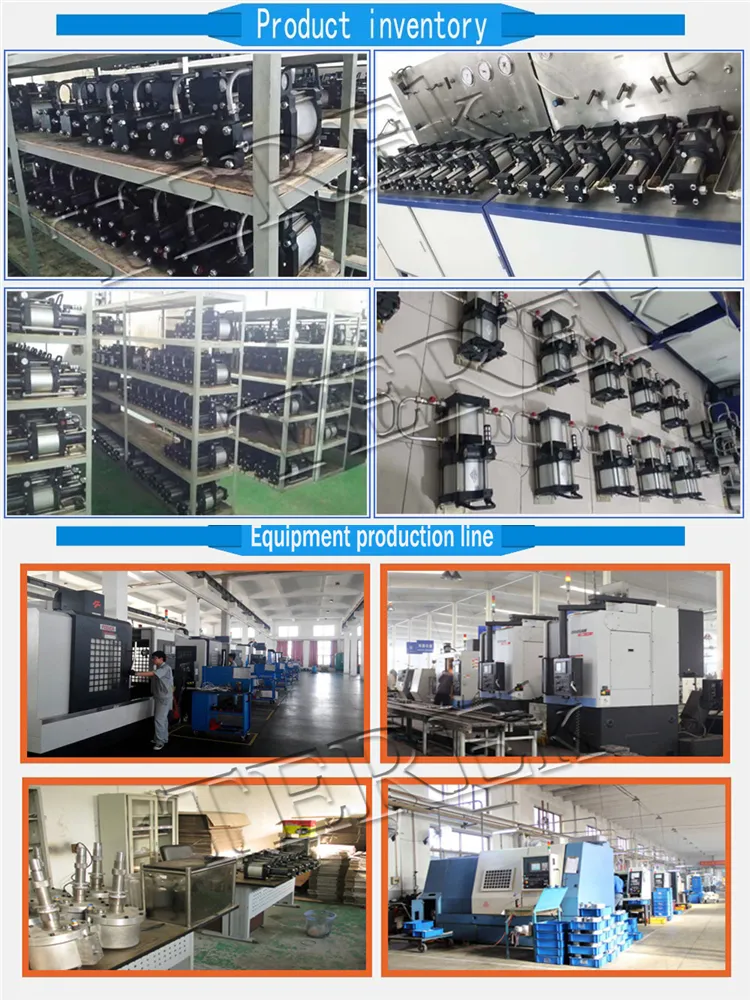

Workshop View
