Product Description

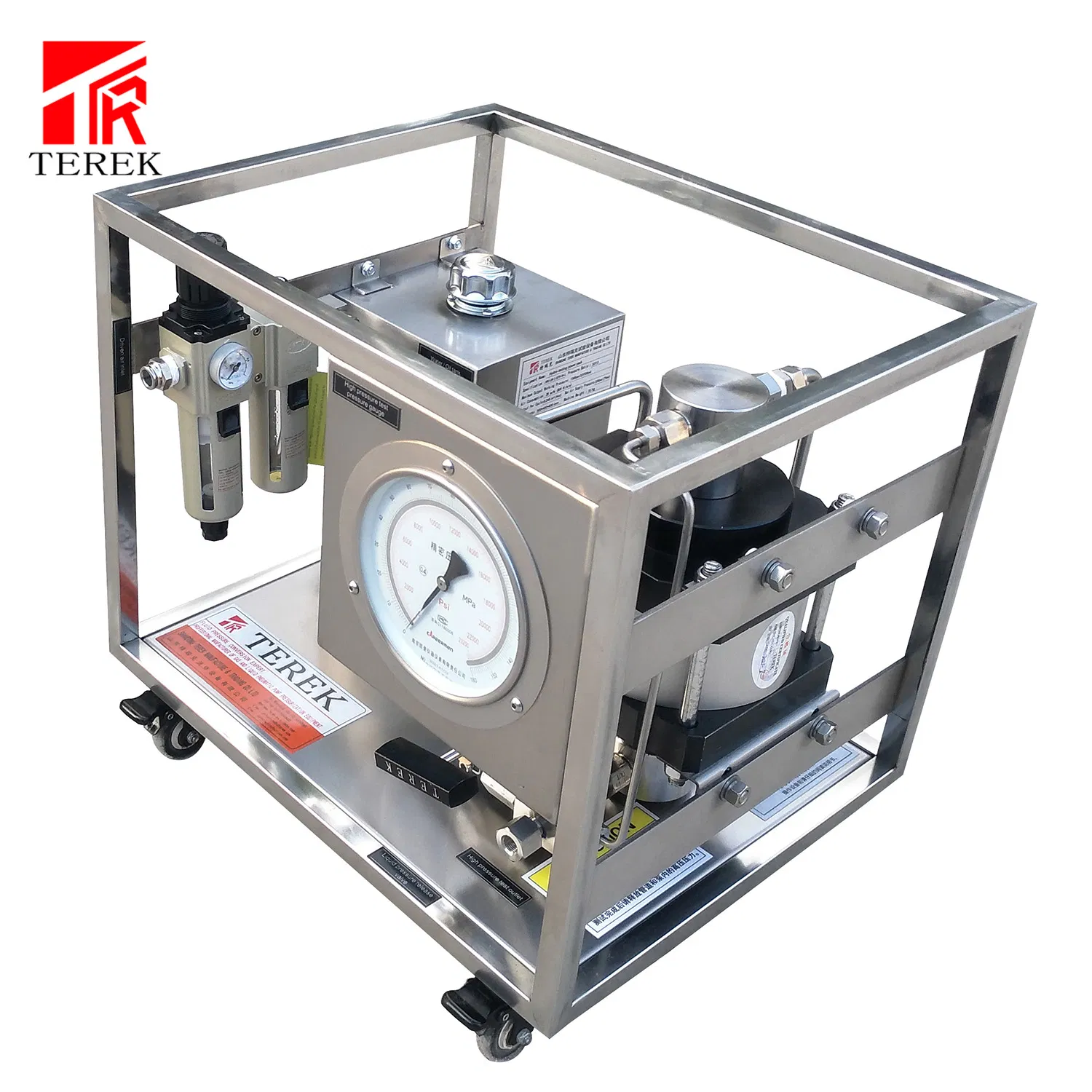

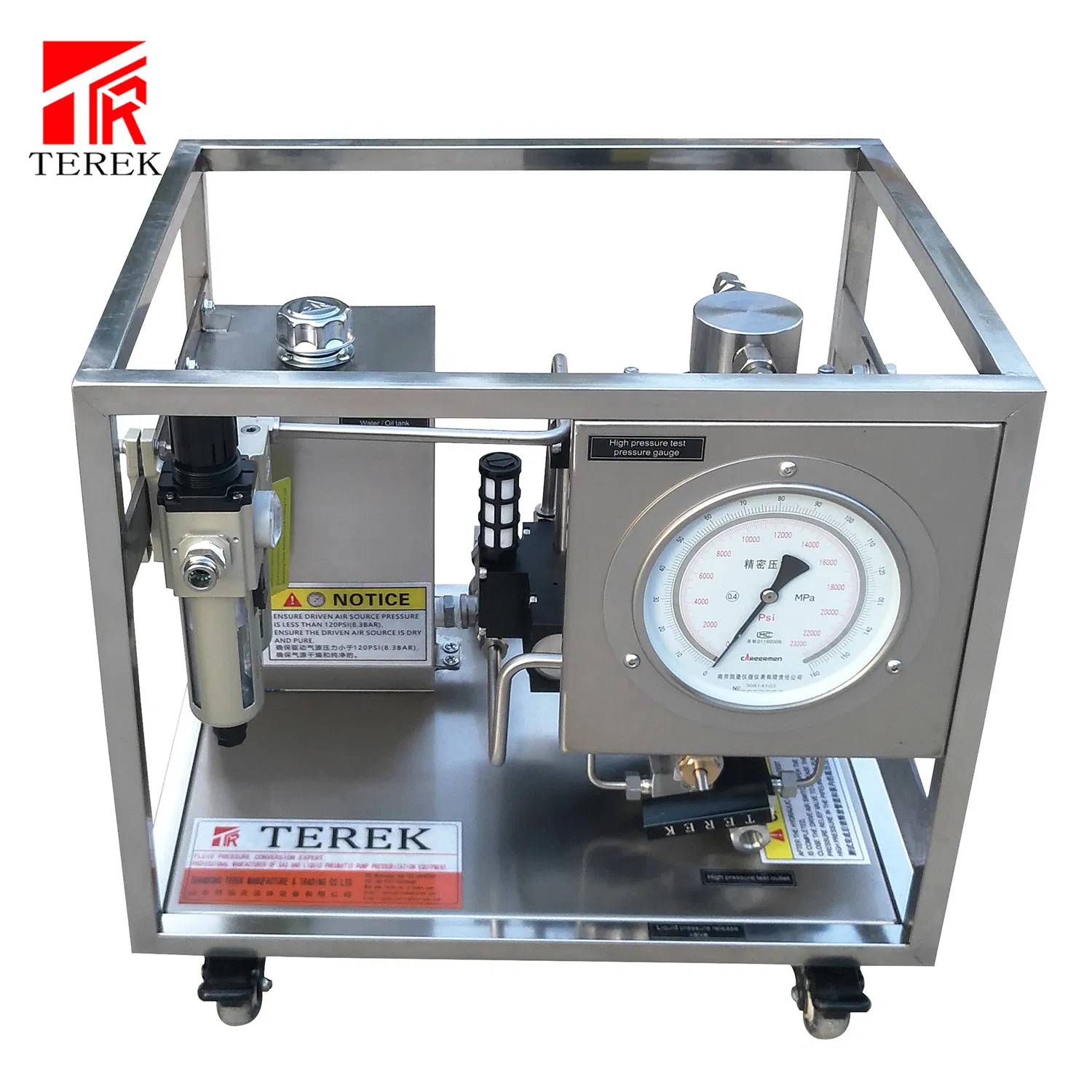

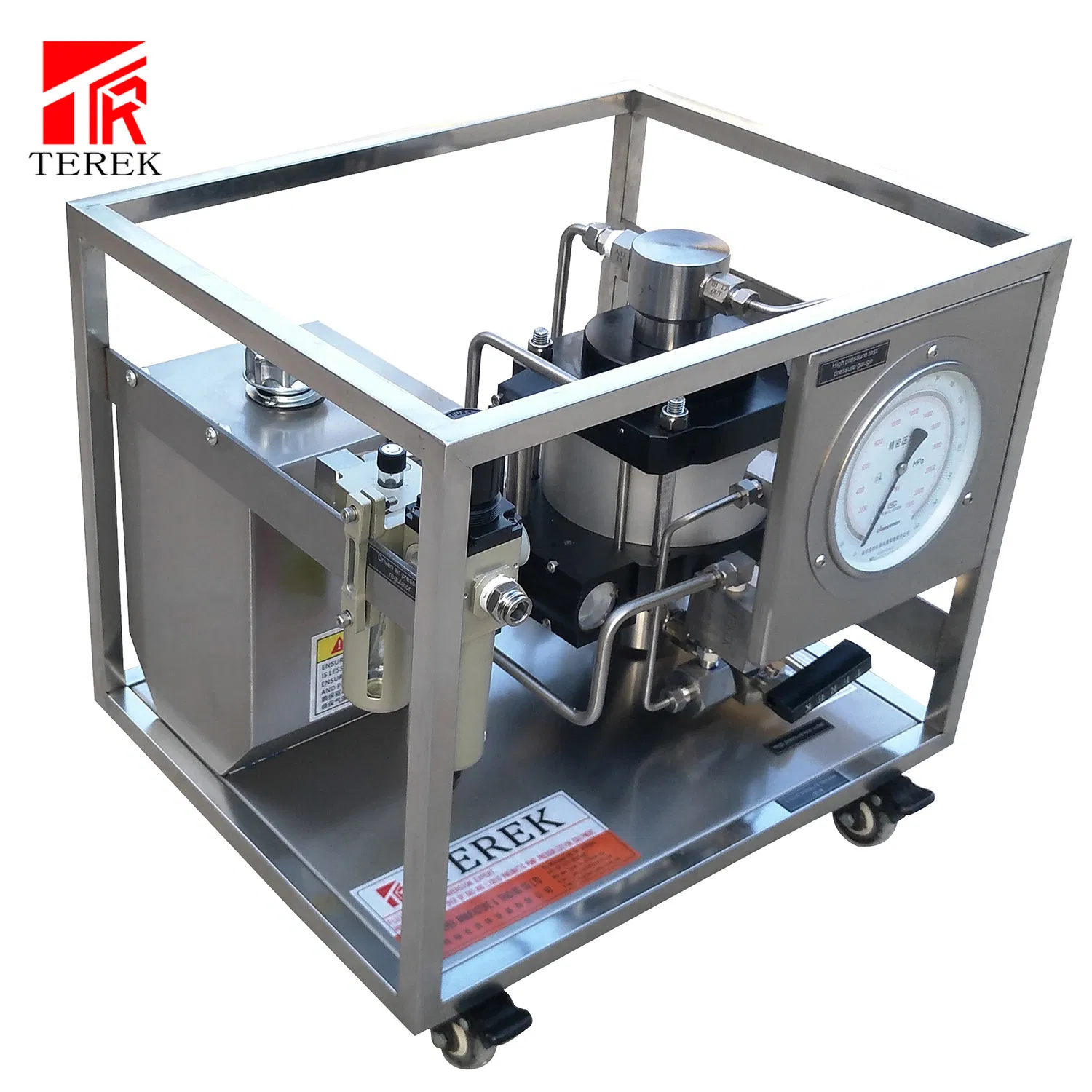

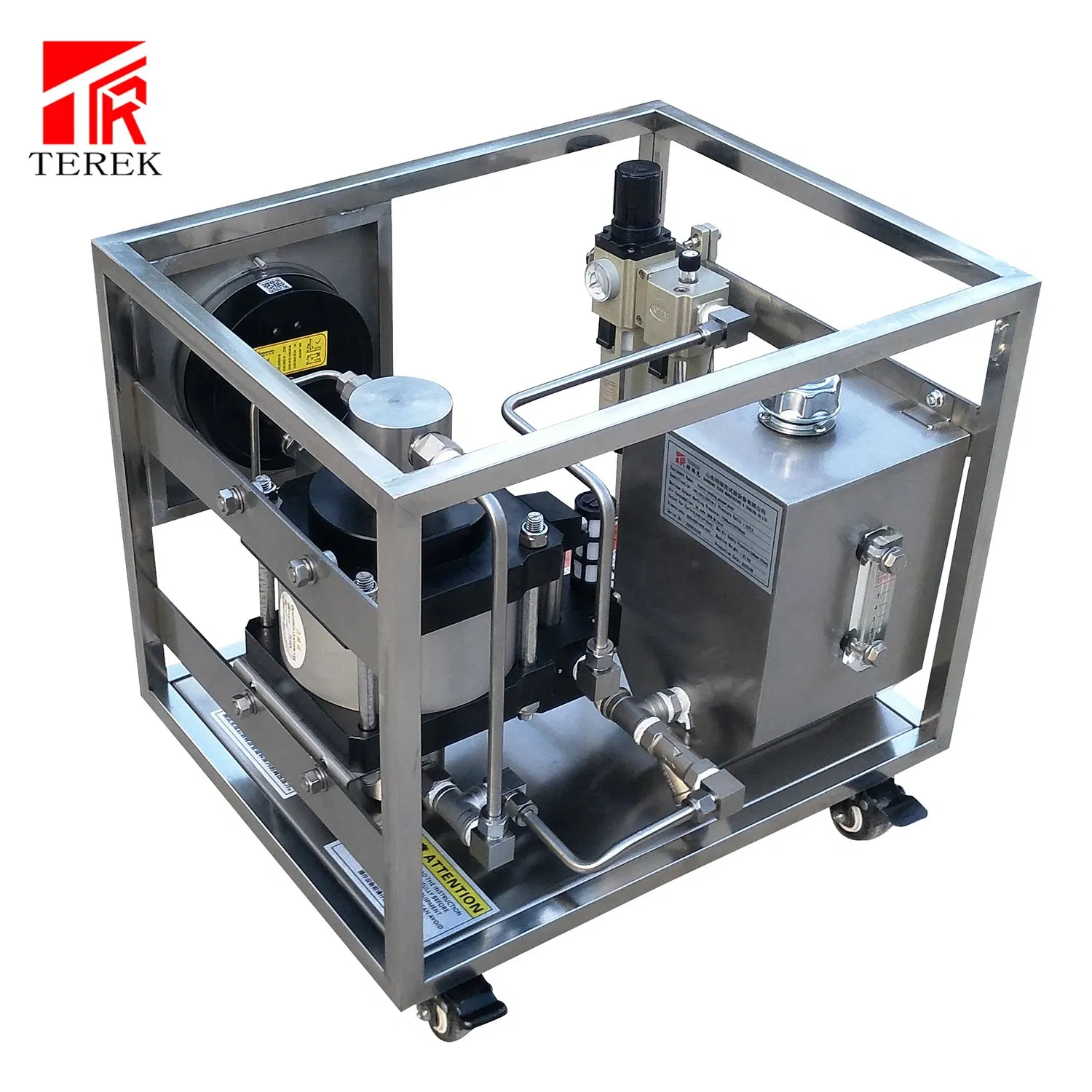

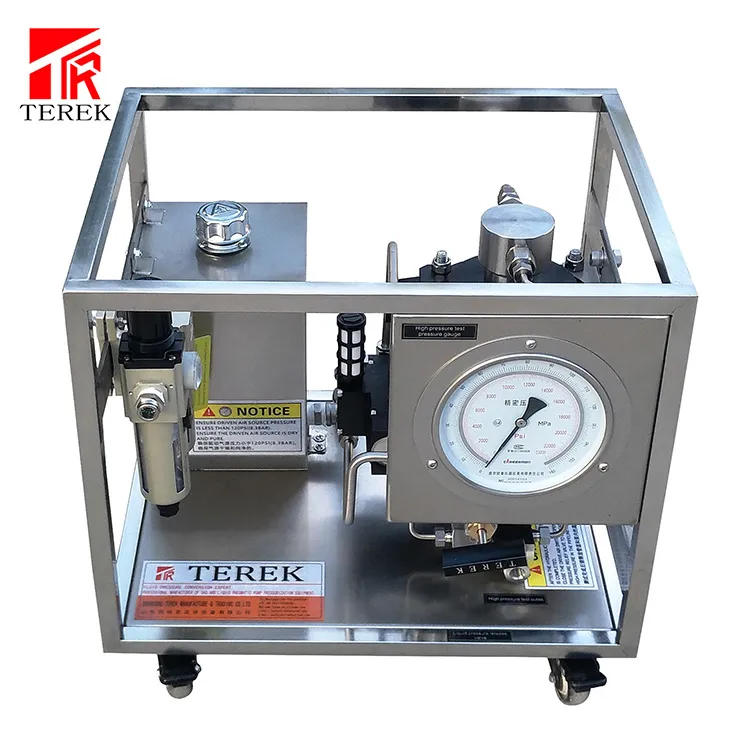

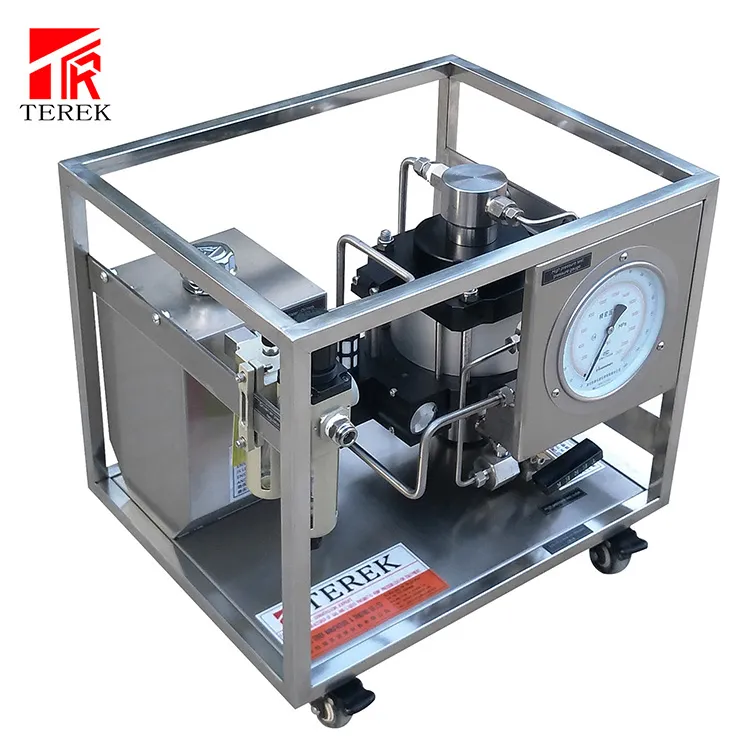

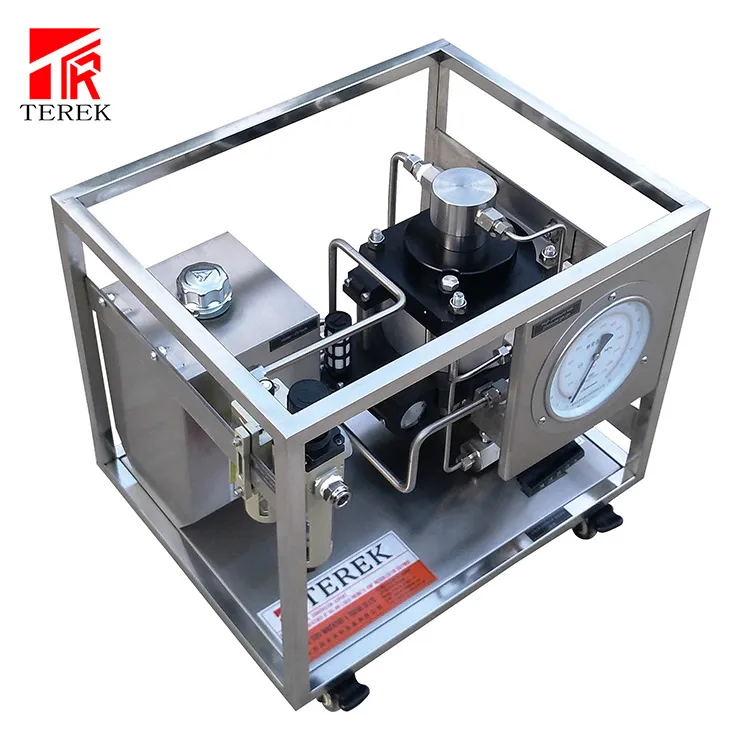

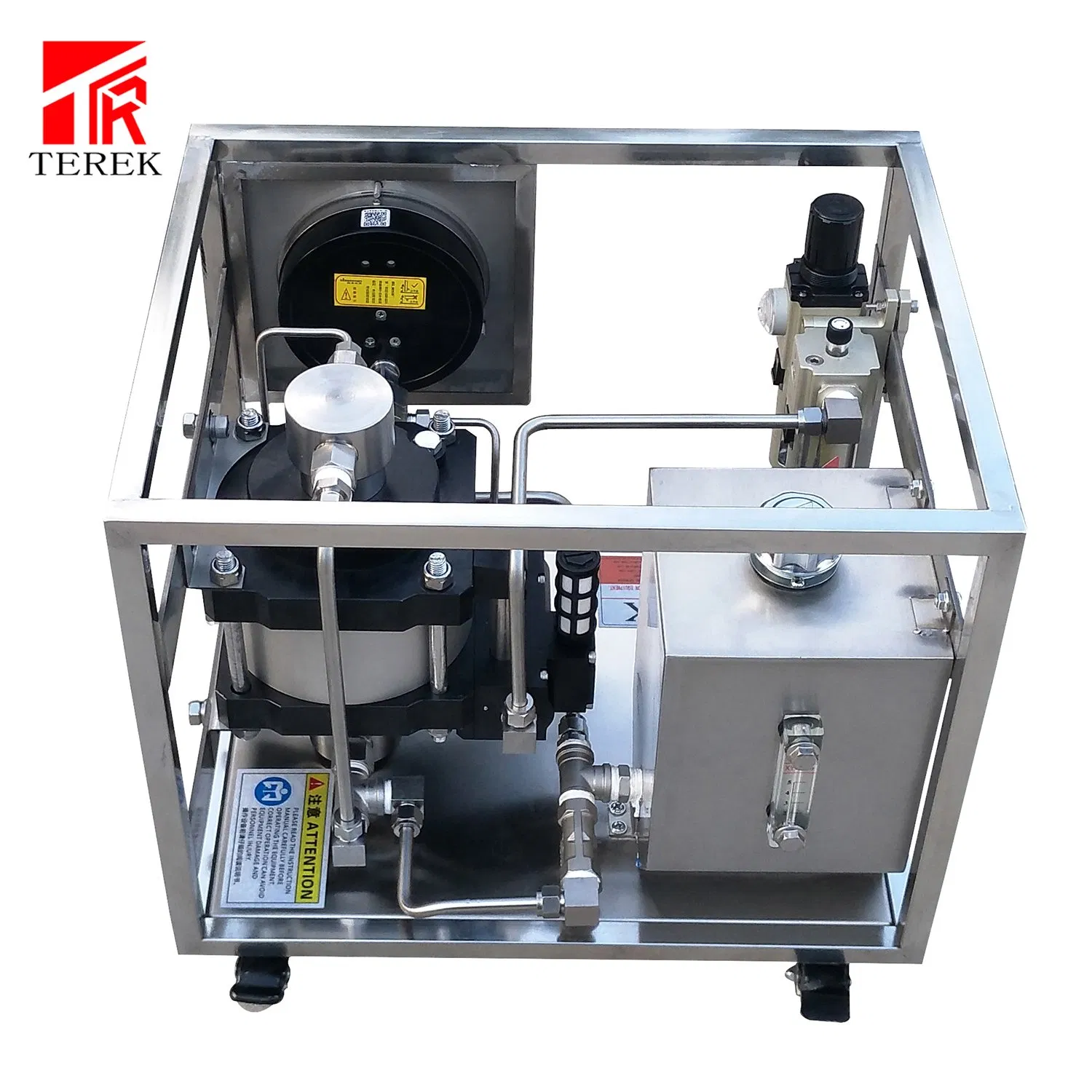

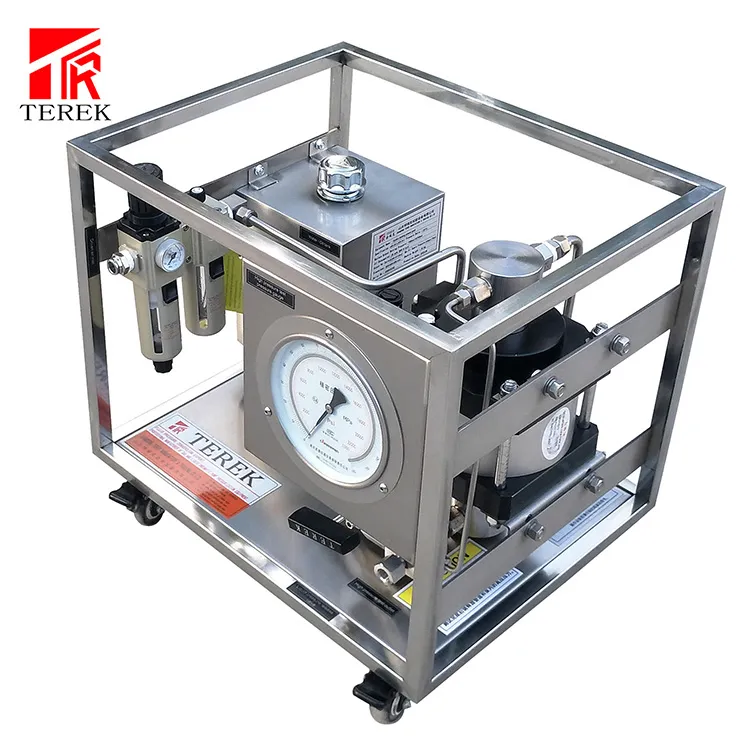

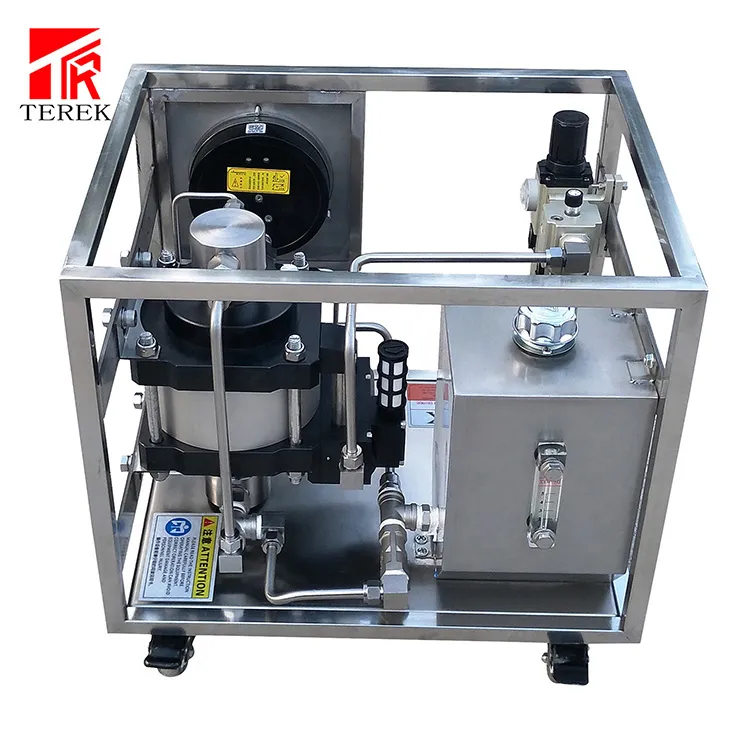

The fluid pressurized control cabinet is equipped with a fluid booster pump, drive air water filter, pressure regulator valve, pressure gauges, and a manual pressure relief valve. All core components are integrated within a closed stainless steel cabinet or frame for durability and protection. The control panel features clearly marked gauges and valves for intuitive operation.
Ideal working high pressure is achieved by simply adjusting the driving air pressure. When the driving air pressure and output pressure reach a balance, the pump automatically stops, maintaining the output pressure at the preset value. This system is perfect for pressure testing components in research, industrial, and institutional settings.
🛠️

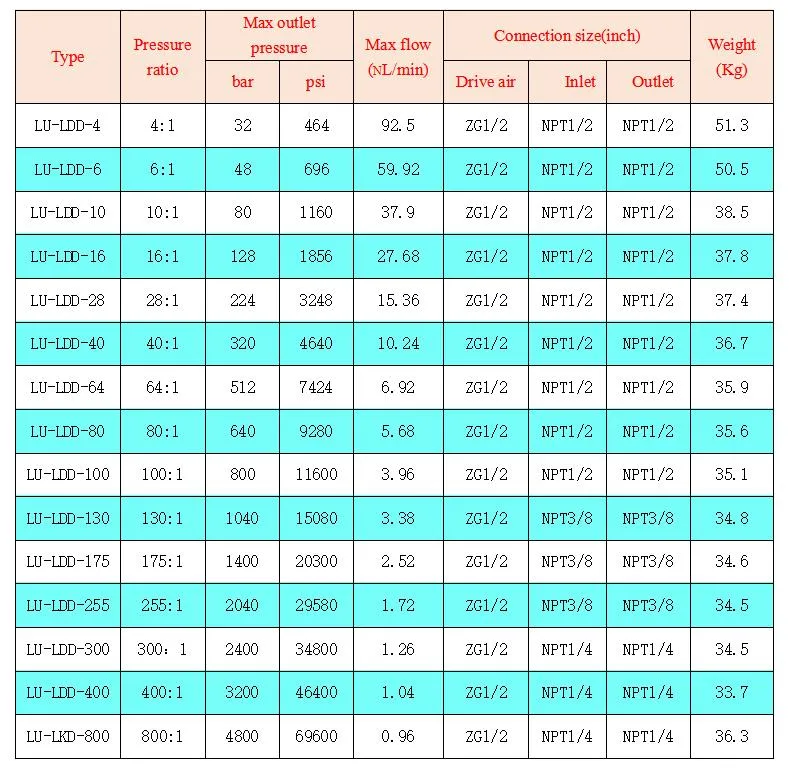

Technical Parameters
These pumps feature a large air piston connected to a smaller diameter plunger. The pressure ratio determines the maximum outlet pressure. The LDD series utilizes a double-acting, single air drive head design for high efficiency.
| Product Name | Pneumatic liquid booster pump Hydrostatic pressure testing bench |
| Model | LU-LDD-100 |
| Pressure Ratio | 100:1 |
| Medium | Hydraulic oil or water |
| Drive Air Source Pressure | 3-8 bar |
| Max Liquid Outlet Pressure | 800 bar / 11600 psi |
| Pressure Control Accuracy | Less than 1% F.S |
| Pressure Measurement Accuracy | 0.4 pressure gauge |
| Material (Frame) | 304 Stainless steel |
| Equipment Dimension | 500*370*520 mm |
| Outlet Connection | NPT 1/4 Internal Thread |
⚙️

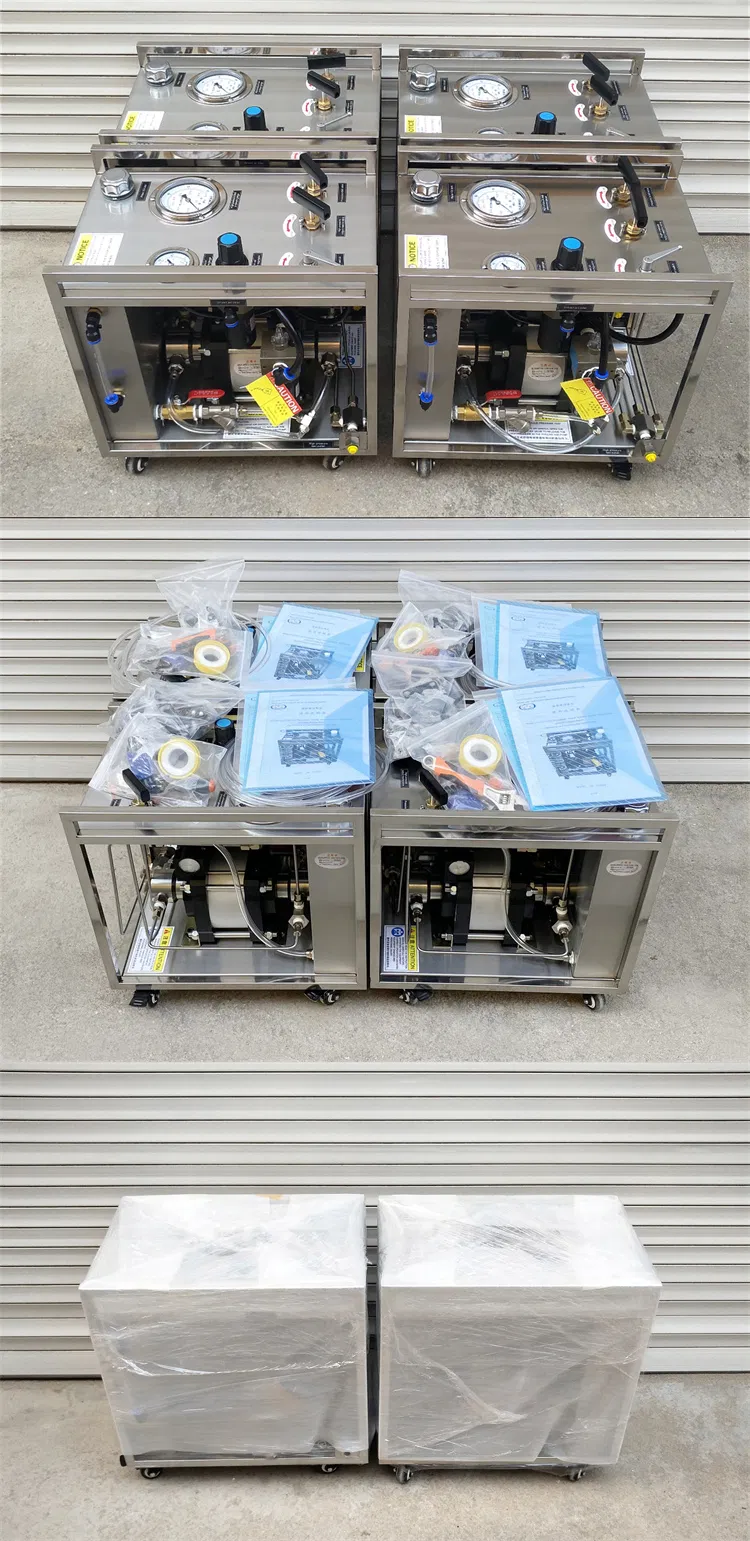

System Configuration & Features
Main Components
The system includes a 15L water tank, high-precision pressure gauges, liquid and air filters, air regulating valves, control valves, and a stainless steel cabinet. The contact liquid section is constructed from high-grade stainless steel for superior corrosion resistance.
Adjustable Control: Achieve precise output pressure and flow rates easily.
High Safety: Air-driven operation requires no electricity, eliminating spark risks (explosion-proof).
Durable Design: Compact structure with stainless steel components for long service life.
Auto-Operation: Pumps restart automatically if outlet pressure drops below set levels.
🤝
Our Professional Services
Consultation: Expert advice on machines, materials, and packing solutions.
Customization: Tailored machine configurations based on specific client requests.
Documentation: Full operation manuals and working videos provided.
Warranty: One-year comprehensive warranty and free wearing parts included.
❓
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a manufacturer focusing on continuous R&D, production, and quality-controlled service supply.
How can I obtain a price list?
Please select the specific models and detailed requirements you are interested in, and we will send our available offered prices.
Do you have these items in stock?
We generally maintain stock for common models. For bulk orders, production time will be communicated before payment.
What are the available payment terms?
For sample orders, we require 100% payment before production. For large orders, a 30% deposit is required, with the balance paid after seeing the BL copy.
How long is the delivery time?
Delivery typically takes 5-12 working days after the deposit is confirmed, depending on the order size.
What is the warranty period?
We provide a comprehensive warranty for our equipment to ensure reliable operation at your destination.
