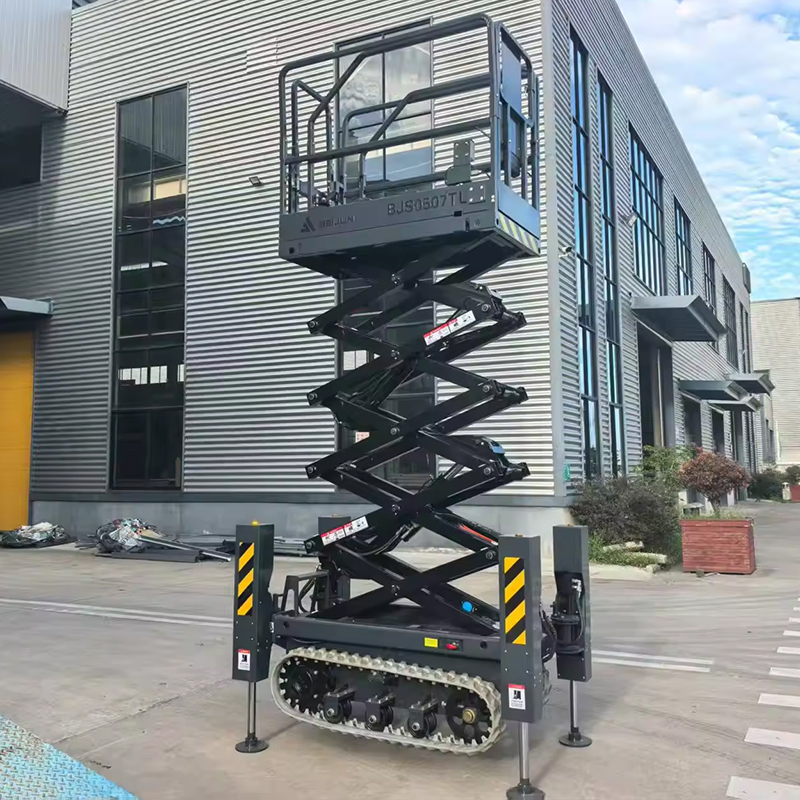

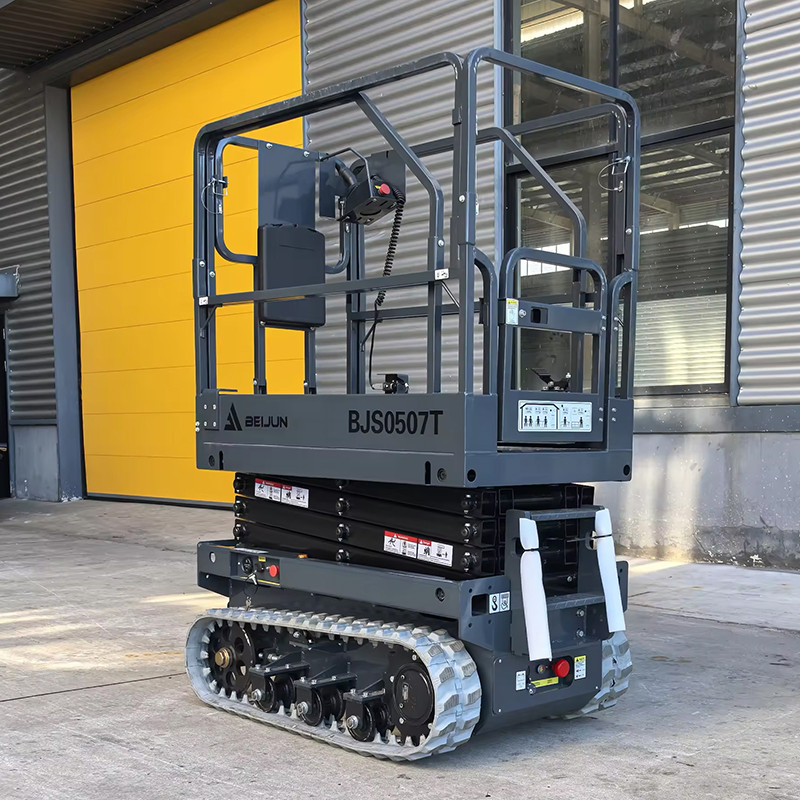

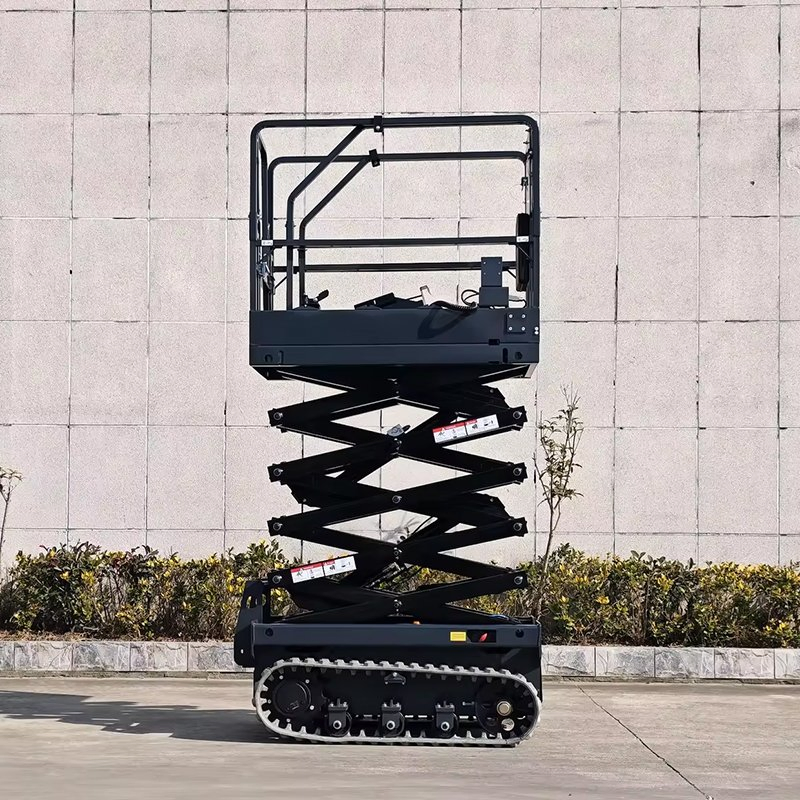

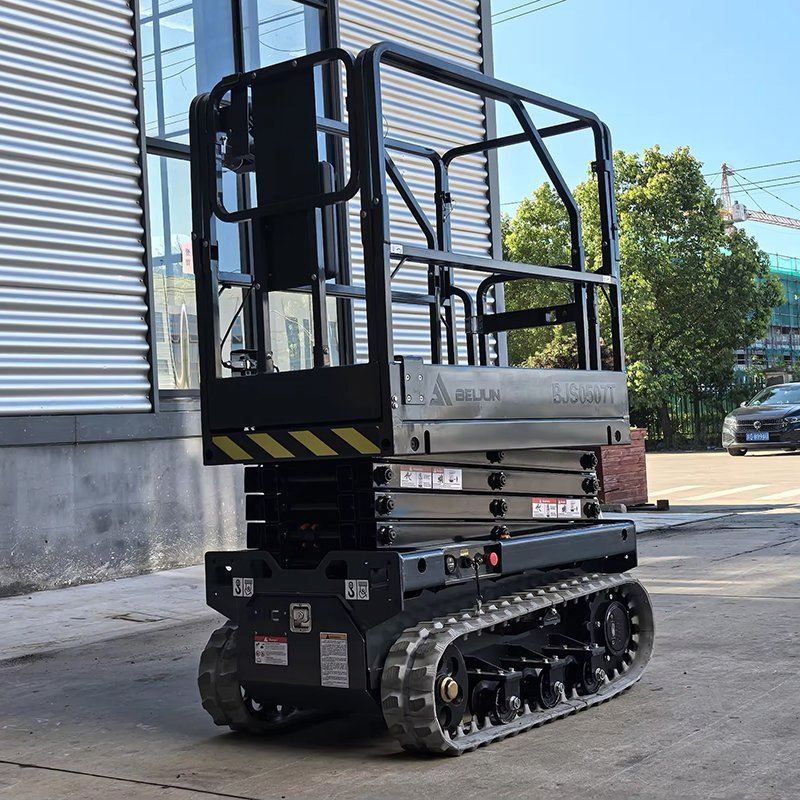

New Mobile Manual Home Lifting Platform Mini Crawler Hydraulic 200kg Lift Electric Stair Scissor Lift

1 / 5

New Mobile Manual Home Lifting Platform Mini Crawler Hydraulic 200kg Lift Electric Stair Scissor Lift

Customization:	Available
After-sales Service:	Online Support
Warranty:	1years

Send Inquiry

Product Description

Basic Specification

Model NO.

BJ-0507T

Application

Workshop, Warehouse, Building Crane

Lift Mechanism

Scissor Lift

Carrying Capacity

230kg

Moves

Self-propelled

Driven Type

Hydraulic

Feature

Explosion-Proof, Insulating

Certification

CE, ISO 9001

Dimensions

1560*880*1520mm

Max Occupancy

2 Persons

Electric Motor

24V/2×1kw

Product Overview

Technical Parameters

Model	BJS0507T	BJS0607T	BJS0610T	BJS0810T	BJS1012TL	BJS1212TL	BJS1416TL
Dimensions
Max operating height (m)	6.6	7.8	8.3	10.3	12	14	16
Max platform height (m)	4.6	5.8	6.3	8.3	10	12	14
Platform length (mm)	1400	1400	1800	1800	2270	2270	2670
Platform width (mm)	760	780	800	800	1120	1120	1120
Overall Height (Unfolded)	1950	2140	2160	2260	2700	2700	2840
Performance
Rated load capacity (kg)	230	230	300	300	450	450	450
Max platform Occupancy	2	2	2	2	3	3	3
Gradeability (%)	30	30	30	30	30	30	30
Track Type	Rubber	Rubber	Rubber	Rubber	Steel	Steel	Steel
Weight
Weight (kg)	816	1055	1640	1745	3460	3760	4760

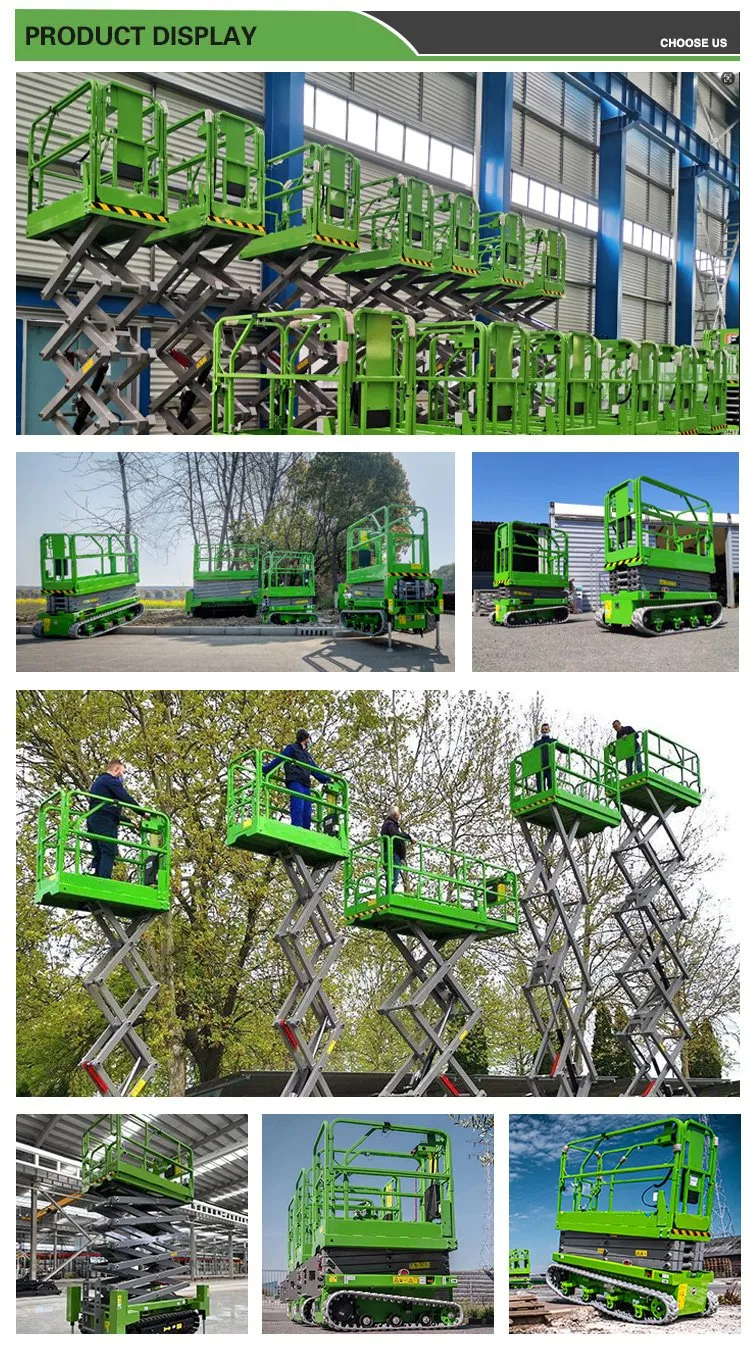

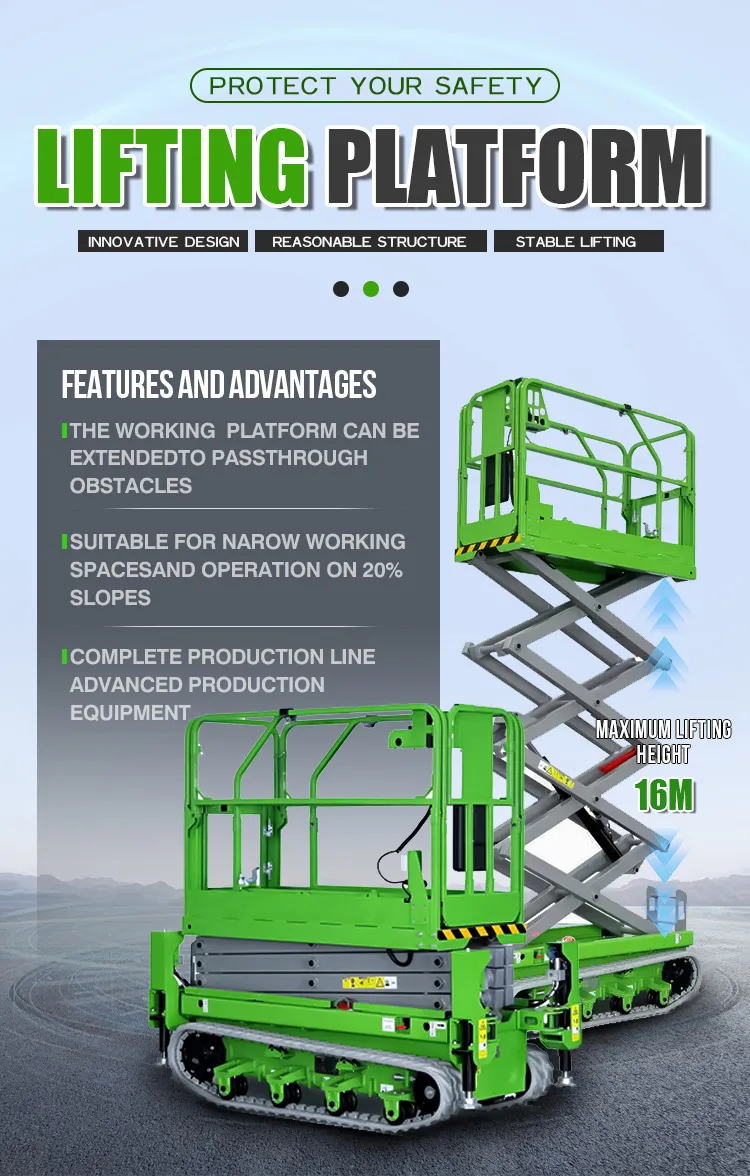

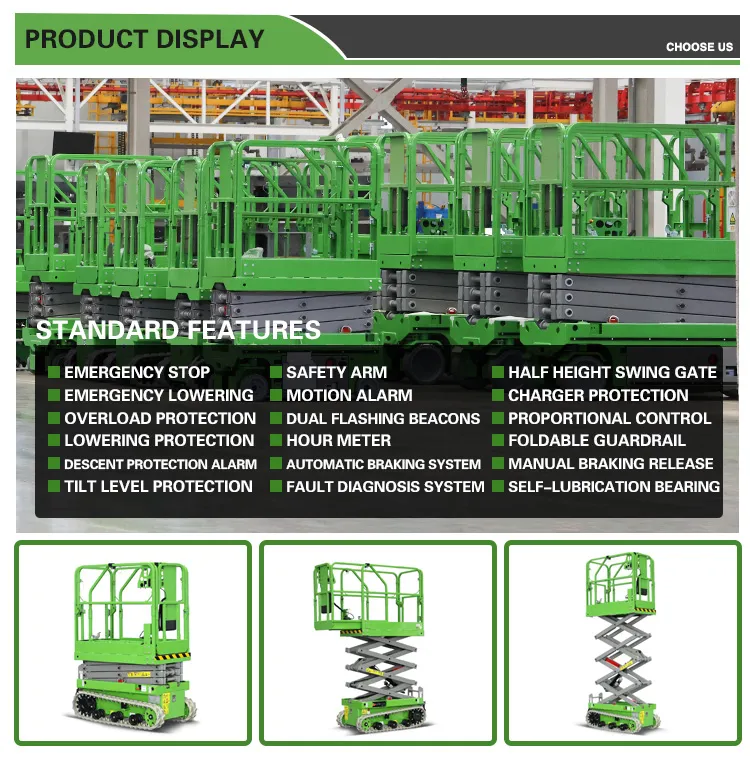

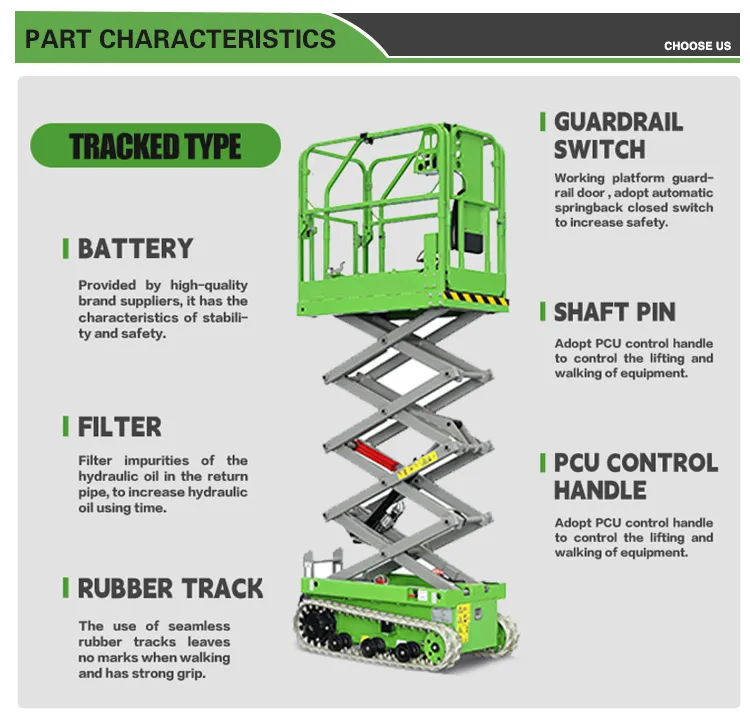

Product Features & Display

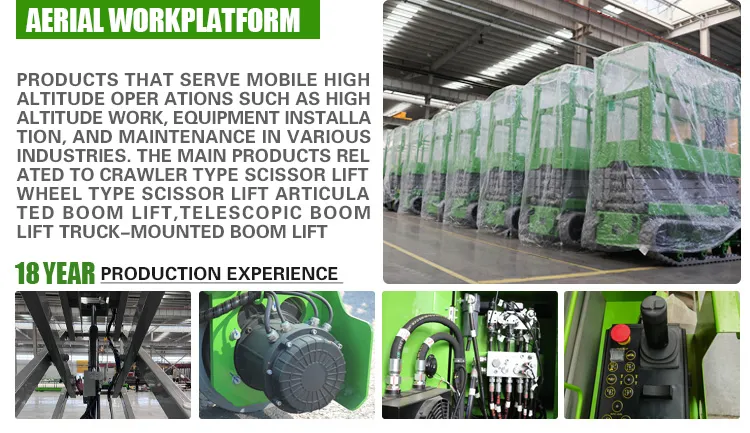

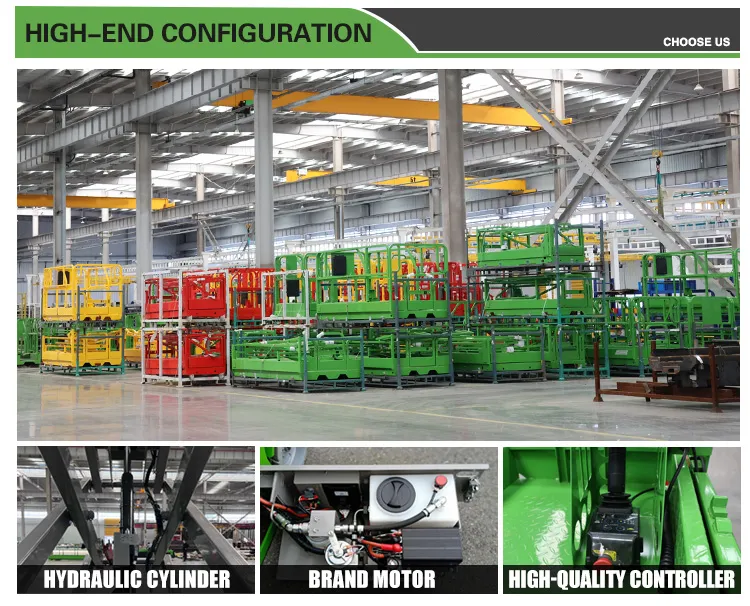

Manufacturing & Quality Control

Frequently Asked Questions

What is the maximum working height available for these lifts?

Our scissor lift series offers a wide range of working heights, starting from 6.6 meters up to a maximum of 16 meters with the BJS1416TL model.

Are these lifts suitable for indoor use on sensitive floors?

Yes, models like the BJS0507T and BJS0810T utilize non-marking rubber tracks, which are ideal for indoor workshops and warehouses where floor protection is necessary.

What is the gradeability of the equipment?

All models in this series feature a 30% gradeability, allowing them to navigate slopes and uneven terrain found in construction environments effectively.

What safety certifications does the product hold?

The products are fully certified with CE and ISO 9001 standards, ensuring they meet rigorous international safety and quality requirements.

Can the platform be extended for more workspace?

Yes, each platform includes an extension part ranging from 600mm to 1100mm depending on the model, providing additional reach and workspace for operators.

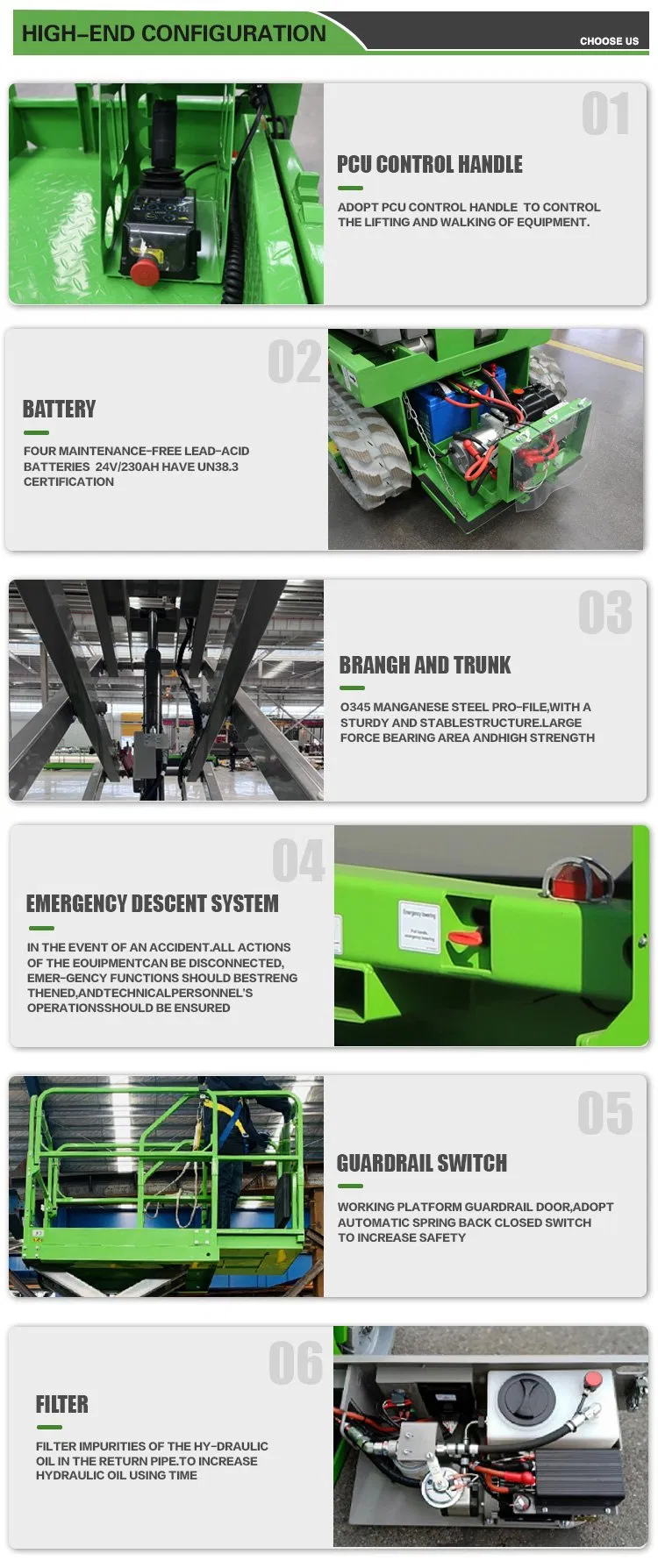

What kind of battery is used for power?

The lifts are powered by maintenance-free lead-acid batteries (ranging from 24V to 48V configurations), ensuring long-lasting operation and minimal upkeep.
