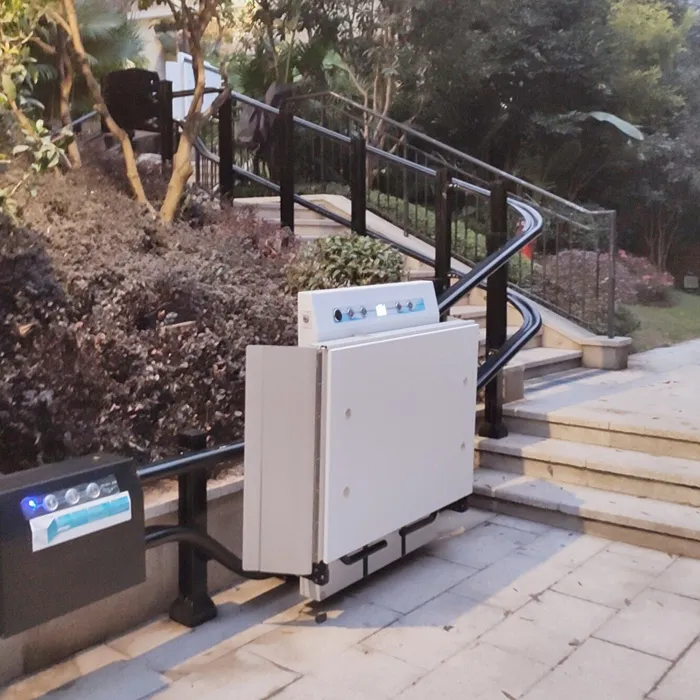

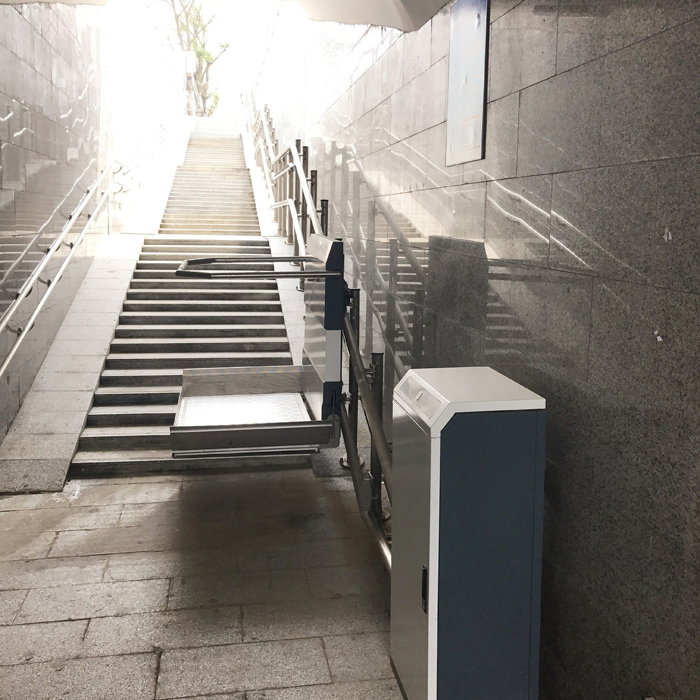

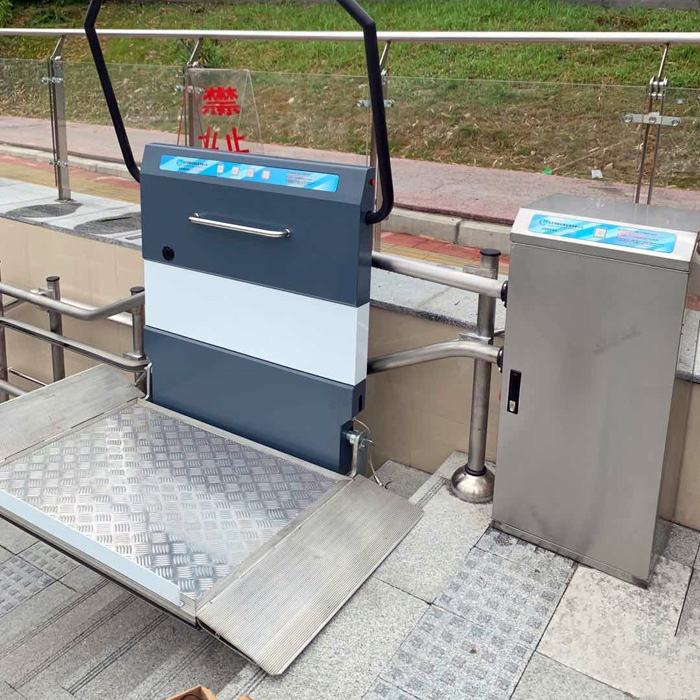

Inclined wheelchair lifts combine the best features of stairlifts and vertical platform lifts to provide transportation for wheelchairs and their users along the incline of an existing staircase.
These lifts can carry a passenger with a wheelchair up and down a single flight of straight stairs by traveling along a rail system mounted alongside the stairs. Suitable for home or commercial applications, they are ideal for environments where an elevator or vertical platform lift cannot be easily accommodated.

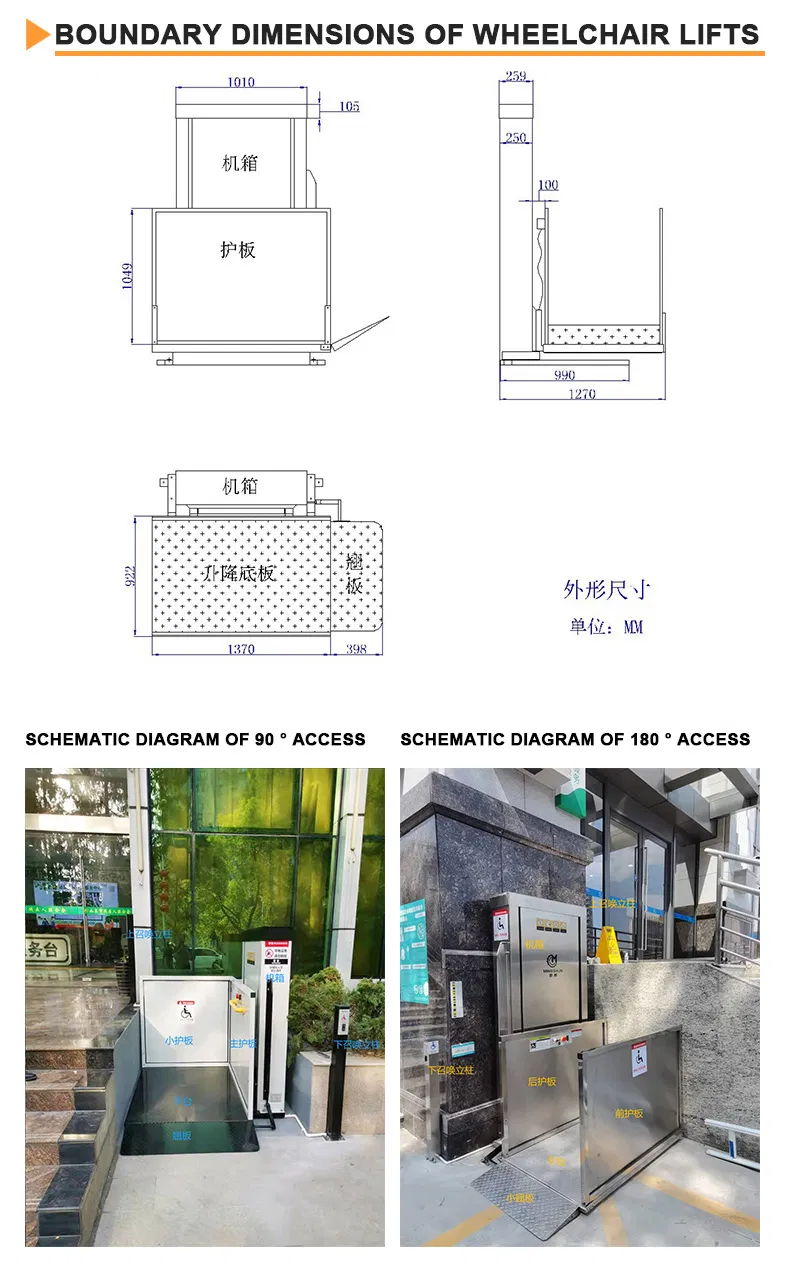

| Standard Platform Dimensions | 1100MM×800MM |
| Loading Capacity | 250KG |
| Speed | 0~7M/MIN (Slows down at landings) |
| Drive System | 1.5KW-VVVF compact drive system |
| Guide Rail | Independent drive system integrated with stainless steel track and column |
| Power | AC 220/380V 50Hz-60Hz, 15A |
| Safety Arm | Fully automatic safety arm mounted 880mm above the platform |
| Obstacle Detection | Safety sensor panels on bottom and ramps to stop in case of obstacles |
| Control System | PLC with emergency stop and manual toggle key |
| Platform Weight | ≈75 kg | Manned Size | 1100mm*800mm |
| Guardrail Height | 1000mm | Button Height | 1125mm |
| Folded Thickness | <350mm | Folding Speed | <30s |
| Battery Capacity | 7AH*2 | Max Safe Voltage | DC 29.6V |
| Platform Shell | Stainless steel | Pedal | Aluminum alloy profile |
| Action Button | Brushed Stainless steel | Floor | Aluminum spray / PVC anti-skid |
The inclined wheelchair lifting platform is a barrier-free safety device installed in corridor systems. It uses motor traction to move along the track and carry passengers. It is essential equipment for buildings to assist wheelchair users or those with difficulty climbing stairs.
