| Model NO. | LU-LKD |
| Max Diameter of Workpiece | <500mm |
| Mass Scope of Workpiece | >20000kg |
| Type | Compression Testing Machine |
| Power Source | Air Driven |
| Accuracy Grade | 0.5 |
| Load Way | Pneumatic Hydraulic |
| Working Medium | Water or Hydraulic Oil |
| Material | Stainless Steel |
| Pressure Control Accuracy | Less Than 1%F.S |
| Origin | Mainland China |
The structural design of the fluid pressurized control cabinet is compact. According to special requirements, the air driven fluid booster pumps, valves, control switches, and other precision accessories are assembled in a frame or closed cabinet.
The test machine is equipped with a pressure recorder, allowing for the capture of all testing pressure data, which is essential for systematic data management. The pump stops automatically when the output pressure reaches the preset value and restarts if the outlet pressure drops slightly or air drive pressure increases.
Utilizing aluminum alloy and stainless steel materials, these pumps offer high compatibility with various liquids including oil, water, and chemical applications. High-quality seals ensure a long service life.

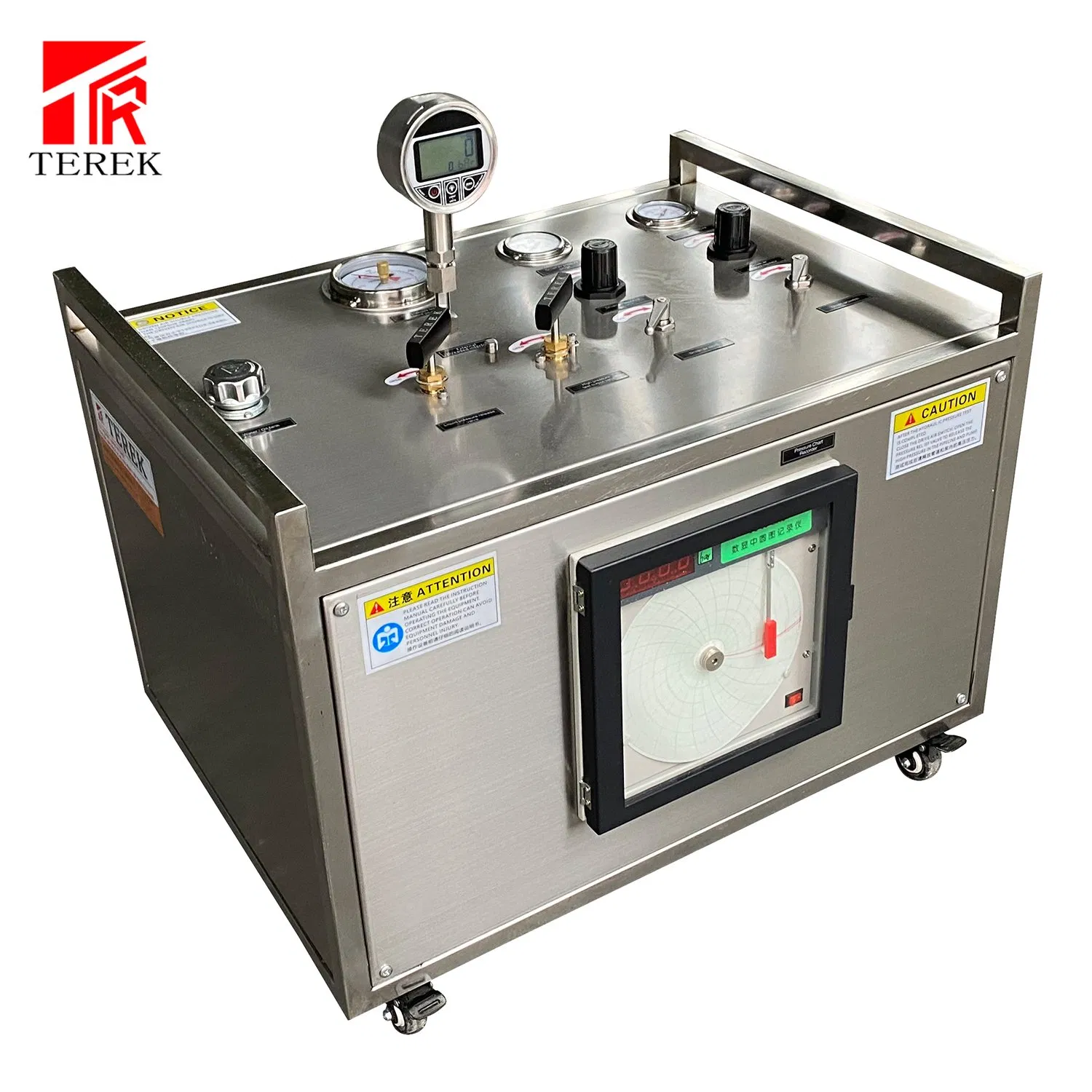

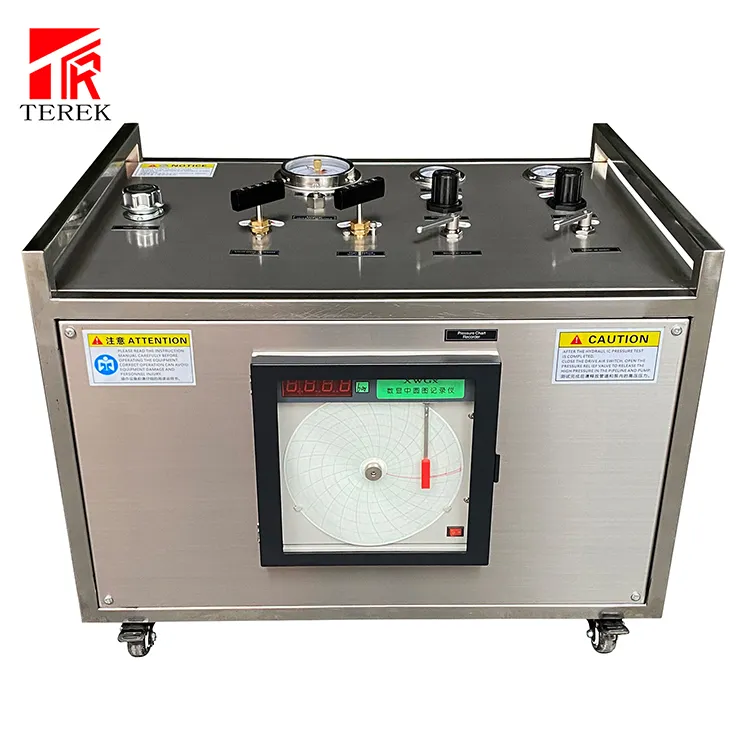

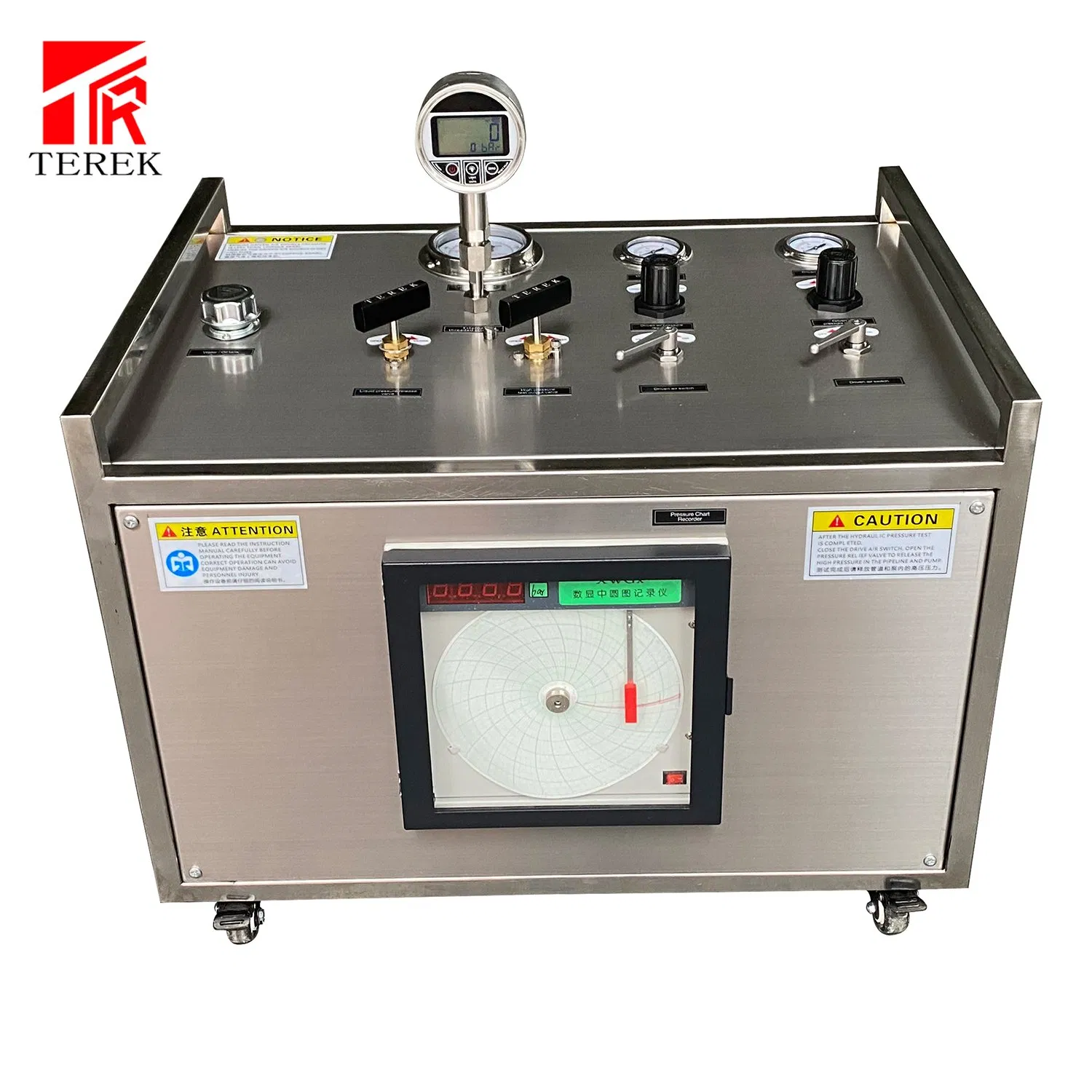

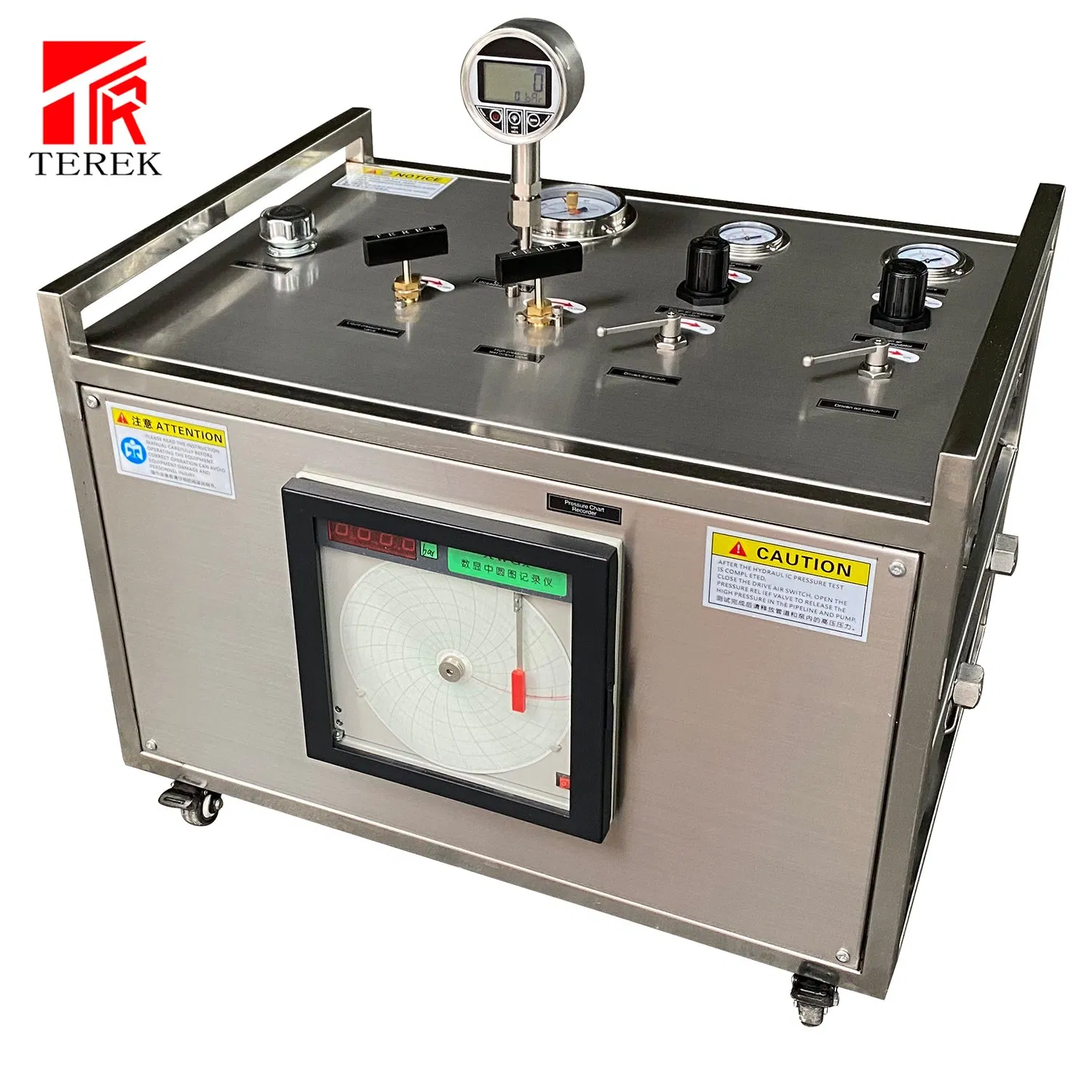

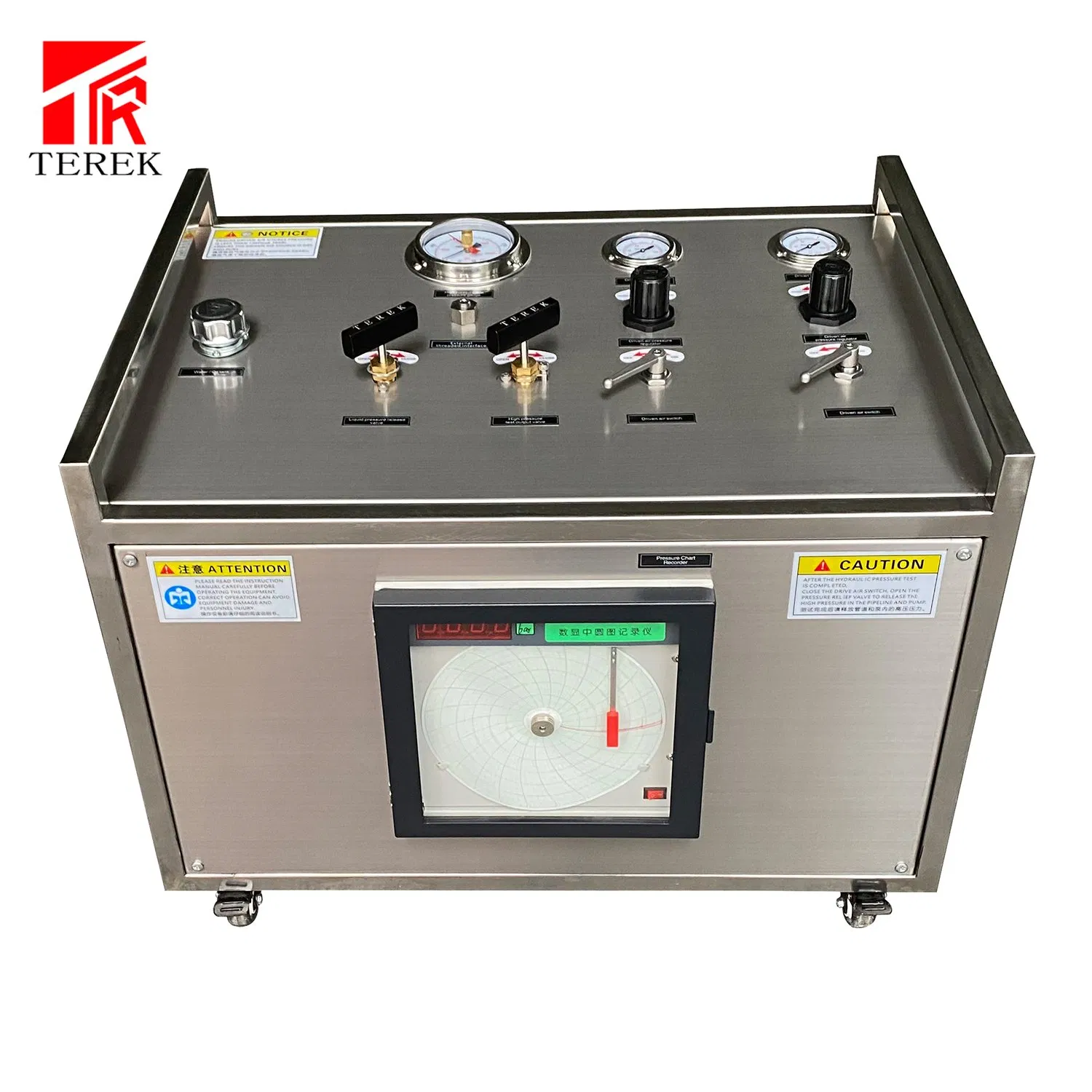

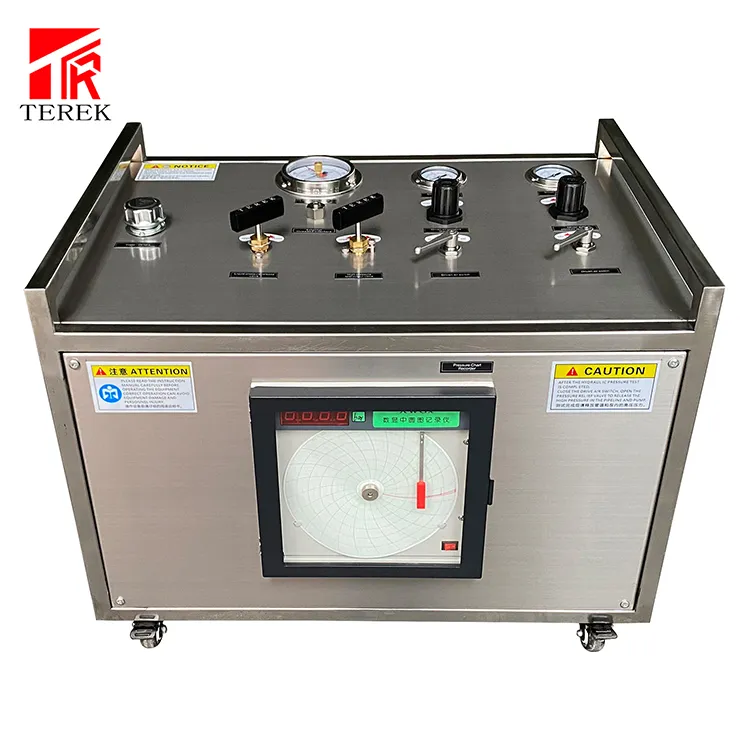

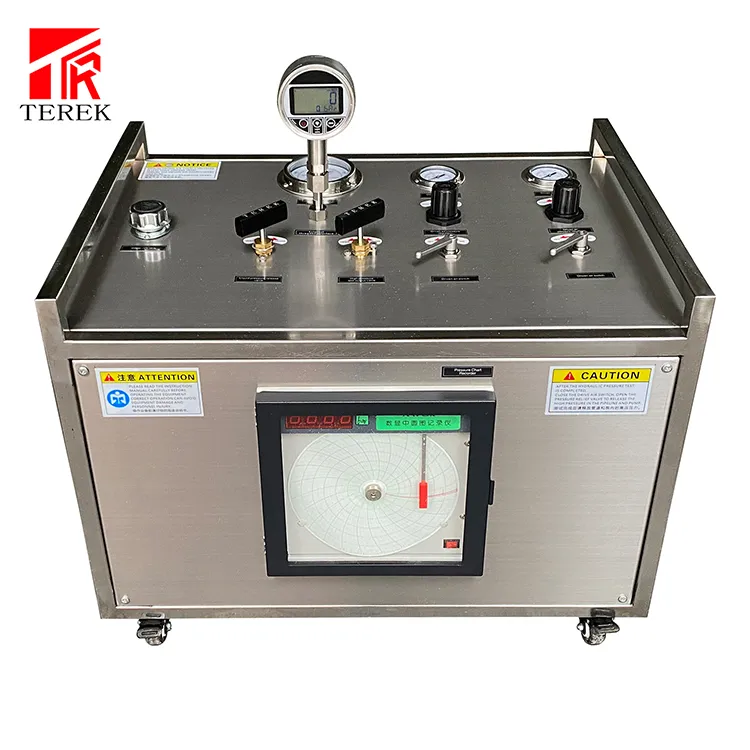

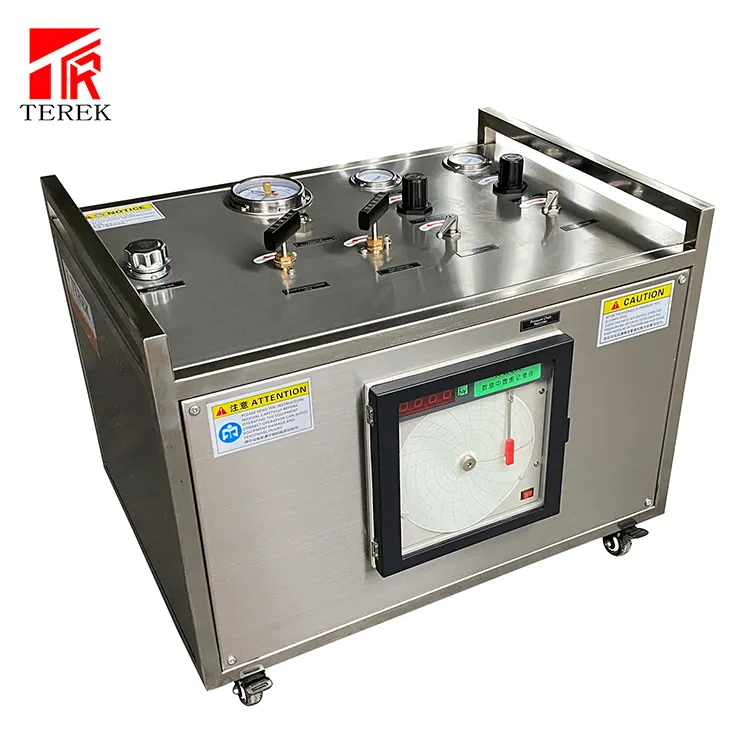

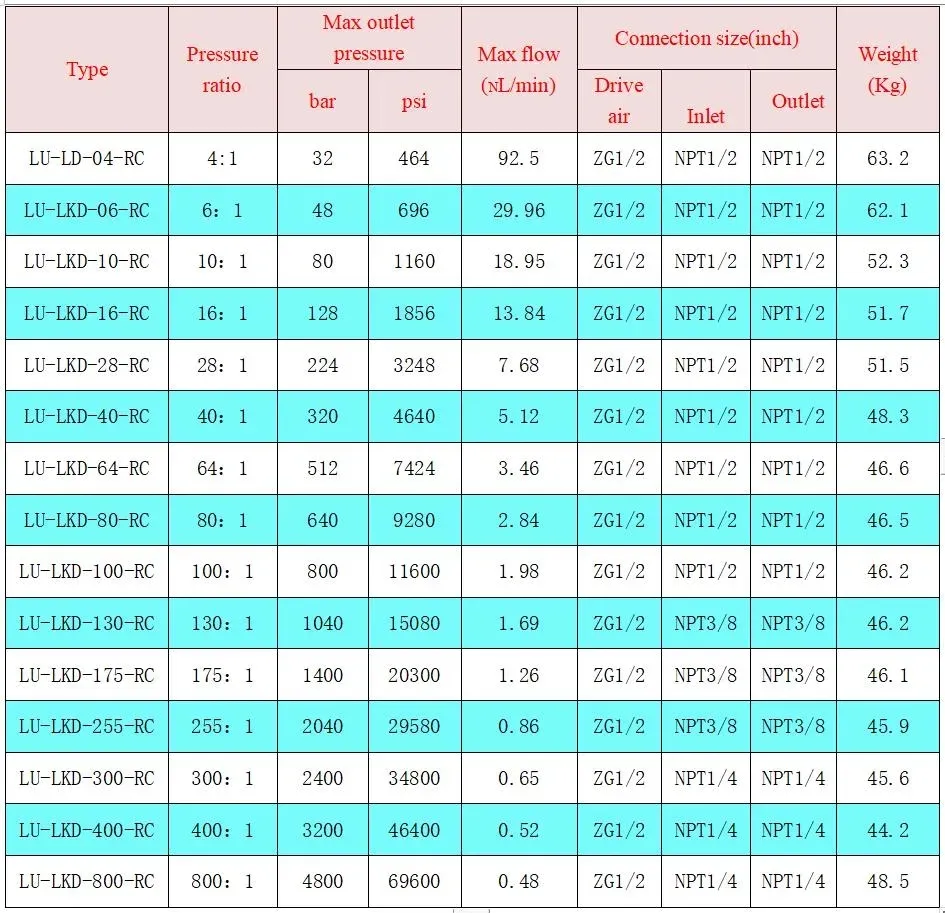

| Product Name | Pneumatic liquid booster pump hydrostatic test bench with chart recorder |
| Model | LU-LKD-100-RC |
| Pressure Ratio | 100:1 |
| Drive Air Pressure | 3-8 bar |
| Maximum Outlet Pressure | 800 bar |
| Pressure Control Accuracy | Less than 1%F.S |
| Equipment Dimension | 660*520*630 mm |
| Weight | 52 KG |
We provide professional technical advice regarding machinery, materials, and packing. Our team is capable of customizing machines to meet specific customer requirements. Every equipment unit includes a two-year warranty and essential wearing parts are included with the shipment. Permanent technical guidance is available for all operational inquiries.
