Basic Specifications
Product Name
Vehicle Wheelchair Lift
Max Platform Height
10000mm
Platform Size
1430*900 mm
Power Input
220V/50Hz (Customizable)
Production Capacity
20 sets/Month
Handicap Stair Lift for Wheelchair
This vertical elevating system is a durable and easy-to-use solution designed for indoor or outdoor applications, requiring vertical transportation up to 10 meters. It ensures safe and convenient access for those using wheelchairs or mobility scooters.
✔
No Pit Required: Can be directly installed onto the ground without architectural supporting pits.
✔
Smooth Operation: Advanced hydraulic system offers passengers a comfortable and stable transportation experience.
✔
Safety First: Equipped with multiple safety devices and an Emergency Descending function for power malfunctions.
✔
Weather Resistant: Designed to withstand harsh weather conditions, making it ideal for outdoor porches and entrances.
Technical Data
| Model | VWL |
| Load Capacity | 300kg |
| Table Size | 1430*900mm (Customizable) |
| Lifting Height | Up to 10m (Customizable) |
| Motor Power | 1.5KW - 2.2KW |
| Power Input | 220V/50HZ or local standard |
| Lifting Speed | 100mm/s |
| Self Weight | Approx. 1050kg |

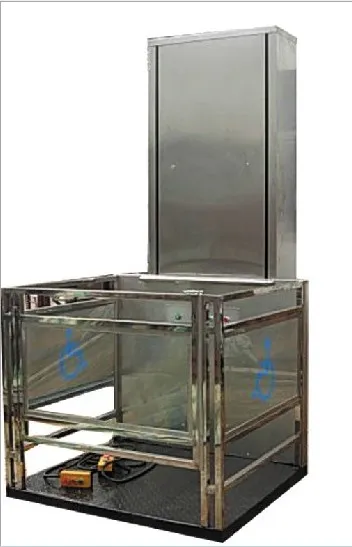

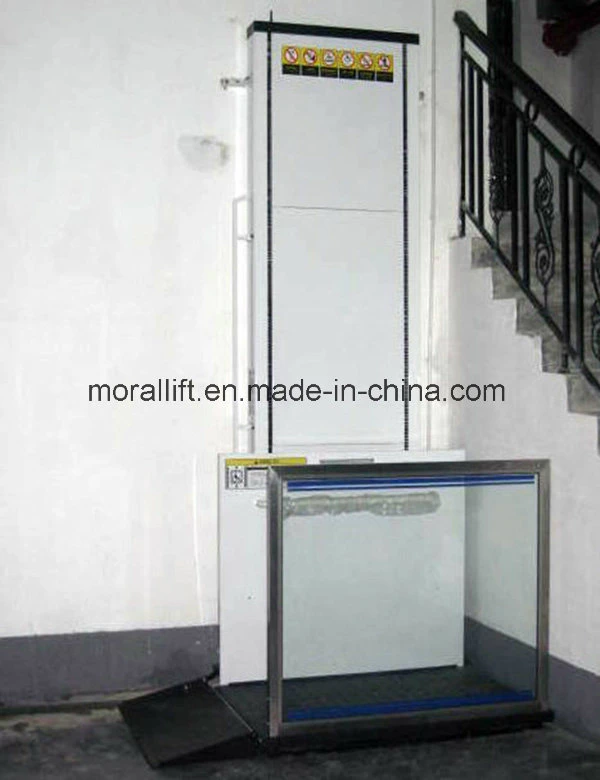

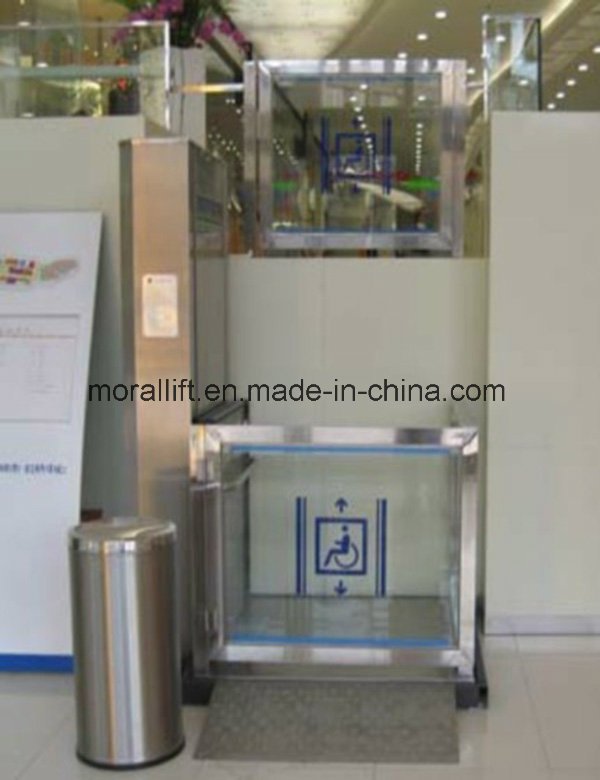

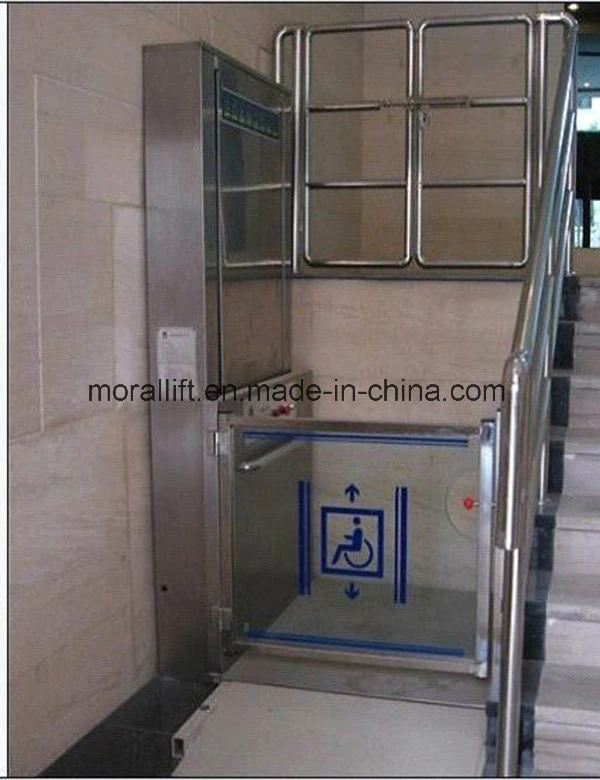

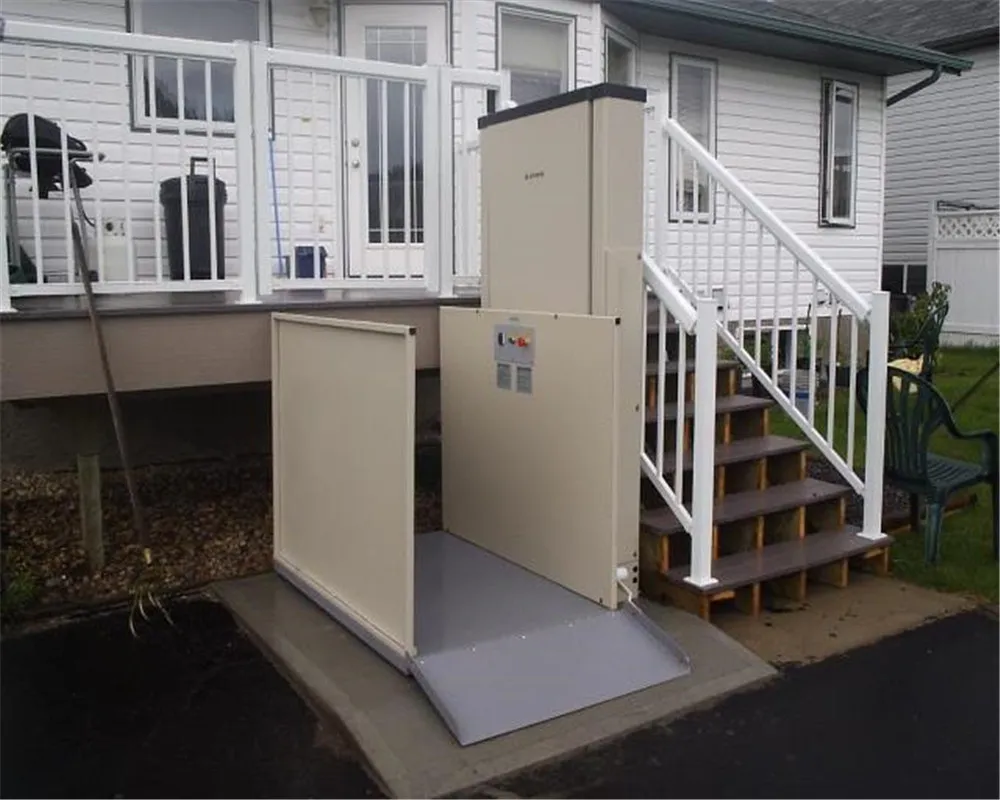

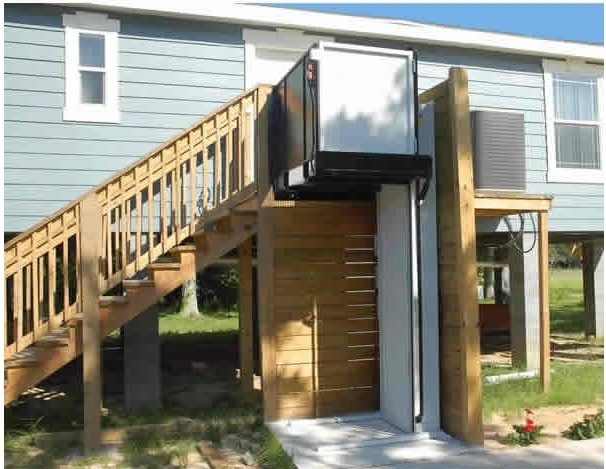

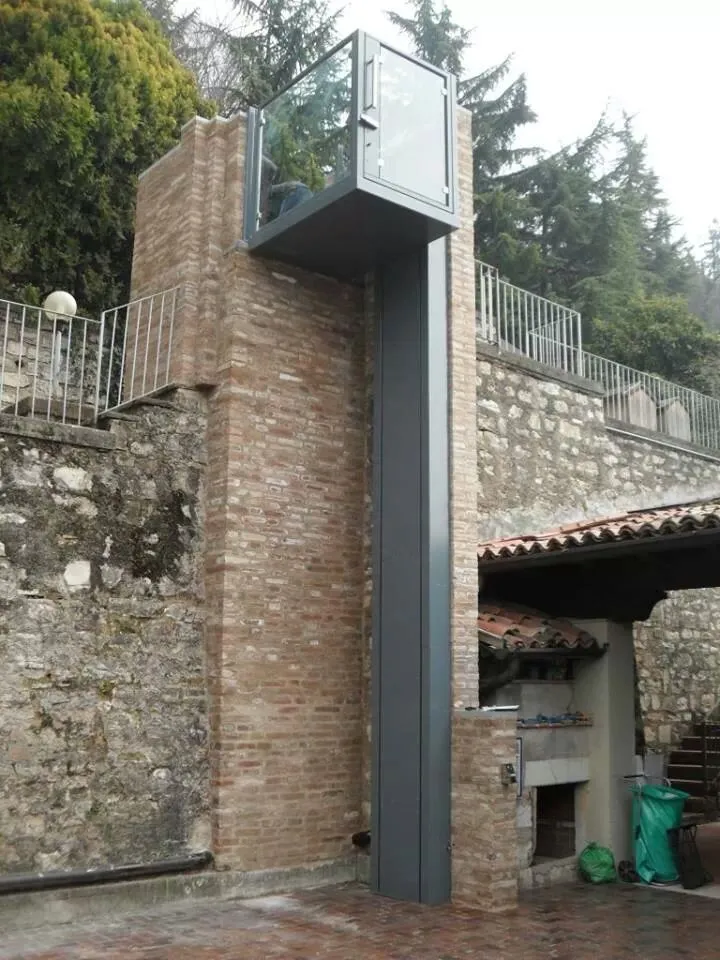

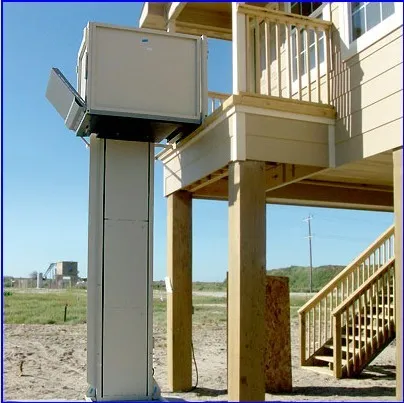

Detailed Images
Frequently Asked Questions
Q1: What is the maximum lifting height available for this wheelchair lift?
The standard maximum lifting height is 10,000mm (10 meters), but it can be customized according to your specific site requirements.
Q2: Does the lift require a professional pit for installation?
No, this vertical lift is designed for ease of installation and can be mounted directly on a flat floor without the need for an architectural pit.
Q3: How does the emergency descending system work during power failure?
The lift features a manual emergency valve. In case of power loss or malfunction, you can manually operate the valve to descend the platform safely to the ground.
Q4: Can the platform size and power supply be customized?
Yes, we provide customization for platform sizes and can adjust the power input (e.g., 110V, 220V, 380V) to match your local power standards.
Q5: Is the lift suitable for outdoor installation in cold or rainy climates?
Absolutely. Our wheelchair lifts are built with weather-resistant materials and waterproof components, making them suitable for both indoor and harsh outdoor environments.
Q6: What safety certifications does the product carry?
Our wheelchair lifts are CE certified, ensuring they meet international safety and quality standards for vertical transportation equipment.
