Product Description

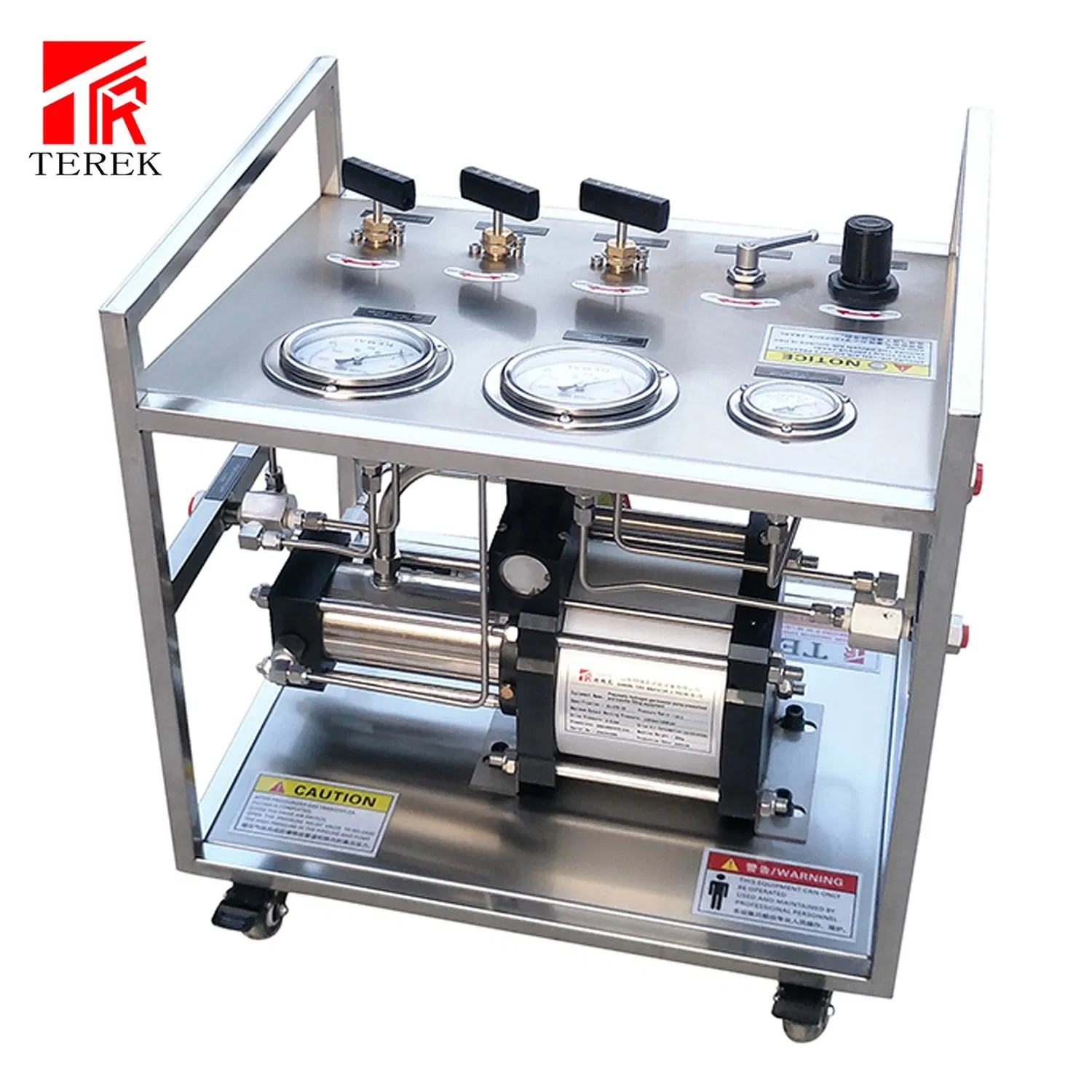

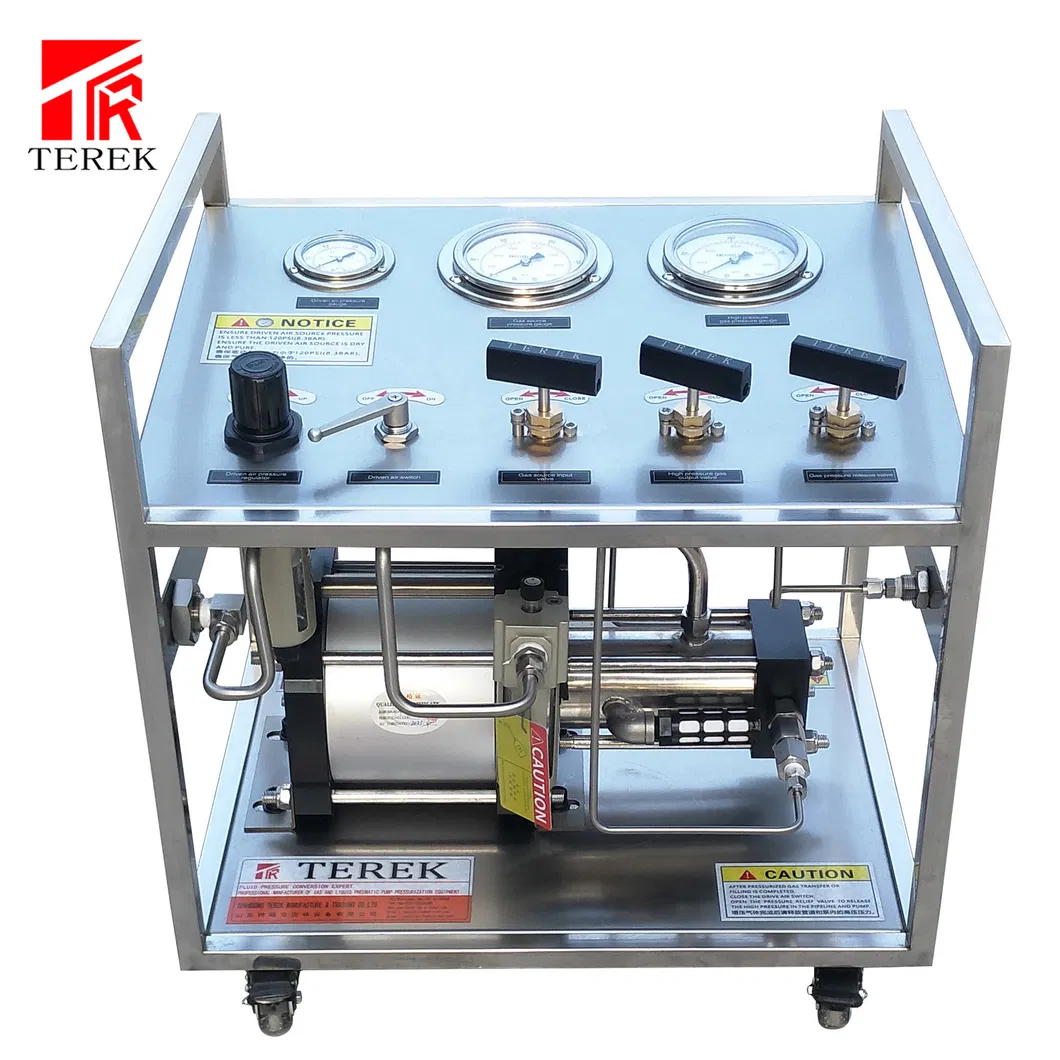

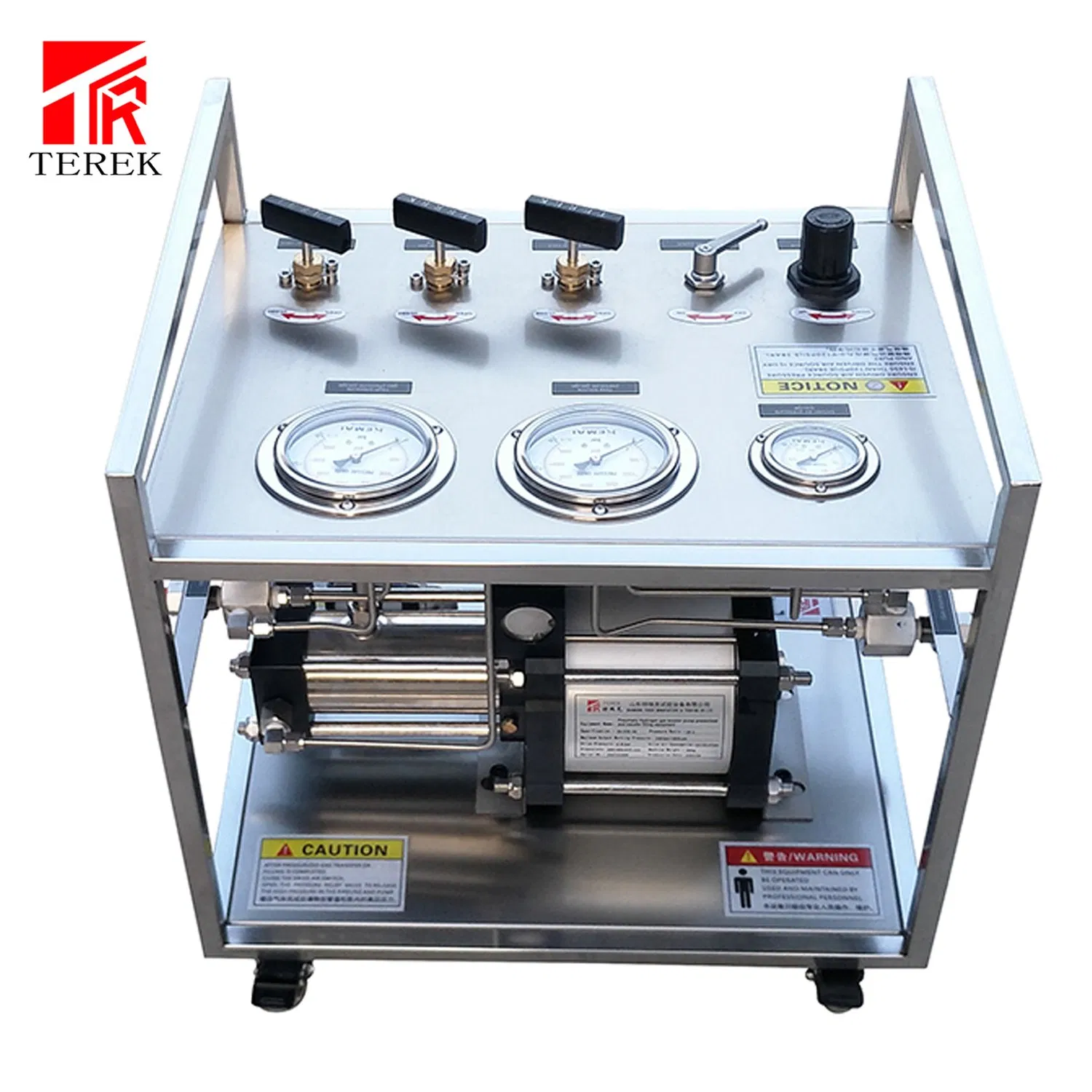

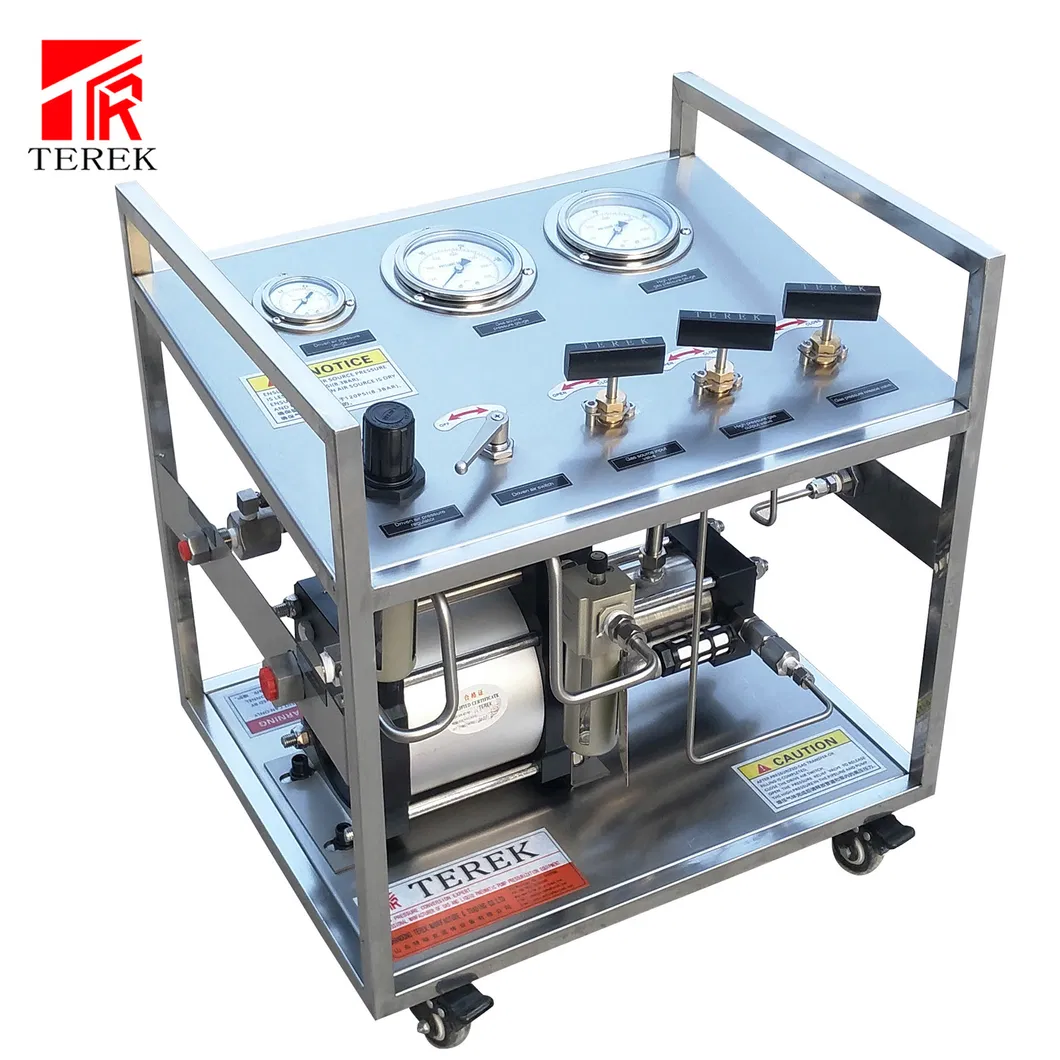

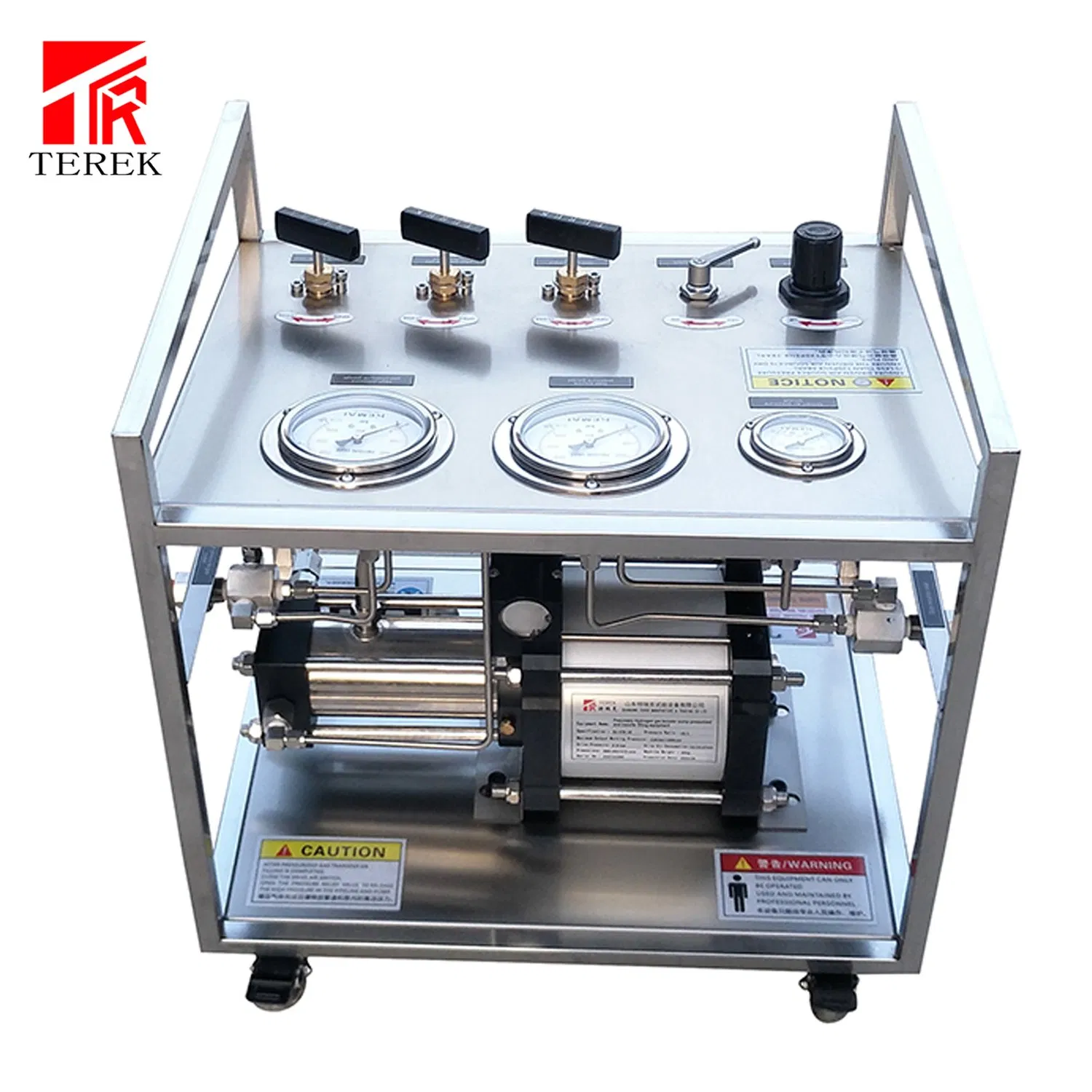

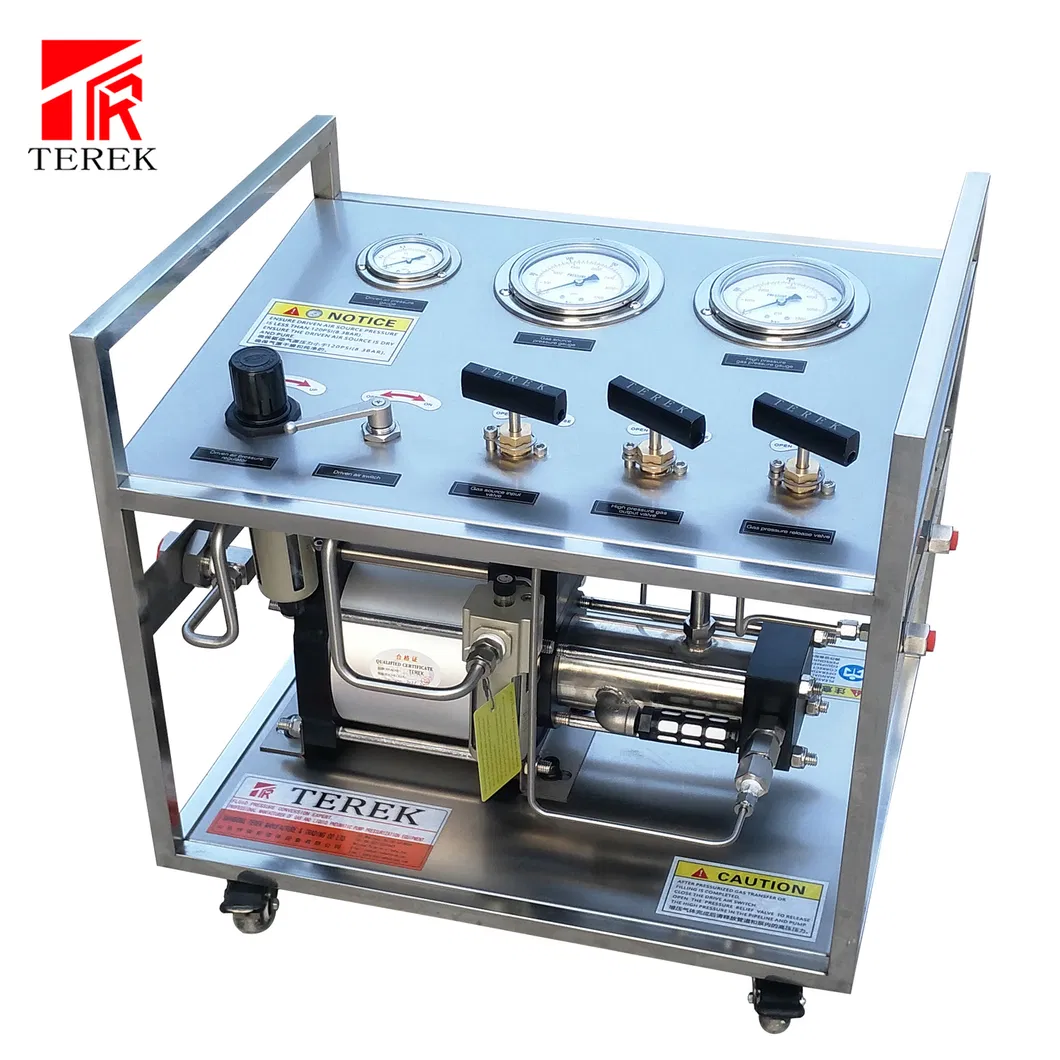

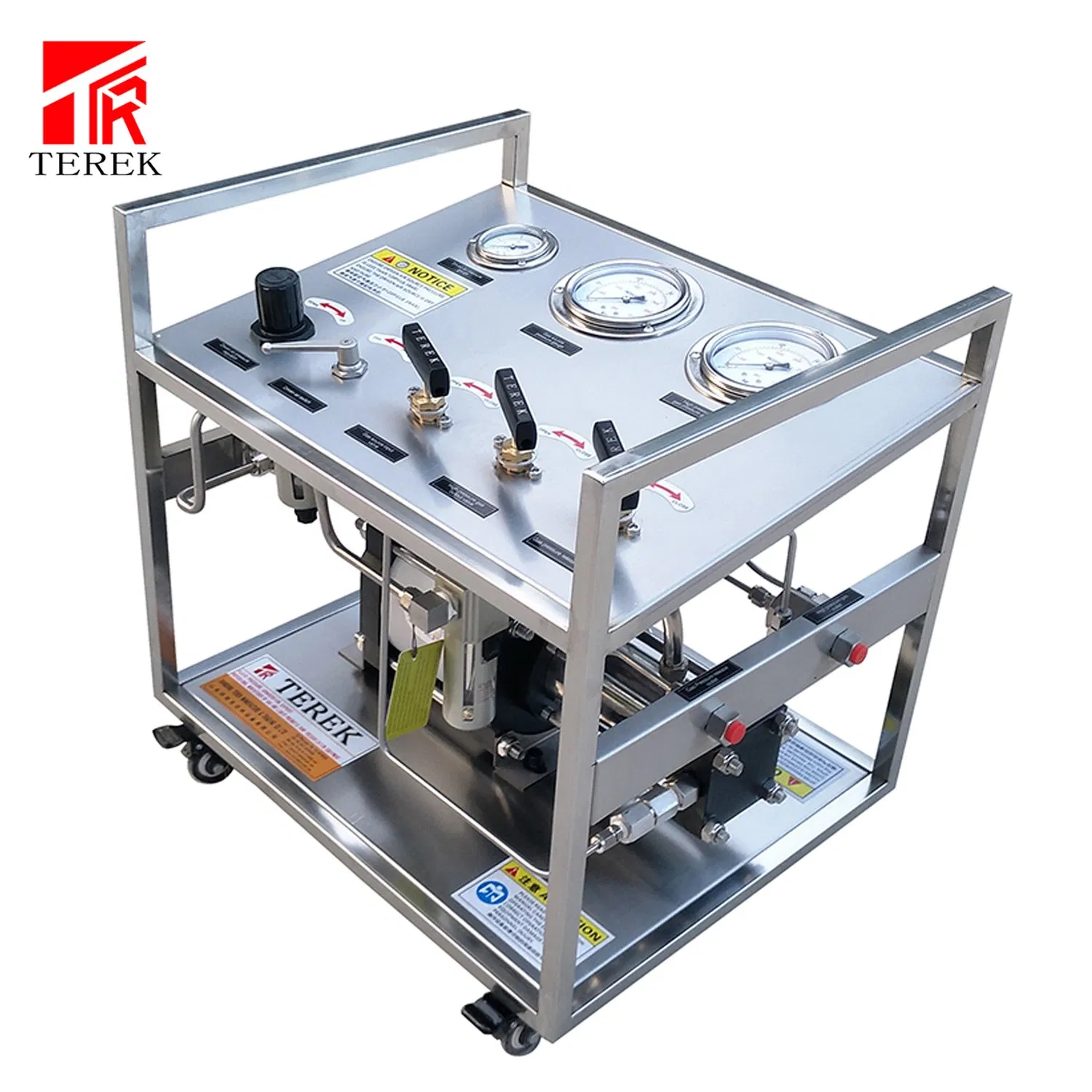

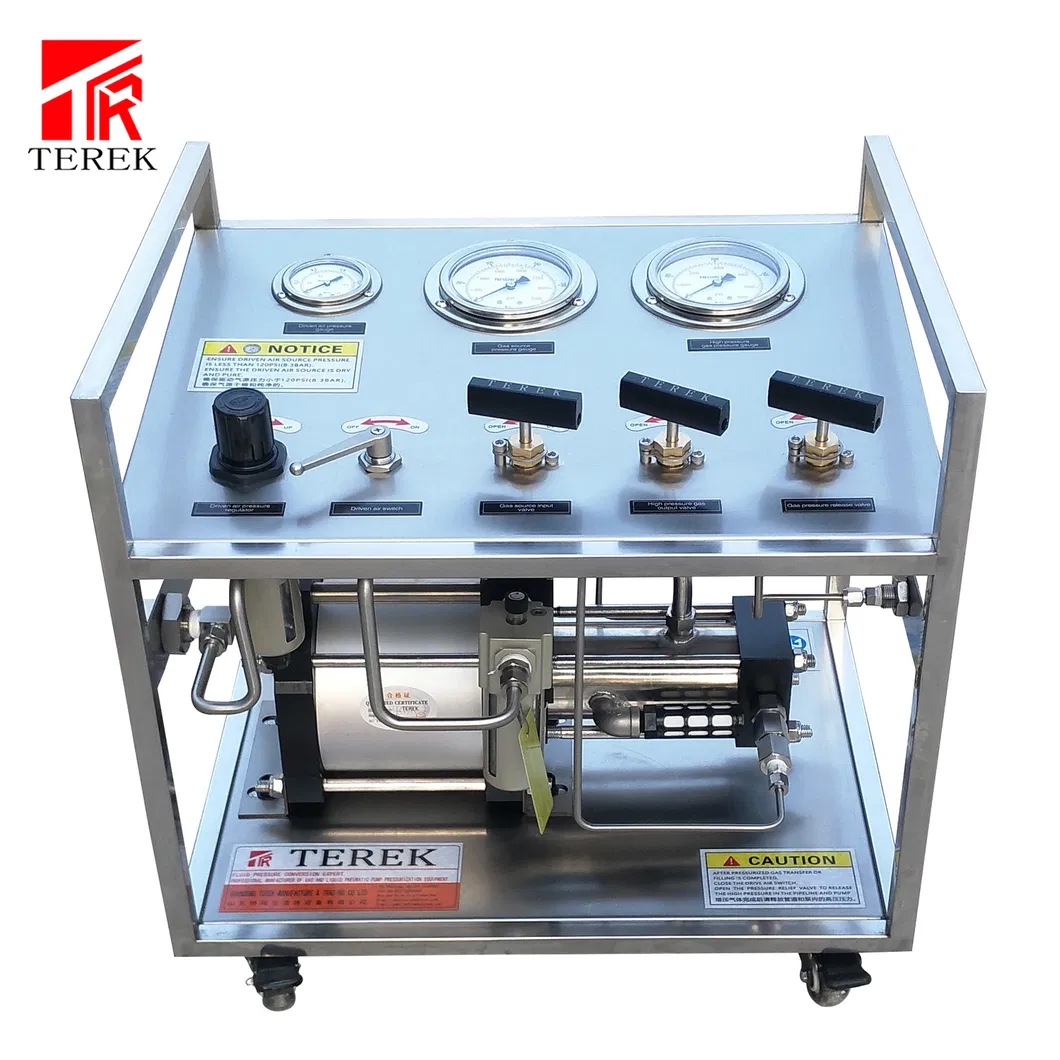

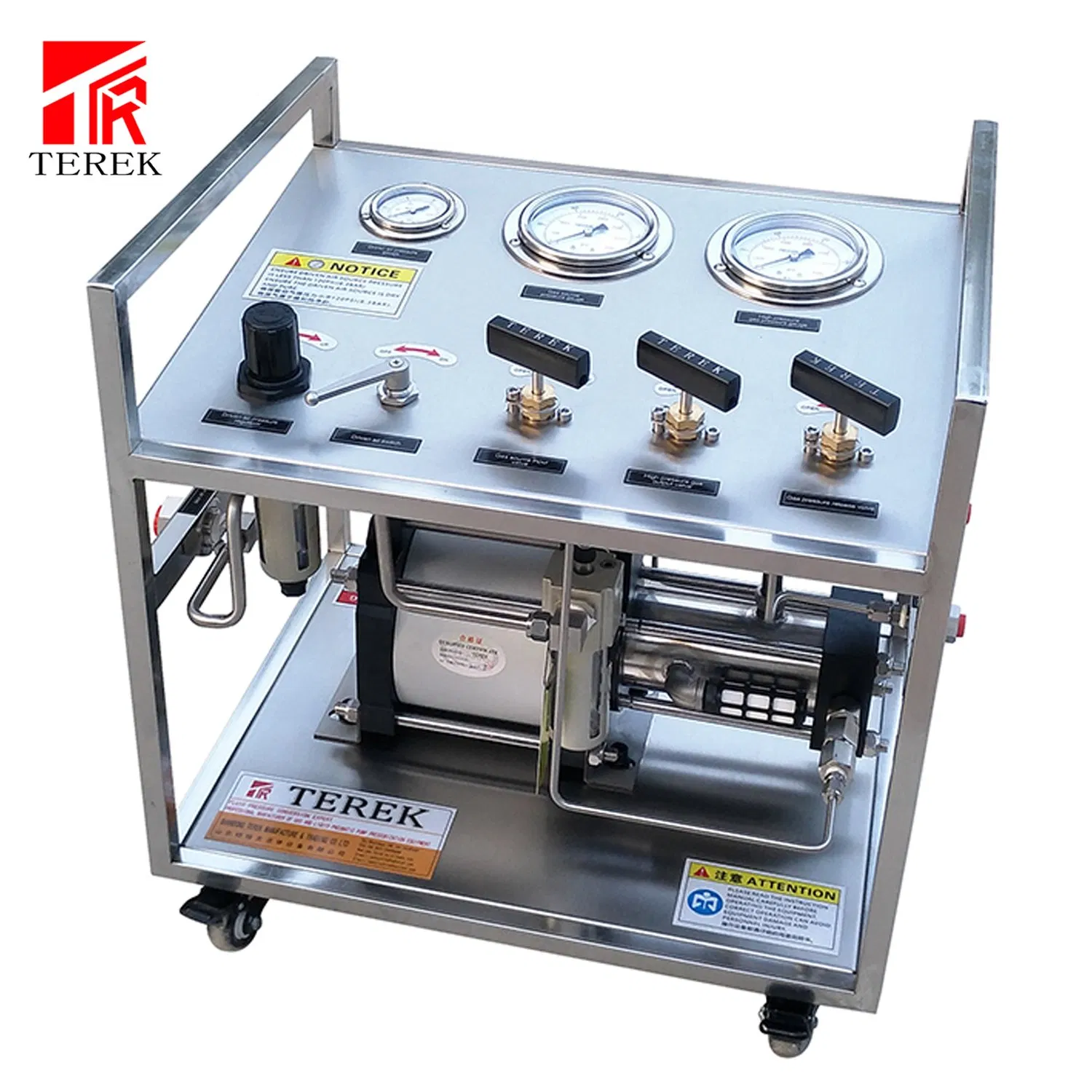

The gas booster equipment uses pure compressed air as the driving power source, and uses a gas booster pump as the pressure source. It is designed for various gases including Hydrogen, Nitrogen, Oxygen, Helium, N2O, Argon, and CO2. The output pressure is strictly proportional to the driving gas pressure.
By adjusting the pressure of the driving gas source, the corresponding pressure of the pressurized gas can be precisely obtained. When the drive gas pressure balances with the pressurized gas, the pneumatic booster pump automatically stops, stabilizing the output at the preset level. This provides explosion-proof performance, energy savings, and reliable operation for high-pressure environments.
💎
Key Advantages

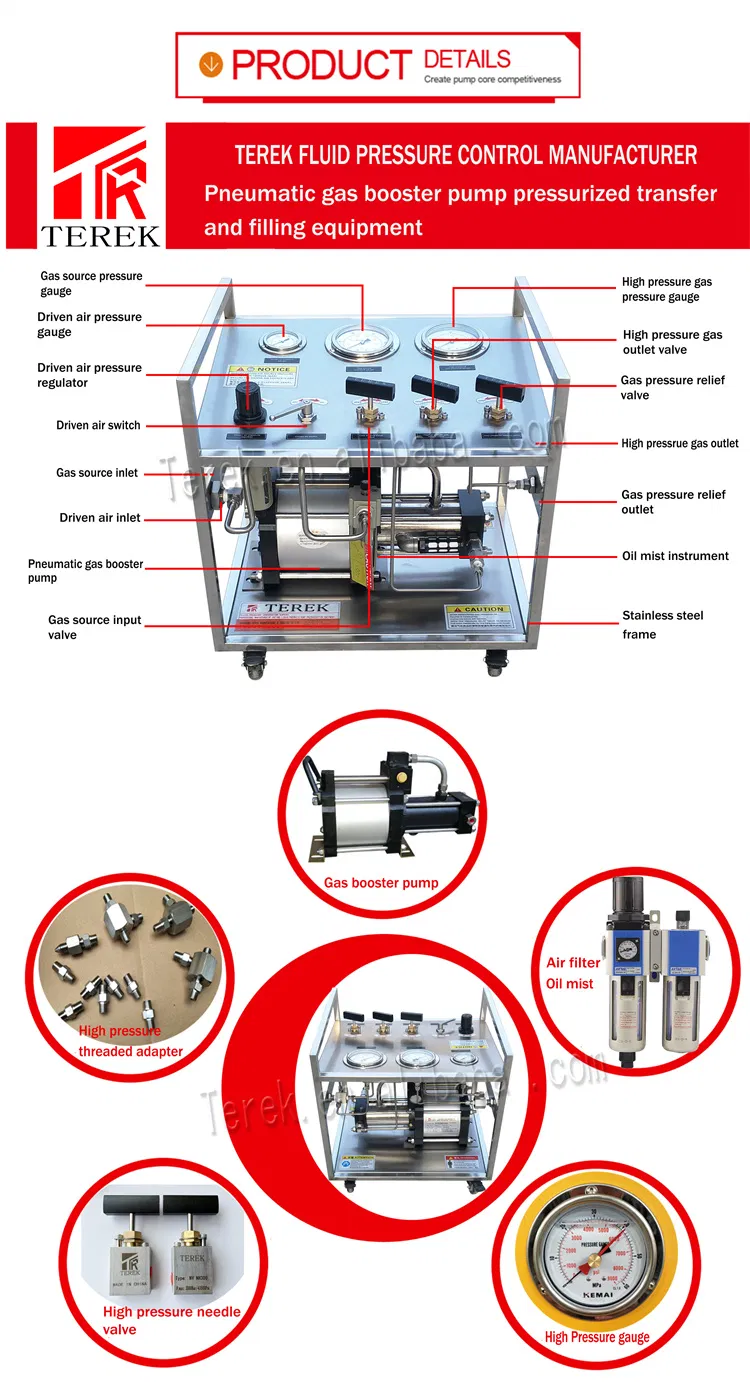

✔ All pipes and fittings made of stainless steel for long life.
✔ Automatic stop functionality when preset pressure is reached.
✔ No energy expenditure during long pressure-holding phases.
✔ Explosion-proof design; no risk of sparks or heat generation.
✔ Automatic restart if outlet pressure drops slightly.
✔ Easy to install, move, and maintain.
🚀
Application Fields
🔹 High-pressure gas leak testing.
🔹 Gas transfer and cylinder filling (O2, N2, Argon, etc.).
🔹 Charging of gas accumulators with nitrogen.
🔹 Hydrostatic testing for valves, tanks, and pressure vessels.
🔹 High-pressure gas injection for industrial systems.
🔹 Breathing air bottle charging and oxygen transfer.
❓
Frequently Asked Questions
1. What is the power source for this gas booster system?
The system is powered entirely by compressed air (3-8 bar), requiring no electricity. This makes it suitable for hazardous or dangerous locations.
2. Which types of gases can be pressurized?
It can handle a wide variety of gases including Nitrogen, Oxygen, Hydrogen, Argon, Helium, CO2, N2O, and CH4 without contamination.
3. Does the pump stop automatically at a specific pressure?
Yes, the pump automatically stops when the output pressure balances with the driving air pressure at the preset value. It also restarts automatically if the outlet pressure drops.
4. Is the equipment explosion-proof?
Yes, since it is air-driven and generates no sparks or heat during operation, it is intrinsically safe for oil and gas fields or other dangerous environments.
5. What materials are used in the construction?
All high-pressure pipes, fittings, and the booster pump components are made of high-quality stainless steel to ensure durability and long service life.
6. What is the typical lead time and warranty?
The production time is generally 10-15 working days. The equipment comes with a two-year warranty covering the pump and main components.
