Fujivista LED-Integrated Domestic Stair Small Home Passenger Lift Elevator with Etched Details

Customization: Available
Driving Type: AC Elevator
Capacity: 500-1000kg

Product Description

Basic Information
Model NO.
JH-R17
Persons
6 - 10
Speed
1.00 - 2.00m/s
Control Mode
Collective Selective Control
Computer Room
Up
Elevator Door
Center Opening Door
Application
Hotel, Apartment, Office Building
Traction Machine
Gearless Traction Machine
Control System
Monarch Vvvf Controller
Buffer
Hydraulic Buffer
Product Description
Passenger Elevators: Designed for high-rise buildings, offering smooth, quiet rides, exceptional energy efficiency, and fully customizable cabins.

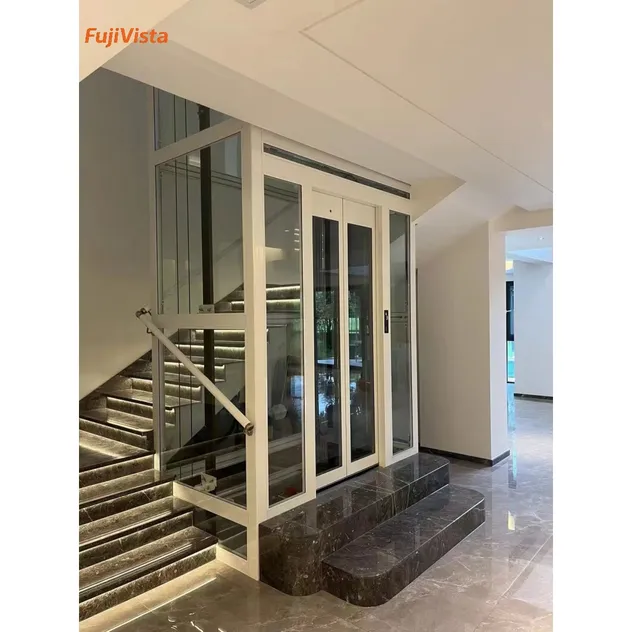

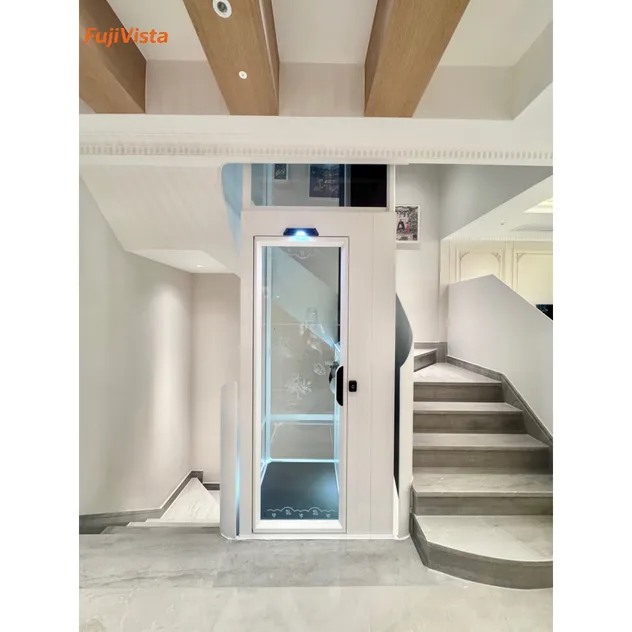

Observation Home Elevator
Observation home elevator - View 1

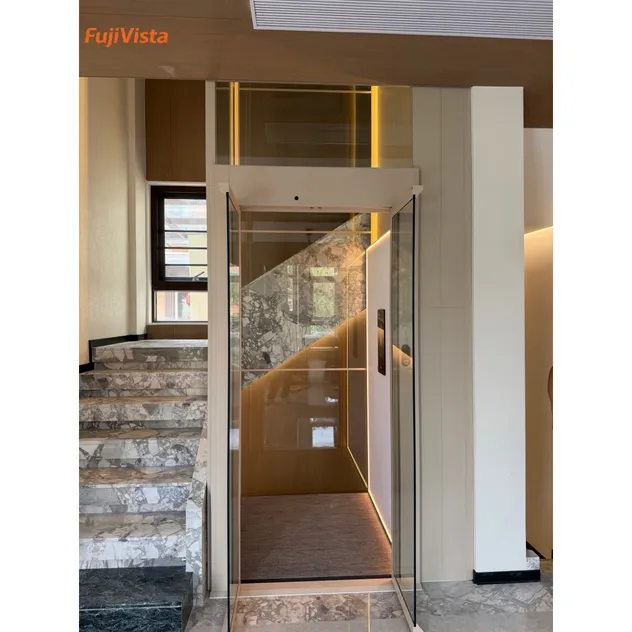

Observation Home Elevator
Observation home elevator - View 2

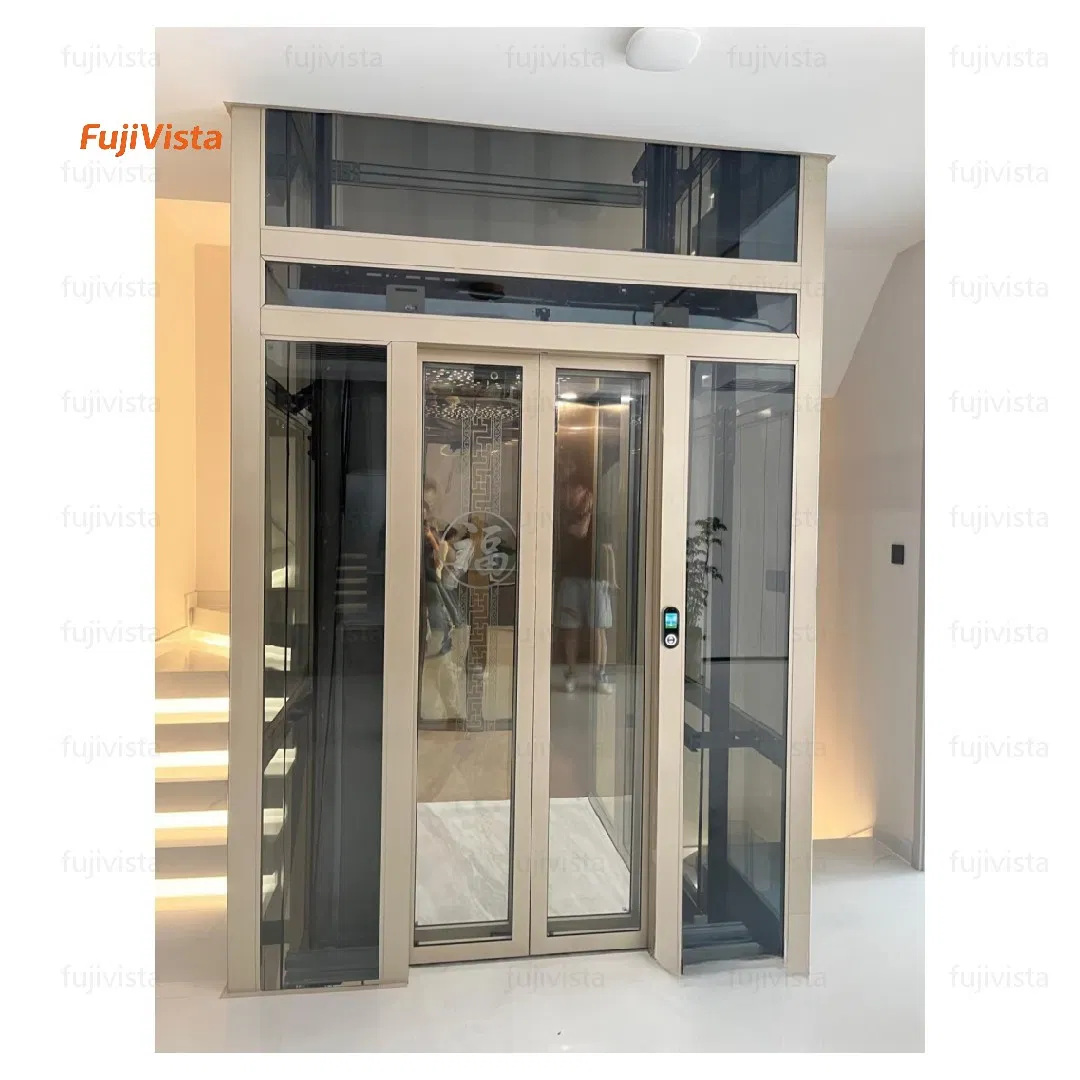

Observation Home Elevator
Observation home elevator - View 3

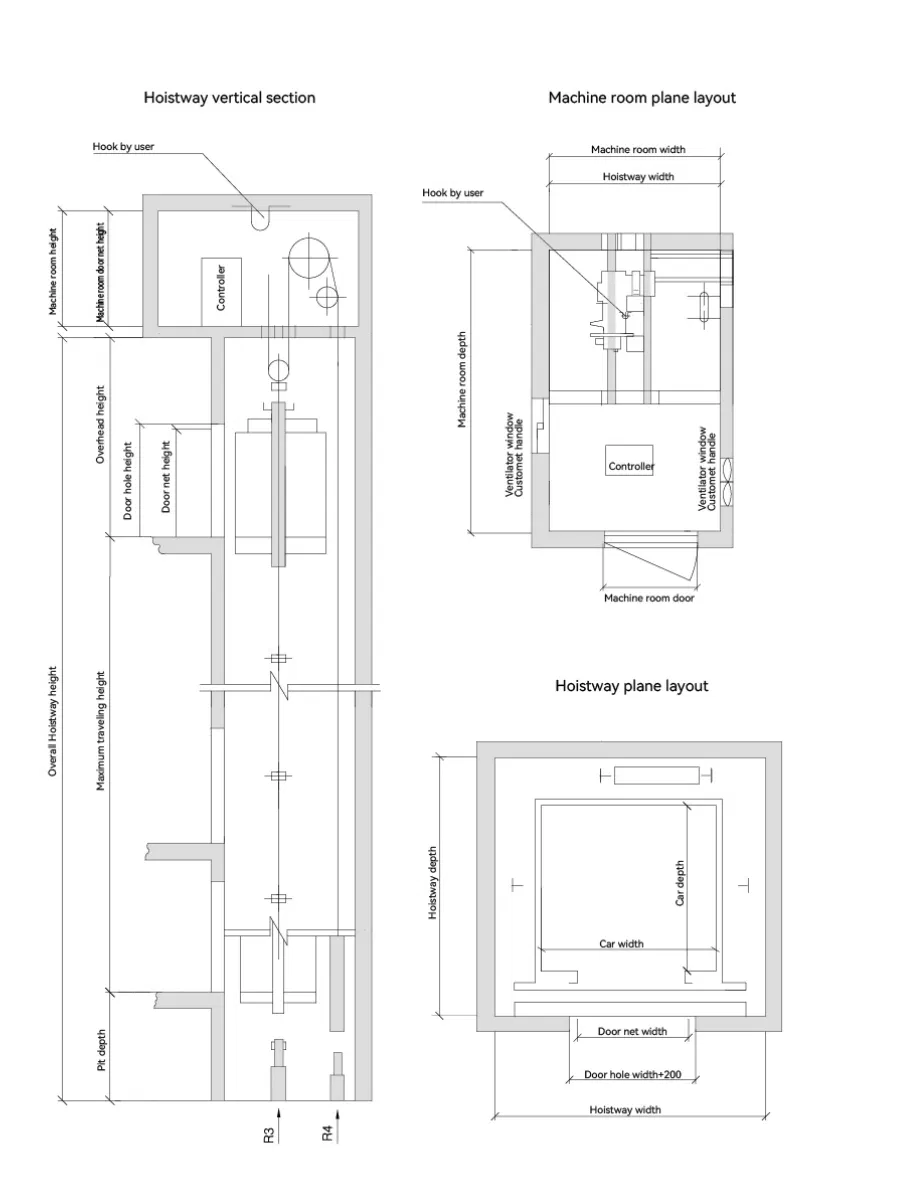

Small machine room passenger elevator sketch highlights:

  • 🔹 1. Approved drawings guide installation, meeting elevator standards.
  • 🔹 2. Ensure >50mm step and proper width for machine room to well holes.
  • 🔹 3. Step between decor and door sill to prevent water entry.
  • 🔹 4. Create buffer base under professional installer guidance.
Installation Sketch
Load (kg) Speed (m/s) Hoistway Size (XxY mm) Machine Room Size (WxD mm) Car Dimension (Inner A×B) Door Opening Size (mm) Overhead Height (OH) Pit Depth (PP)
630 1.0 2000×1800 2000x3500 1400×1100 800 4500 1500
1.5 4600 1600
1.75 4700 1700
2.0 4900 2000

Note: Only for reference, final manufacture please follow contract.

After Sales Service
Standard Warranty 12 months post-assembly (excludes transportation fees).
Global Support 24/7 technical assistance and guaranteed spare parts availability.
Training On-site or remote operation and maintenance training for your team.
Company Profile

Leading Chinese elevator manufacturer, ISO 9001 and CE certified. Exporting to over 10 countries with advanced R&D and quality-backed product lines.

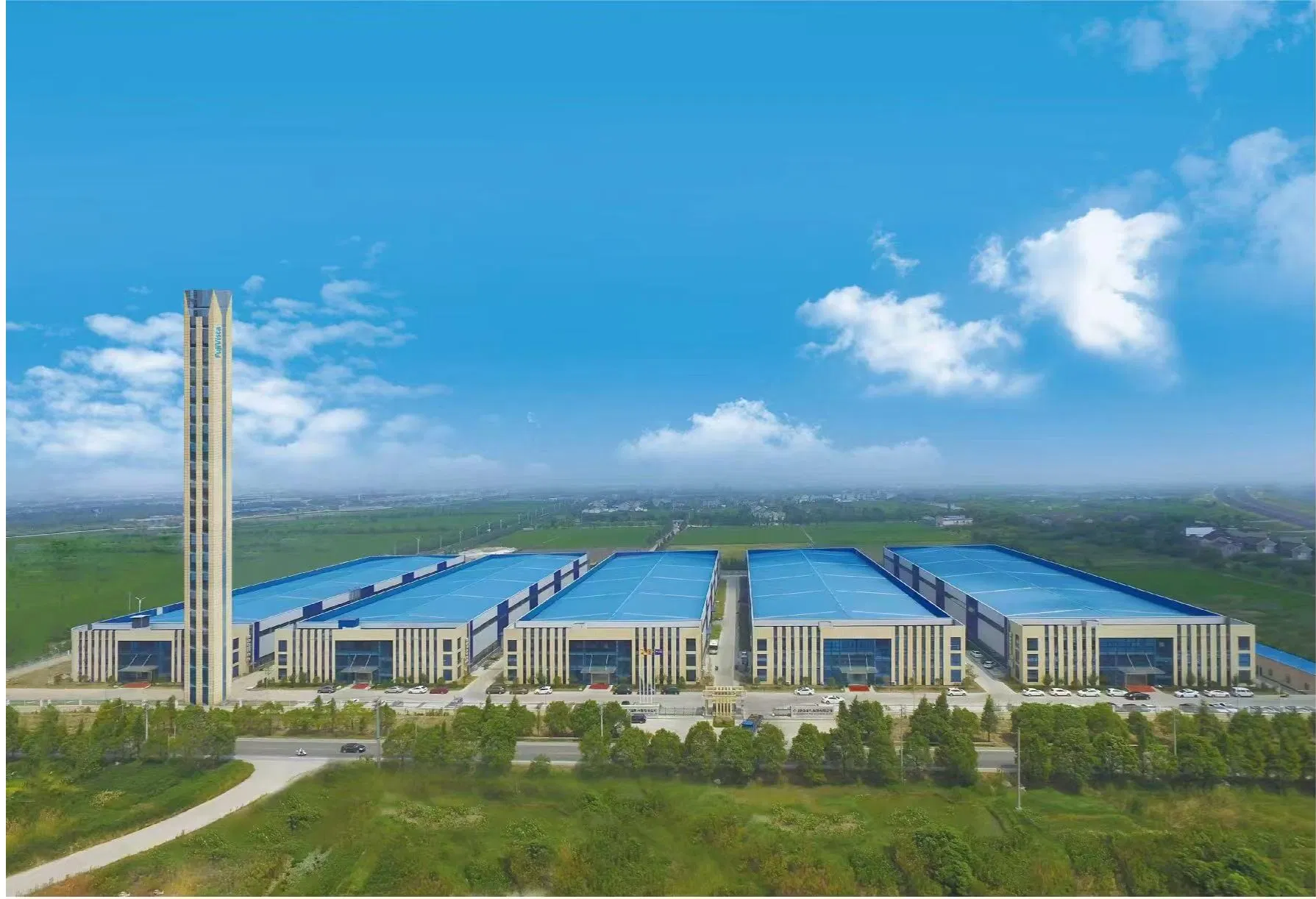

Factory Overview
Why Choose Us? • OEM/ODM capabilities
• Competitive pricing & bulk discounts
• Fast shipping & customs clearance
• Turnkey project solutions
Other Products • Home elevator
• Freight elevator
• Sightseeing elevator
• Custom lift solutions

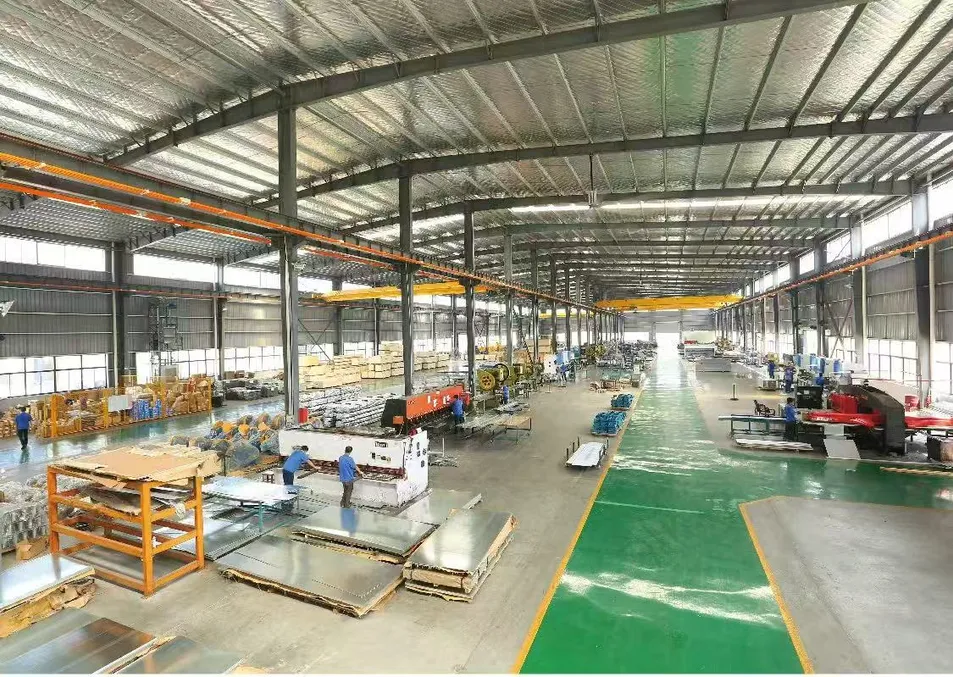

Project 1

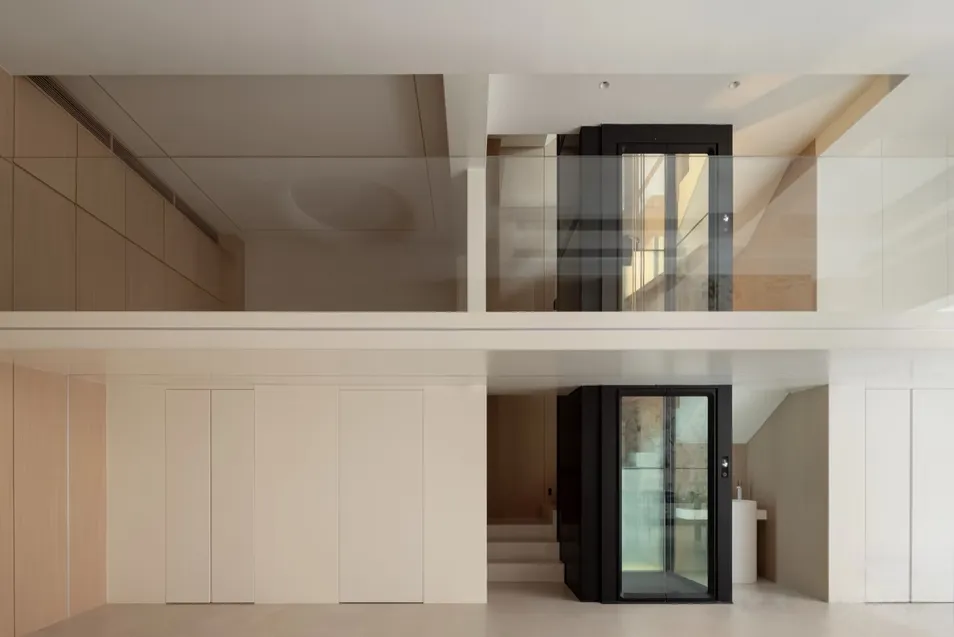

Project 2
Frequently Asked Questions
Q: How to handle installation post-purchase?
A: Detailed manuals and technical drawings are provided. You can hire local teams; our engineers also offer remote guidance to ensure a successful setup.
Q: How is damage risk during sea freight managed?
A: We use reinforced wooden crates and anti-rust packaging. Additionally, full insurance is provided under CIF terms to protect your investment.
Q: What is the timeline for a customized elevator?
A: Typically, the process involves 3 days for design proposal after hoist-way details are submitted, followed by production, and shipping approximately 15 days after the balance payment.
Q: What are the payment terms?
A: Standard terms are a 30% deposit to initiate production and a 70% balance due post-production but before shipment via T/T or other international methods.
Q: What additional costs should be considered besides the elevator quote?
A: Our CIF quotes include the product, export packaging, freight, and insurance. Customers should consider local import duties, customs fees, and local installation labor.
Q: Are the cabins customizable?
A: Yes, we offer various materials such as mirror etching panels and various lighting options to match your building's interior design.
