Electric Patient Transfer Lift with Belt From Bed to Chair
Electric Patient Transfer Lift with Belt From Bed to Chair
Electric Patient Transfer Lift with Belt From Bed to Chair
Electric Patient Transfer Lift with Belt From Bed to Chair
Electric Patient Transfer Lift with Belt From Bed to Chair
1 / 5
Electric Patient Transfer Lift with Belt From Bed to Chair
Electric Patient Transfer Lift with Belt From Bed to Chair
Electric Patient Transfer Lift with Belt From Bed to Chair
Electric Patient Transfer Lift with Belt From Bed to Chair
Electric Patient Transfer Lift with Belt From Bed to Chair

Electric Patient Transfer Lift with Belt From Bed to Chair

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO.
MY-S086A-B
Certification
CE, FDA, ISO13485
Group
Adult
Length
1070mm
Width
630mm
Height
110mm
Elevation Height
1750mm
Package
Wood
Specification
49KG
⚙️

Product Description

Base length: 1070mm

Base width: 630mm

Base height: 110mm

Leg span width: 920mm

Elevation height: 1750mm

Lifting range: 750 - 1750mm

Spreader ground clearance: 0 - 850mm

Lifting speed: 3 - 9mm/s

Load capacity Weight: 180kg

Gross Weight: ≈50kg

Net Weight: ≈45kg

Noise Level: <65db (a)

Input power: AC220V / 50HZ

Motor: 24V / 8000N

Frame material: Carbon steel

Battery type: Lead-acid

Package size: 1170x670x340mm

📸

Detailed Photos

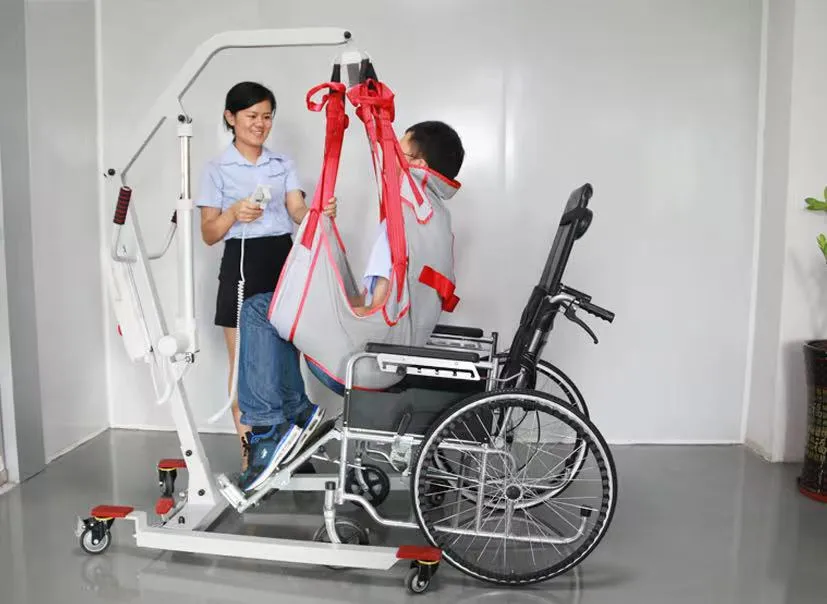

Electric Patient Transfer Lift Detail 1

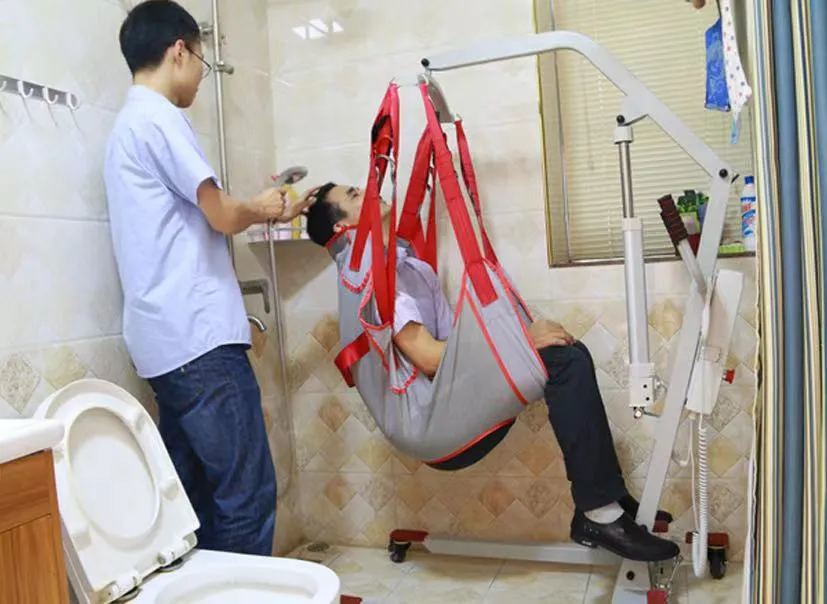

Electric Patient Transfer Lift Detail 2

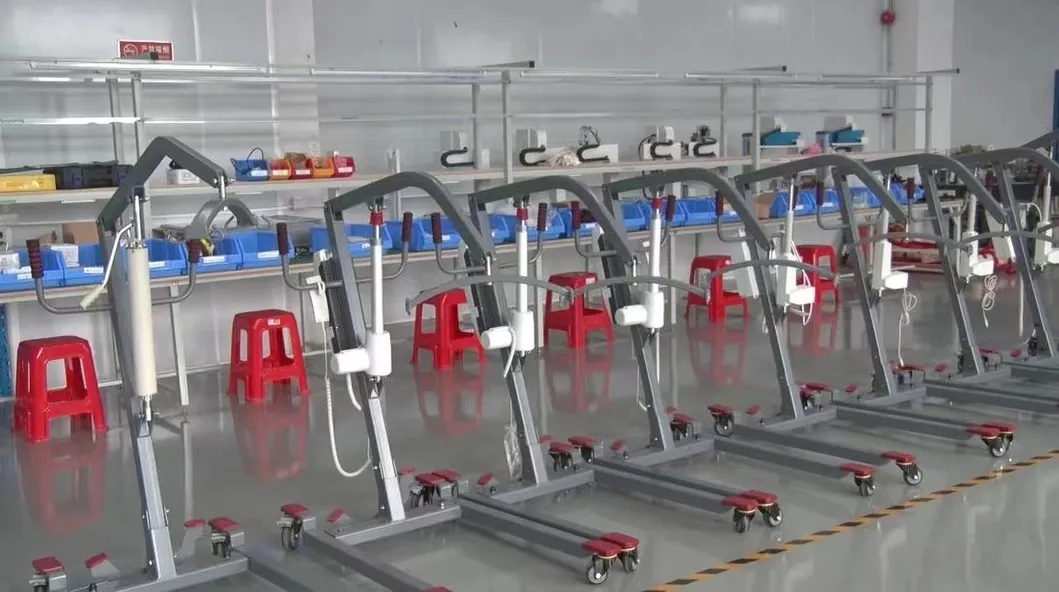

Electric Patient Transfer Lift Detail 3
Electric Patient Transfer Lift Detail 4
Full View Lift
Base View Lift
Operating View Lift
Component Detail
Safety Features
Storage Detail
Dimensions Guide
❓

Frequently Asked Questions

What is the maximum weight capacity of this patient lift?
The electric patient transfer lift has a safe load capacity of up to 180kg, making it suitable for a wide range of adult patients.
What materials are used in the construction of the frame?
The frame is constructed from high-quality carbon steel, providing excellent durability and stability during patient transfer.
Does this lift carry international certifications?
Yes, this model is fully certified with CE, FDA, and ISO13485 standards, ensuring it meets strict medical and safety requirements.
What is the elevation range of the spreader bar?
The lifting range is between 750mm and 1750mm, with a ground clearance for the spreader bar starting from 0mm up to 850mm.
Is the lift noisy during operation?
No, the lift operates quietly with a noise level of less than 65db (a), providing a comfortable environment for both patients and caregivers.
How is the device powered?
The unit is powered by a 24V motor and utilizes a lead-acid battery system, compatible with standard AC220V/50HZ input for charging.
