OEM and ODM Service Available

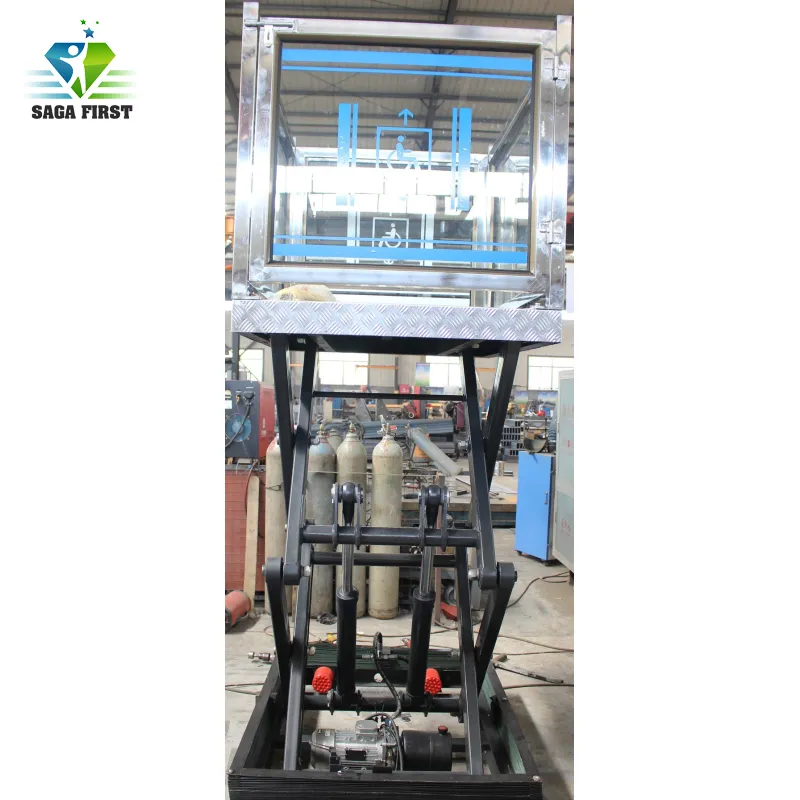

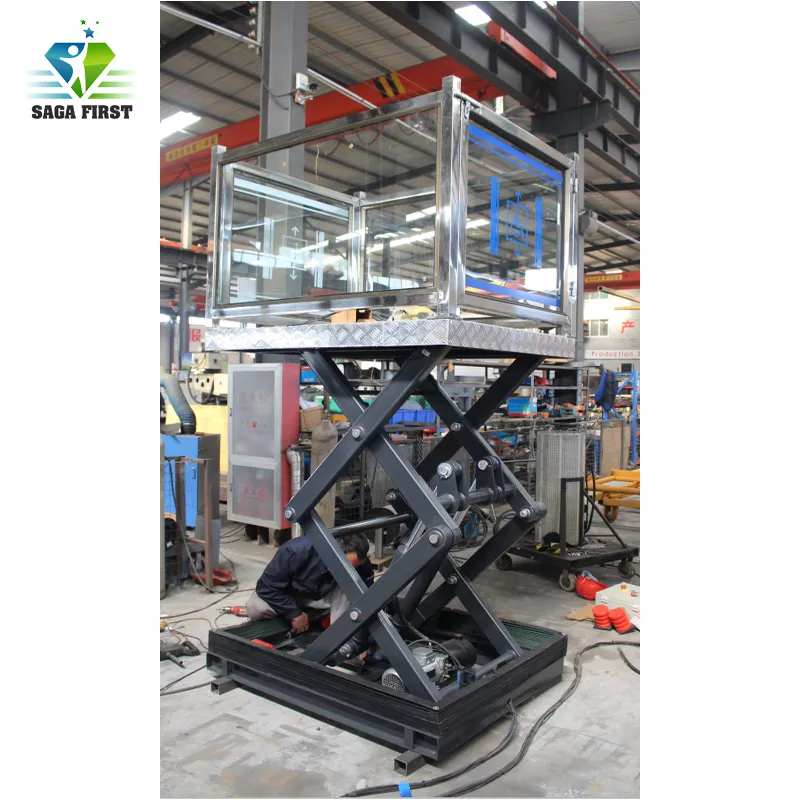

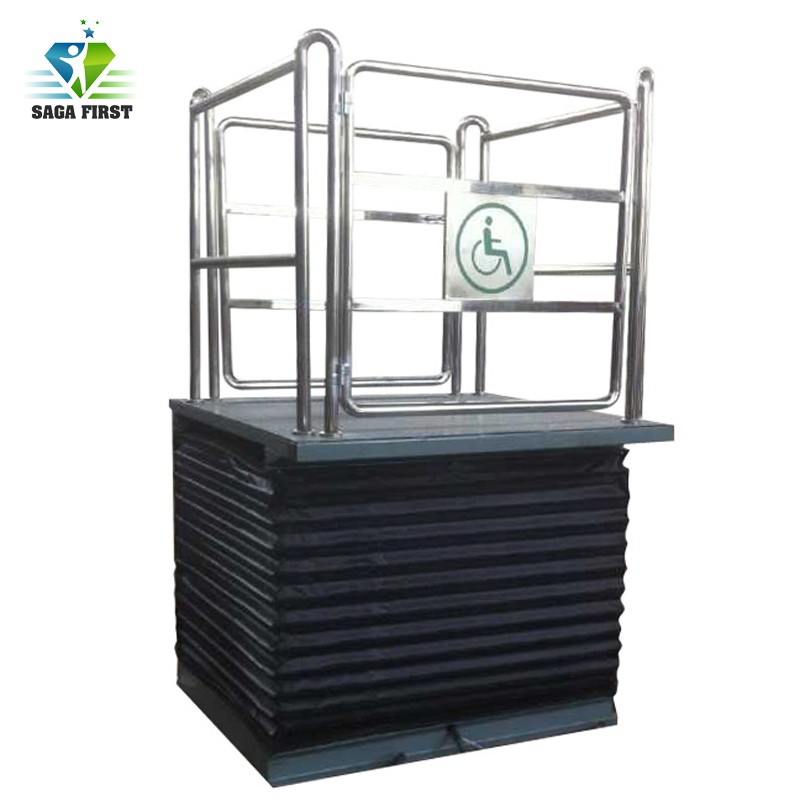

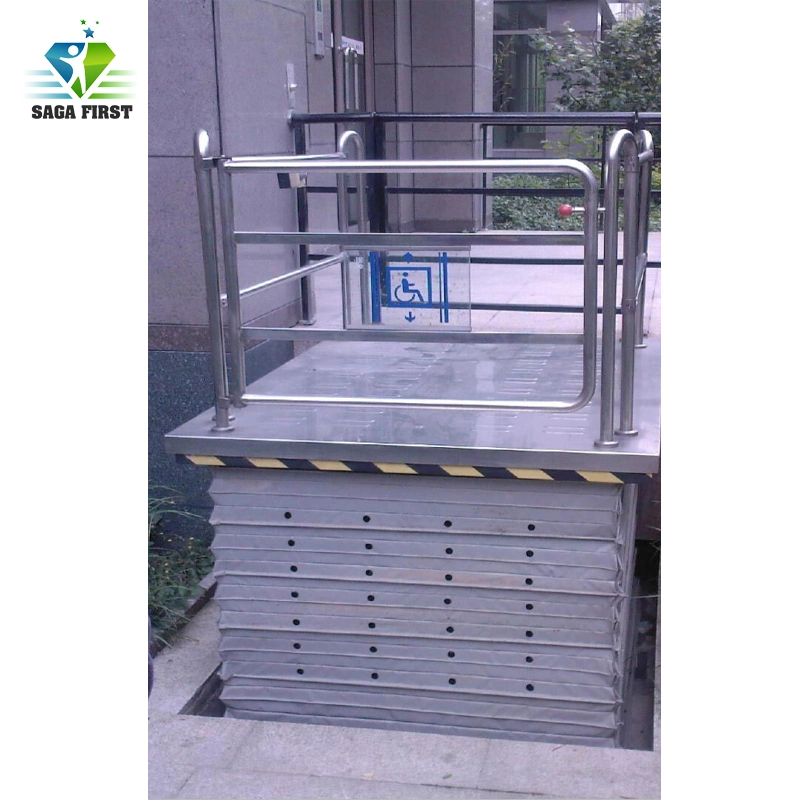

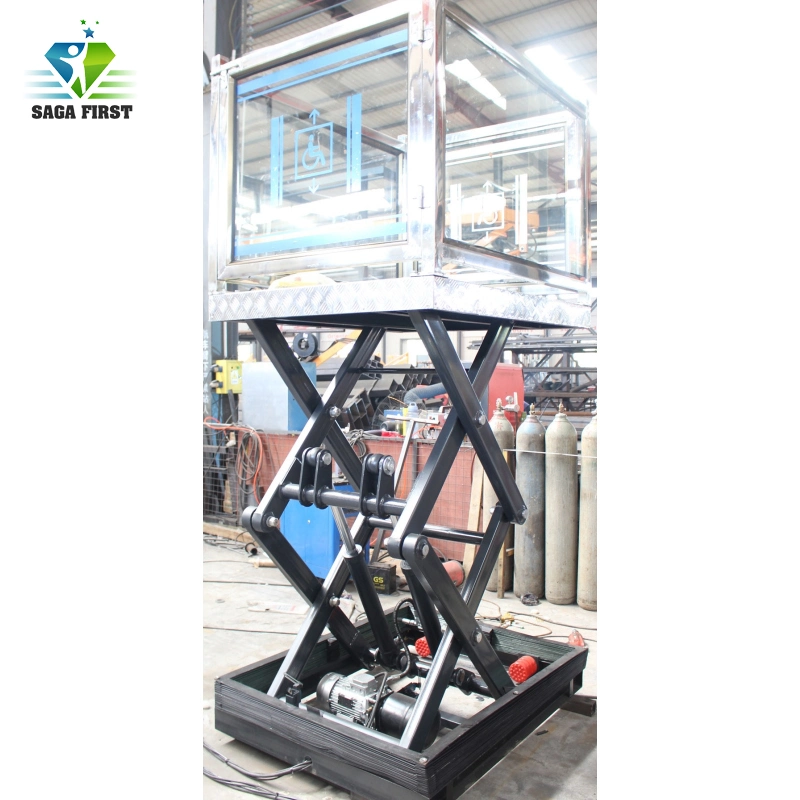

Scissor Lift Platform Wheelchair Lifts are high quality electronic hydraulic scissor lift tables equipped with spray paint or stainless steel guardrails. We produce it with high configurations, like bumper, electromagnetic lock etc. Compared with vertical aluminum wheelchair lift, it's more compact. It's called barrier free wheelchair lift. They are widely used at home and other public places for babies, elderly people and disabled people.
Compact structure can be modularized into a small space; With a new electric propulsion system.
All small home lifts meet American standard ANSI/ASME and Europe standard EN1570. Standard model types are listed below; customization for platform size, load capacity, and lifting height is available.
| Model | SL2510 | SL2515 | SL2520 | SL2525 | SL2530 | SL2535 | SL2540 | SL2550 | SL2560 |
|---|---|---|---|---|---|---|---|---|---|
| Platform Size(mm) | 1430*1000 | 1430*1000 | 1430*1000 | 1430*1000 | 1430*1000 | 1430*1000 | 1430*1000 | 1430*1000 | 1430*1000 |
| Lift Capacity(KG) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Lifting Height(mm) | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 | 6000 |
| Lifting Speed | 4~6M per minute | ||||||||
| Motor Power | 2.2KW | ||||||||
Options include tempered glass doors, stainless steel material, and steel plate with plastic spraying to fulfill various aesthetic and functional needs.
