Customization: Available
Customized: Customized
Certification: CE, ISO13485
Send Inquiry

Product Description

Basic Specifications

Model NO.
DG201N
Scale
Medium
Type
Electric Patient Transfer Lift
OEM&ODM
Available
Mobile Type
Yes
Lithium Cell
Optional
Voltage
220V, 50Hz
Motor
24V
Base Open Width
1070mm
HS Code
8428909090

Product Overview

DG201N Medical Equipment Mobile Electric Transfer Hoist Patient Care Body Lift for Disabled DG201N Medical Electric Transfer Hoist
Key Features:
  • Aluminium frame with coated surface for durability and lightweight handling.
  • Equipped with front 3″ wheels and rear 3″ wheels with integrated brakes.
  • Smart electric remote control with intuitive one-button lift commands.
  • Adjustable base width via pedals to accommodate various furniture sizes.
  • Battery-operated lift capable of raising patients from floors, beds, or sitting surfaces.
  • Extra wide 360-degree swivel bar with a six-point hook for enhanced comfort.
  • Large ergonomic handle design for superior operator control.
  • Safety emergency stop button and manual emergency lowering device included.
  • Low battery alarm system with easy plug-in recharging (no need to remove batteries).
  • Foldable design for efficient storage and convenient transportation.
  • Minimizes physical effort for paramedics and caregivers during patient transfers.

Technical Parameters

Main Parameter Specifications
Overall Length1180mm
Overall Width710mm
Foldable size (L*W*H)1310*710*335mm
Base Open Width1070mm
Boom Height0-1610mm
Base Clearance100mm
Base inner width600-960mm
Maximum Height1825mm
Weight Capacity150kg
Net Weight34kgs
Frame MaterialAluminum Frame
Motor System24V Power System

Detailed Display

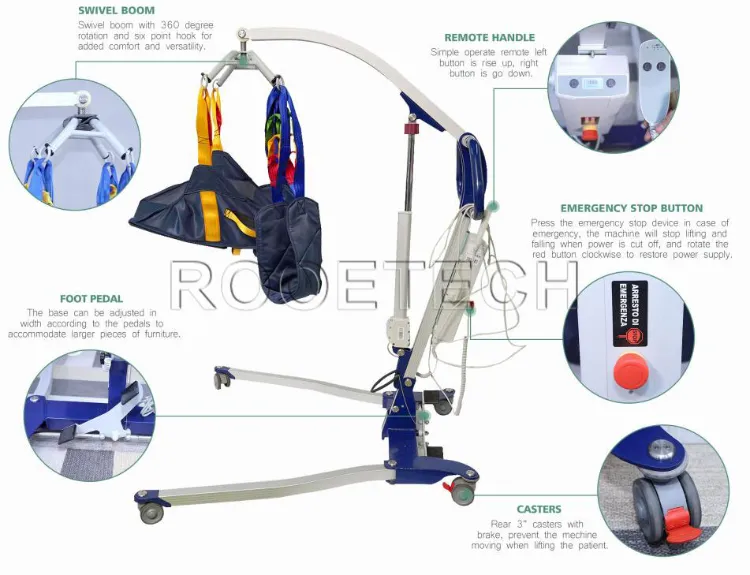

Lift Detail 1

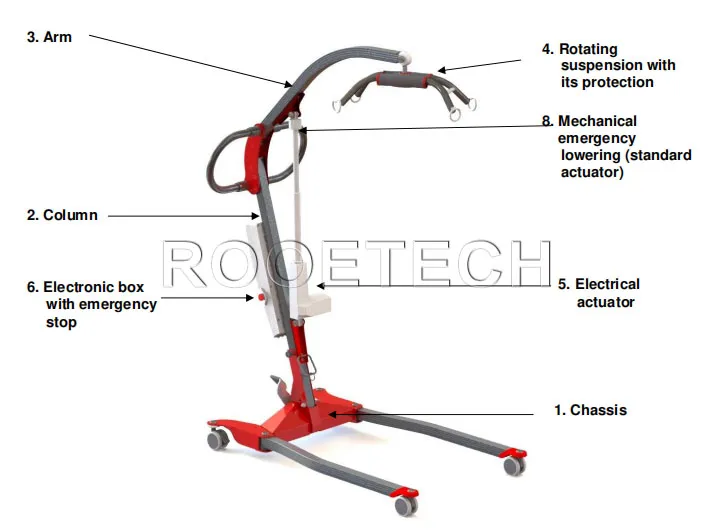

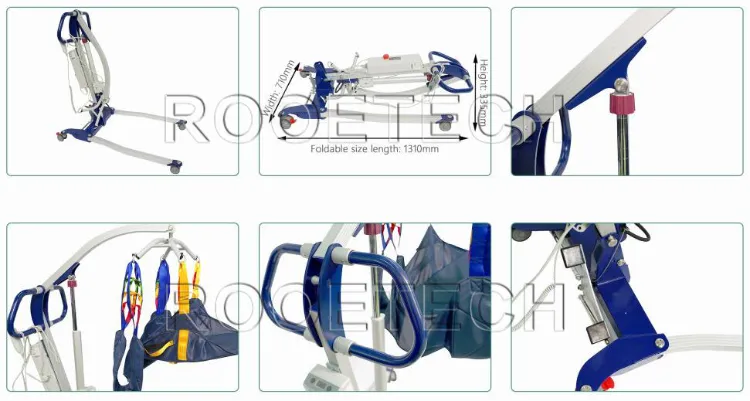

Lift Detail 2 Lift Detail 3

Frequently Asked Questions

What is the maximum weight capacity of the DG201N?
The DG201N hoist is designed to safely handle a weight capacity of up to 150kg (approx. 330 lbs).
Can this hoist be used for floor transfers?
Yes, the boom height ranges from 0 to 1610mm, allowing it to lift patients directly from the floor.
How do I recharge the battery?
There is no need to remove the batteries. Simply plug the unit into a standard 220V power outlet to recharge. An alarm will sound when the battery level is low.
What safety features are included for emergencies?
The device is equipped with an emergency stop button that cuts power immediately and a manual lowering device to safely lower the patient in case of power failure.
Is the lift easy to store when not in use?
Yes, the DG201N features a foldable design with dimensions of 1310*710*335mm when folded, making it easy to store or transport.
