New Design Curved Stair Lift Used for Disabled Person/Inclined Wheelchair Lift Seat Lift
New Design Curved Stair Lift Used for Disabled Person/Inclined Wheelchair Lift Seat Lift
New Design Curved Stair Lift Used for Disabled Person/Inclined Wheelchair Lift Seat Lift
New Design Curved Stair Lift Used for Disabled Person/Inclined Wheelchair Lift Seat Lift
New Design Curved Stair Lift Used for Disabled Person/Inclined Wheelchair Lift Seat Lift
1 / 5
New Design Curved Stair Lift Used for Disabled Person/Inclined Wheelchair Lift Seat Lift
New Design Curved Stair Lift Used for Disabled Person/Inclined Wheelchair Lift Seat Lift
New Design Curved Stair Lift Used for Disabled Person/Inclined Wheelchair Lift Seat Lift
New Design Curved Stair Lift Used for Disabled Person/Inclined Wheelchair Lift Seat Lift
New Design Curved Stair Lift Used for Disabled Person/Inclined Wheelchair Lift Seat Lift

New Design Curved Stair Lift Used for Disabled Person/Inclined Wheelchair Lift Seat Lift

Customization: Available
After-sales Service: 24 Hours Technical Support
Warranty: 12 Months
Send Inquiry

Product Description

i

Basic Information

Model NO.
X-500L
Driving Type
Hydraulic Type
Capacity
250kg
Persons
Customized
Speed
70mm/S
Control Mode
Customized
Computer Room
Without Computer Room
Elevator Door
Customized
Deceleration Device
With Deceleration Device
Lifting Height
1m-10m
Transport Package
Export Wooden Box
Origin
China
HS Code
8428909090
Production Capacity
10000 Sets Per Month
✓

Product Description

Inclined wheelchair lifts combine the best features of stairlifts and vertical platform lifts to provide transportation for wheelchairs and their users along the incline of an existing staircase.

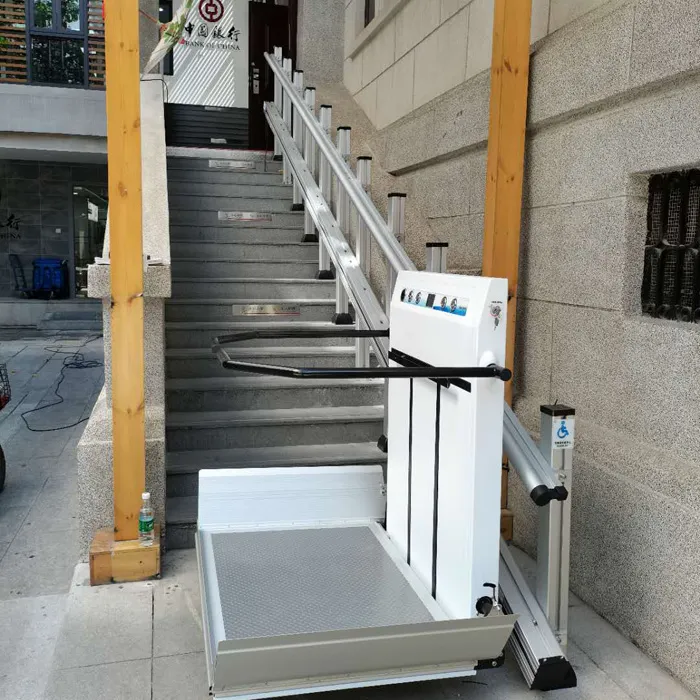

Inclined Wheelchair Lift Detail 1

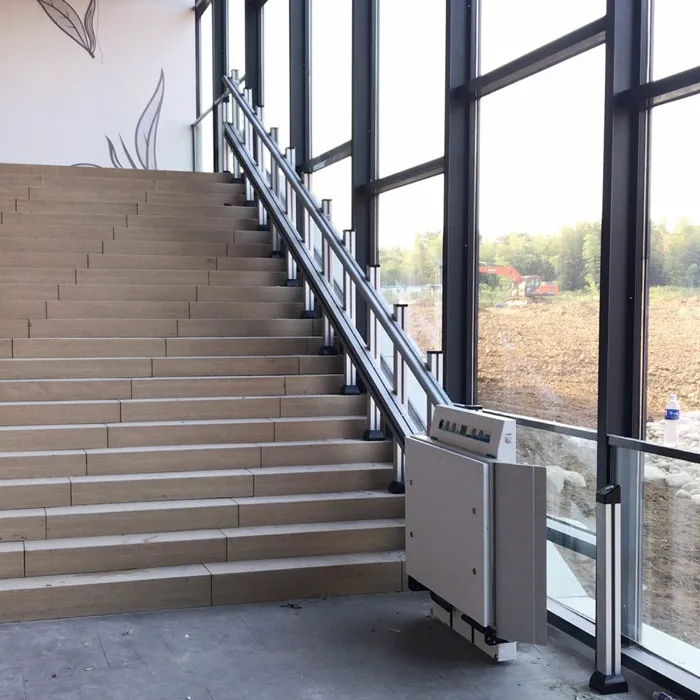

Inclined Wheelchair Lift Detail 2
These lifts can carry a passenger with a wheelchair up and down a single flight of straight stairs by traveling along a rail system mounted alongside the stairs. Suitable for home or commercial applications, they are ideal where an elevator or vertical platform lift cannot be easily accommodated.
⚙

Technical Parameters

Platform Technical Parameters:

Platform Load250kg Platform Weight≈150 kg
Operating Surface680mm * 60mm (L*H) Manned Size1118mm * 800mm
Side Flap Size885mm * 260mm Side Flap Angle-30° ~ +60°
Guardrail Height945mm Button Height1088mm
Device Thickness450mm±3mm Folding Thickness323mm±1mm
Internal VoltageUp to DC 25.2V Key Response<0.2S

Material and Craft:

Platform ShellWhite spray + matt film Platform PedalAluminum Alloy Profile
Operation PanelElectroplated acrylic Action ButtonStainless steel
Side Panel SealAluminum alloy Side Panel RodStainless steel mirror + rubber
GuardrailStainless steel wire drawing FloorAluminum alloy profiles

Power Technical Parameters:

Motor Power1 kW Speed Ratio≤80:1
Running Speed0.01~0.16 m/s Power Supply220V 50Hz
Control VoltageDC 24V, 5V Emergency Stop<0.5s

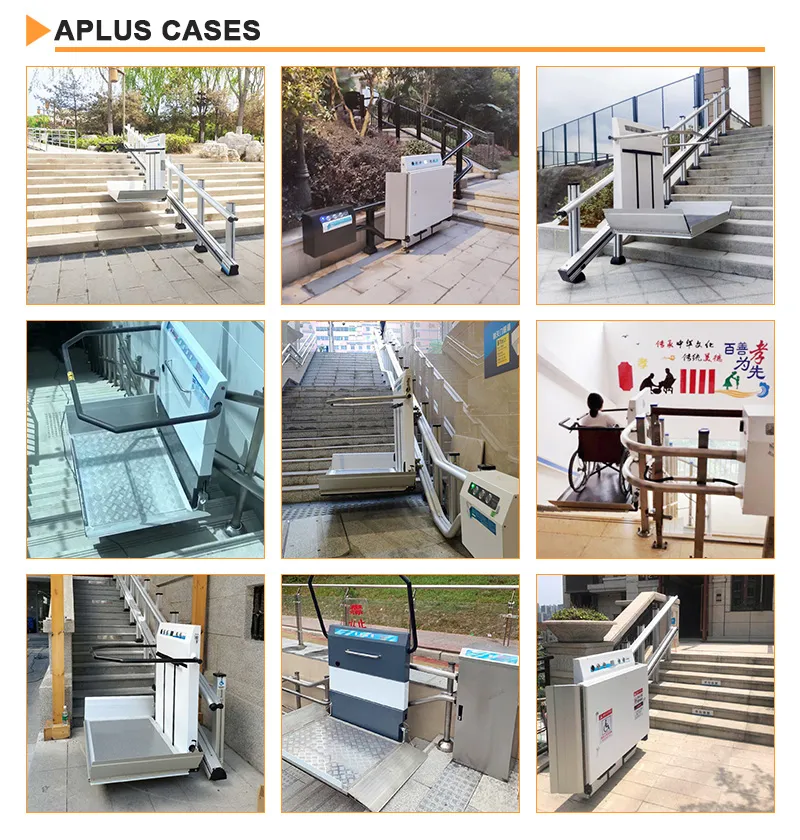

Wheelchair Lift Installation View
Wheelchair Lift Folding View
?

Frequently Asked Questions

What is the maximum load capacity of the inclined wheelchair lift?
The standard platform load capacity for the X-500L model is 250kg, making it suitable for most manual and power wheelchairs.
How much space does the lift take when not in use?
The platform features a folding design with a folded thickness of only 323mm±1mm, ensuring the staircase remains accessible to others.
What are the power requirements for installation?
The system operates on a standard 220V 50Hz power supply, with internal control voltages of DC 24V and 5V for safety.
What is the travel speed of the platform?
The lift moves at a safe and steady speed ranging from 0.01 to 0.16 m/s, providing a smooth transition for the user.
Is the lift equipped with safety features?
Yes, it includes automatic guardrails, side flaps with tiltable angles, and an emergency stop button with a response time of less than 0.5 seconds.
Can it be installed on any staircase?
It is designed for single flights of straight stairs and can be customized for lifting heights between 1m and 10m.
